Rovatti T3-100AE PTO Pump Set

Best price guaranteed ROVATTI PTO Pump, it can deliver 120 m3/h water flow at 73 m head!

Capacity
:
75-180 m³/h
Head
:
78-57 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
70 HP
PTO RPM X Gear Ratio
:
500 x 6.38
Inlet Range
:
100 mm (4")
Outlet Range
:
100 mm (4")
COMES WITH
:
Inlet/Outlet 100 mm (4") Fittings, Pressure Gauge, Butterfly Valve, PTO Drive Shaft, Hot Dip Galvanised 3-Point Linkage Frame
电话报价
制造商: Rovatti Pompe
商品库存单位(SKU): Rovatti-T3-100AE
缺货
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Rovatti single-stage T3-100AE centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3-Point linkage frame (hot dip galvanised), PTO drive shaft, 4" (100 mm) inlet/outlet fittings, pressure gauge, and butterfly valve. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 180 m3/h and heads up to 78 m.

All Rovatti PTO tractor pumps have a unique water circulation cooling system to ensure the gearbox remains cool at all times, even after prolonged operation. This allows greater safety and longer life of the gearing, even if the pump is working in challenging environmental conditions.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T3-100AE PTO Pump Technical Specifications



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
m³/h 75 90 105 120 150 180
l/min 1250 1500 1750 2000 2500 3000
l/s 20.8 25 29.1 33.3 41.6 50

T3-100AE

70 500 x 6.38 100 X 100 Head (m) 78 77 75.5 73 66.3 57.3



Rovatti T-TK Series PTO performance table

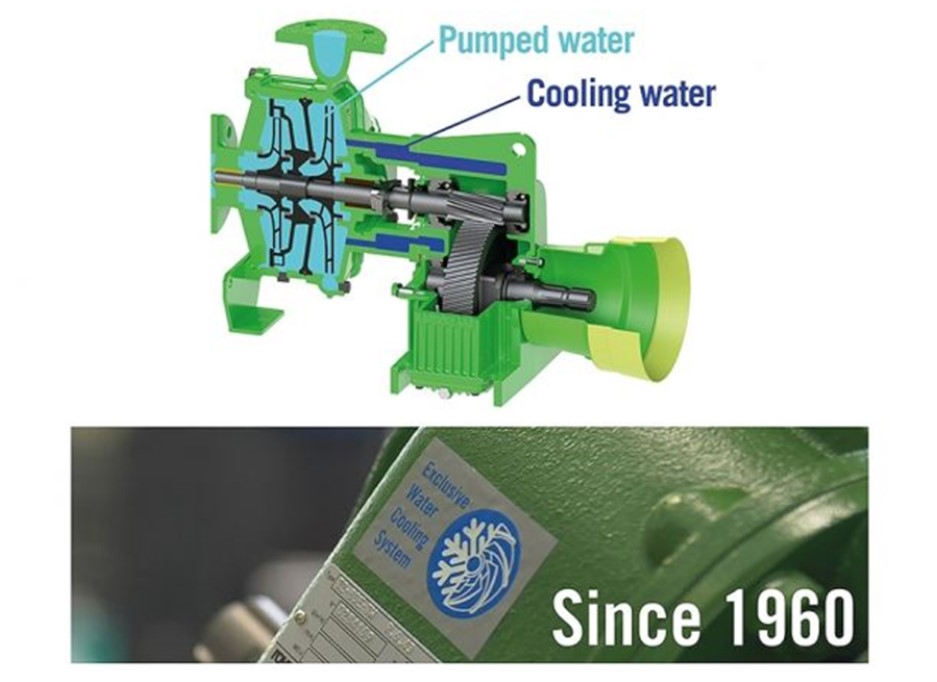

Rovatti PTO Pump Cooling System

Rovatti-pto-pump-trolleys

Rovatti single-stage T3-100AE centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Comes with a 3-Point linkage frame (hot dip galvanised), PTO drive shaft, 4" (100 mm) inlet/outlet fittings, pressure gauge, and butterfly valve. This pump is highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 180 m3/h and heads up to 78 m.

All Rovatti PTO tractor pumps have a unique water circulation cooling system to ensure the gearbox remains cool at all times, even after prolonged operation. This allows greater safety and longer life of the gearing, even if the pump is working in challenging environmental conditions.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T3-100AE PTO Pump Technical Specifications



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
m³/h 75 90 105 120 150 180
l/min 1250 1500 1750 2000 2500 3000
l/s 20.8 25 29.1 33.3 41.6 50

T3-100AE

70 500 x 6.38 100 X 100 Head (m) 78 77 75.5 73 66.3 57.3



Rovatti T-TK Series PTO performance table

Rovatti PTO Pump Cooling System

Rovatti-pto-pump-trolleys
