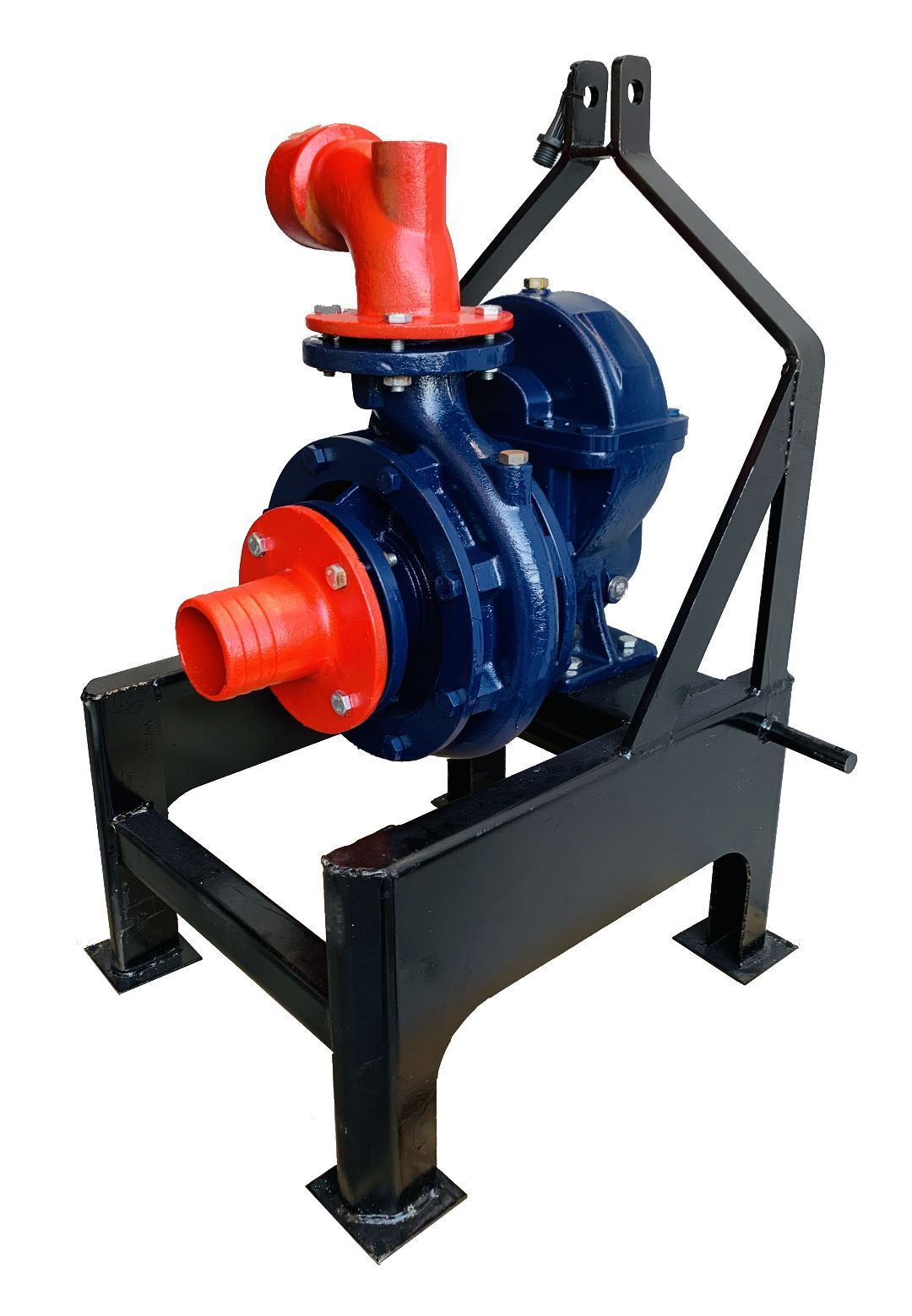

DuCaR DKT 125 PTO Pump

SKU: DKT125-PUMP
Availability: In stock
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

Every farmer should have one DuCaR PTO driven irrigation pump. 125 m³/h @75 m head. Long lasting, reliable, efficient PTO pump set.

Capacity
:
40-195 m³/h
Head
:
40-82 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
50 HP (37 kW)
PTO RPM X Gear Ratio
:
545 x 6.43
Inlet
:
125 mm (5")
Outlet
:
125 mm (5")
FREE PARTS
:
Inlet/Outlet Flange Fittings
3 Point Linkage Carry Frame
PTO Drive Shaft
US $3,454.00
US $3,917.00

DuCaR PTO Pumps are an excellent choice for high performance sprinkler irrigation. These pumps are quick and easy to setup to begin irrigating in minutes! If you have a tractor that you want to utilize as the power source, PTO Pumps are a great choice and are capable of large amount of water flow output with high pressure performance. These pumps are completely cast iron construction, reliable and efficient that you can use long years.

Every farmer should have one of the DuCaR tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation and so much more.

The DuCaR DKT 125 Pump is a great match for a tractor up to 65 HP. It will allow you to run 2 of DuCaR Jet 50 Sprinklers with 50m radius or 1 unit of the biggest sprinkler in the market, DuCaR Jet 200 Sprinkler with 70m radius.

FEATURES

  • Each unit is supplied with the 3-point linkage frame, inlet/outlet flanged fittings and a PTO shaft.
  • The mechanical shaft seal, heavy duty impeller and pump liner ensuring many years of reliable operation.
Technical Specifications

Pump Type m³/h 0 40 60 80 100 120 140 160 180 195   Power
  l/s 0 11.1 16.7 22.2 27.8 33.3 37.5 44.4 50 54.2 HP

DKT-125

Total Height HM (mss) 82 81.5 81 80 78 75 71 64 55 45 50

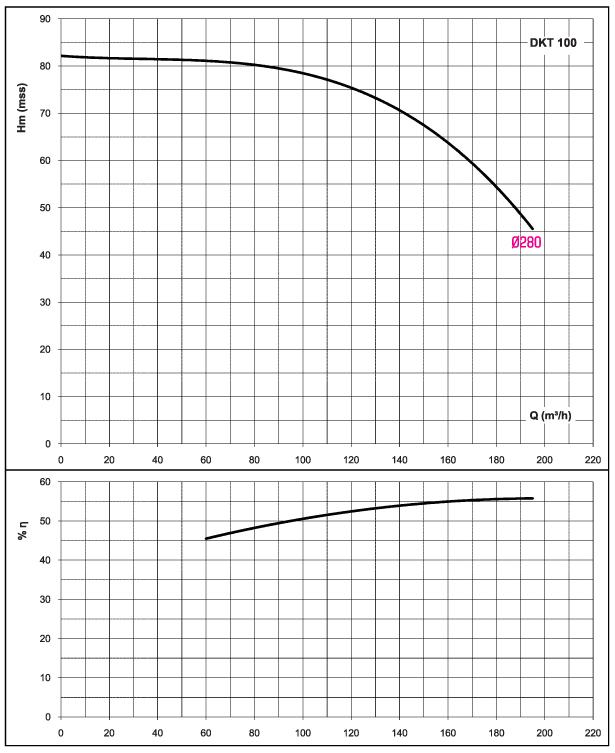

 DuCaR PTO dkt100 performance table



 pto pump parts



PARTS LIST
NO PART NAME NO PART NAME
26 DRAIN PLUG 13 OIL THROWER
25 KEY 12 PINIDN
24 KEY 11 MAIN GEAR
23 BALL BEARING 10 GEAR SHAFT
22 BALL BEARING 9 GEAR BOX
21 BALL BEARING 8 KEY
20 BALL BEARING 7 WEAR RING
19 SHAFT END NUT 6 SHAFT END NUT
18 OIL SEAL 5 MECHANICAL SEAL
17 BEARING COVER 4 SUCTION NOZZLE
16 BEARING COVER 3 SHAFT
15 OIL SEAL 2 IMPELLER
14 BEARING COVER 1 VOLUTE CASING

DuCaR PTO Pumps are an excellent choice for high performance sprinkler irrigation. These pumps are quick and easy to setup to begin irrigating in minutes! If you have a tractor that you want to utilize as the power source, PTO Pumps are a great choice and are capable of large amount of water flow output with high pressure performance. These pumps are completely cast iron construction, reliable and efficient that you can use long years.

Every farmer should have one of the DuCaR tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation and so much more.

The DuCaR DKT 125 Pump is a great match for a tractor up to 65 HP. It will allow you to run 2 of DuCaR Jet 50 Sprinklers with 50m radius or 1 unit of the biggest sprinkler in the market, DuCaR Jet 200 Sprinkler with 70m radius.

FEATURES

  • Each unit is supplied with the 3-point linkage frame, inlet/outlet flanged fittings and a PTO shaft.
  • The mechanical shaft seal, heavy duty impeller and pump liner ensuring many years of reliable operation.
Technical Specifications

Pump Type m³/h 0 40 60 80 100 120 140 160 180 195   Power
  l/s 0 11.1 16.7 22.2 27.8 33.3 37.5 44.4 50 54.2 HP

DKT-125

Total Height HM (mss) 82 81.5 81 80 78 75 71 64 55 45 50



 DuCaR PTO dkt100 performance table



 pto pump parts



PARTS LIST
NO PART NAME NO PART NAME
26 DRAIN PLUG 13 OIL THROWER
25 KEY 12 PINIDN
24 KEY 11 MAIN GEAR
23 BALL BEARING 10 GEAR SHAFT
22 BALL BEARING 9 GEAR BOX
21 BALL BEARING 8 KEY
20 BALL BEARING 7 WEAR RING
19 SHAFT END NUT 6 SHAFT END NUT
18 OIL SEAL 5 MECHANICAL SEAL
17 BEARING COVER 4 SUCTION NOZZLE
16 BEARING COVER 3 SHAFT
15 OIL SEAL 2 IMPELLER
14 BEARING COVER 1 VOLUTE CASING
