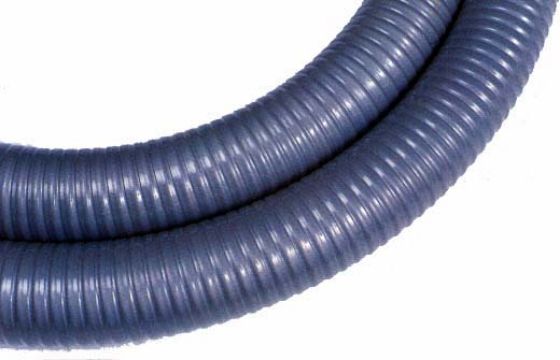

Powaflex Grey PVC Suction Hose

Flexible and strong for suction and delivery of water slurries, waste, chemicals, agricultural, construction and industrial uses.


Inside Diameter Range
:
1" (25 mm) - 10" (152 mm)

Bending Radius (mm)
:
125 - 810mm

Working Pressure Range
:
50-90 psi
¥37.00
商品库存单位(SKU): Powaflex Grey PVC Suction Hose
交货日期 3-5 business days (PLEASE CONTACT US FOR THE SHIPPING COST)
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

该产品具有最小数量 5
+ -

POWAFLEX GREY GENERAL PURPOSE PVC SUCTION HOSE

General purpose heavy duty PVC suction/delivery hose, grey with white spiral. Flexible and strong for suction and delivery of water slurries, waste, chemicals, agricultural, construction and industrial uses. Lightly corrugated on the outside, it is reinforced with a continuous high impact PVC helix. Resistant to crushing and abrasion.

  • High impact PVC helix reinforcement
  • Resistant to crushing and abrasion
  • UV Stabilised & Weather resistant
  • Smooth bore
  • Excellent flow characteristics
  • Suitable for liquid, powder & granular materials

Working Temperature: -10ºC to 60 ºC

Technical Specifications

Inside diameter
mm
Inside diameter
inches

Outside diameter mm

Working Pressure
PSI
VAC rating mm/hg 20ºC Bending radius mm Standard Coil
25 1" 32.4 90 900 125 30 m
32 1 1/4” 40.4 90 900 160 30 m
38 46.4 75 900 234 30 m
45 2” 52.0 75 900 239 30 m
50 2 1/2″ 59.0 75 900 243 30 m
63 3” 73.0 65 800 292 30 m
76 4″ 87.0 65 800 342 30 m
102 6” 114.0 45 800 450 30 m
125 8″ 140.0 45 800 575 30 m
152 10” 160.0 50 800 810 30 m

POWAFLEX GREY GENERAL PURPOSE PVC SUCTION HOSE

General purpose heavy duty PVC suction/delivery hose, grey with white spiral. Flexible and strong for suction and delivery of water slurries, waste, chemicals, agricultural, construction and industrial uses. Lightly corrugated on the outside, it is reinforced with a continuous high impact PVC helix. Resistant to crushing and abrasion.

  • High impact PVC helix reinforcement
  • Resistant to crushing and abrasion
  • UV Stabilised & Weather resistant
  • Smooth bore
  • Excellent flow characteristics
  • Suitable for liquid, powder & granular materials

Working Temperature: -10ºC to 60 ºC
