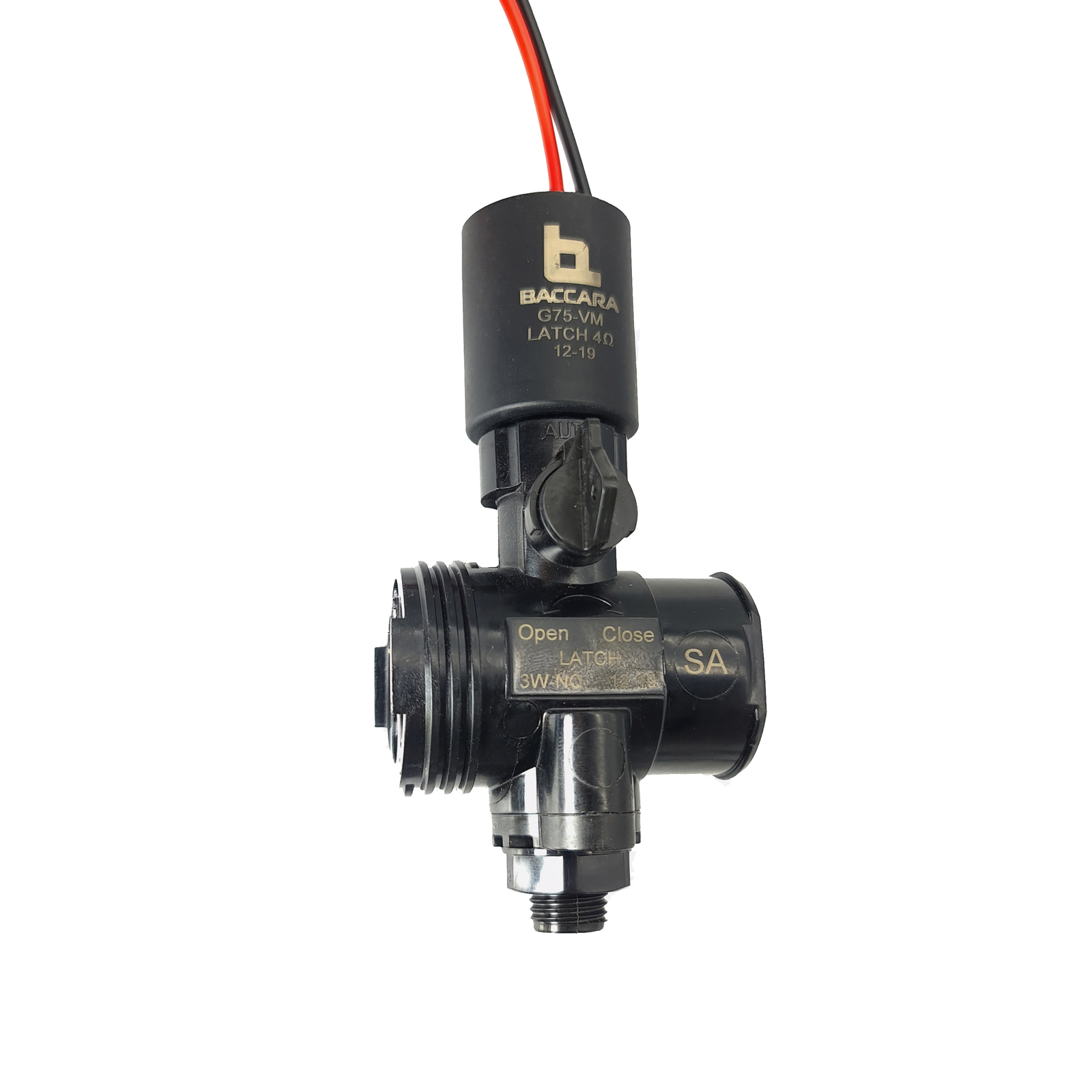

G75-VSA | Standalone Irrigation Solenoid Valve

Size
:
1/8" BSP
Function
:
3 Way, NC, NO
Valve Operation
:
Direct Operated
Body Material
:
Plastic
Seal
:
EPDM
Pressure Range
:
0 - 8 bar
Media
:
Air, water
¥573.00
制造商: Baccara
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
+ -

Technical Data

Function 3 Way NC, NO
Ports size 1/8” BSPT & NPT
Orifice size 1 8 mm
Pressure range 0 to 8 bar
Switching time 30-50 ms
Temperature range Fluid : 0ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic (Reinforced Nylon)
Main Valve:
Plastic (Reinforced Nylon & POM)
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Mounting Lock nut on the bottom COM port
Manual override 3 positions latch : Auto, Close, Open
Media Air, water
Coil voltage Latch
Standard protection class IP66

* Can only be operated with supplied coil

PORT NO NC
1 Exhaust Pressure
3 Pressure Exhaust
COM Out Out

Coil resistance vs input voltage range

Resistance [ Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21


G75-VSA-Standalone-Irrigation-Solenoid-Valve-dimensions

G75-VSA-Standalone-Irrigation-Solenoid-Valve

G75-VSA-Standalone-Irrigation-Solenoid-Valve-plumbing-diagram
