G75-VM Modular Manifold

Size
:
1/8" BSP
Function
:
3 Way, NC, NO
Valve Operation
:
Direct Operated
Body Material
:
Plastic
Seal
:
EPDM
Pressure Range
:
0 - 8 bar
Media
:
Air, water
¥1,152.00
制造商: Baccara
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
+ -

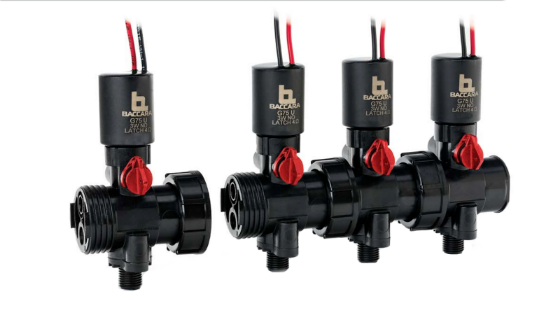

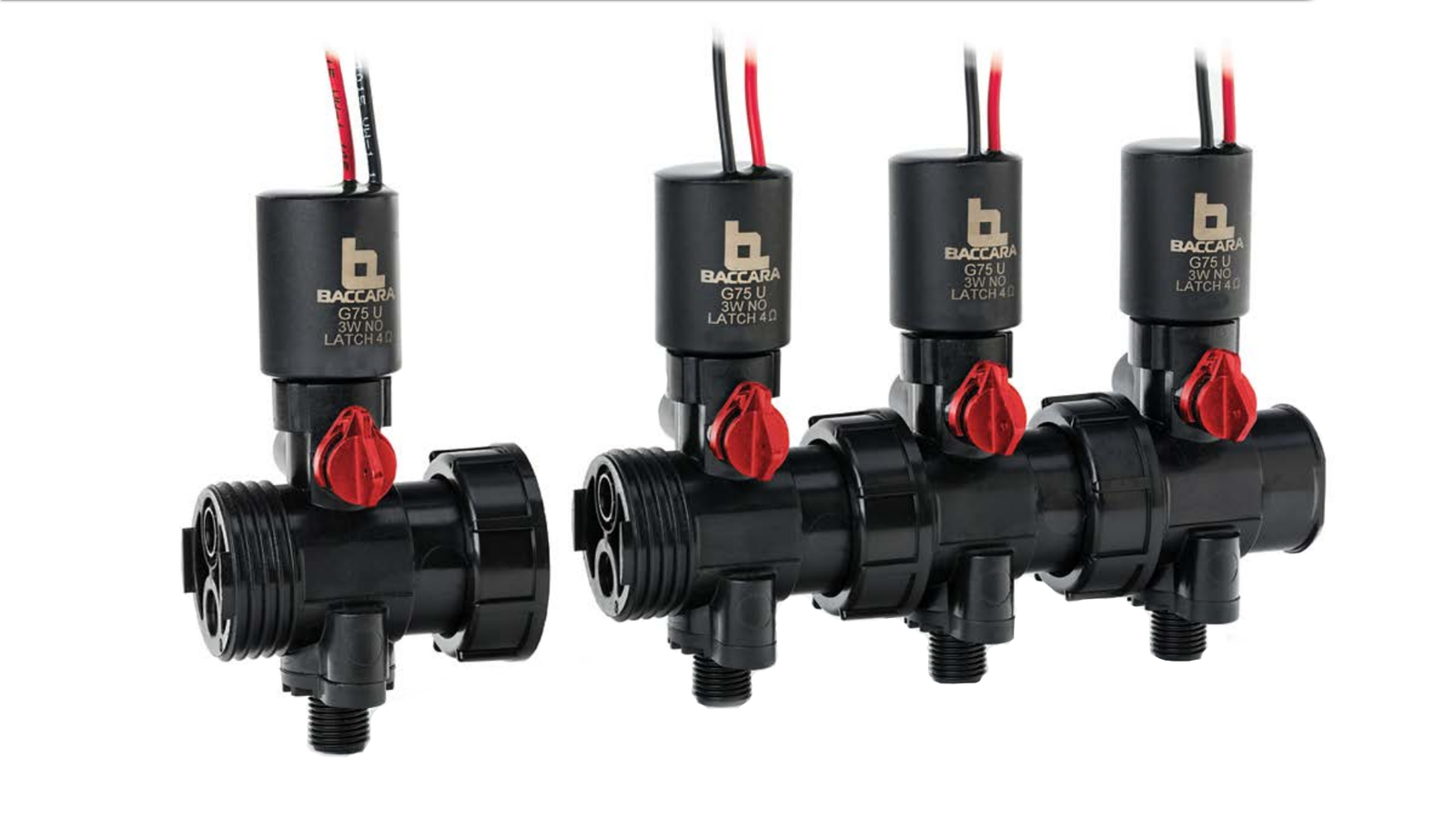

A complete integrated manifold and mounting solution.

G75-VM Modular Manifold is a complete integrated manifold and mounting solution for irrigation application, in which up to 10 stations can be screwed together to create extended manifolds.

Baccara's G75-VM Modular Manifold Typical Applications:

  • Filtration
  • Irrigation
  • Water Treatment

Technical Data

Function 3 Way NC, NO
Orifice size 1.8 mm
Pressure range 0 to 8 bar
Temperature range Fluid : 0ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic (Reinforced Nylon)
Main Valve:
Plastic (Reinforced Nylon & POM)
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Mounting With bracket
Modular connection type Thread type connection
Modular connection assembly
recommendation
• Manually tighten one station to another
• Using tools and/or excessive torques may
lead to irreversible damage
Manual override 3 positions latch : Auto, Close, Open
Media Air, water
Coil voltage Latch
Standard protection class IP66

* Can only be operated with supplied coil

PORT NO NC
1 Exhaust Pressure
3 Pressure Exhaust
COM Out Out

Coil resistance vs input voltage range

Resistance [] Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

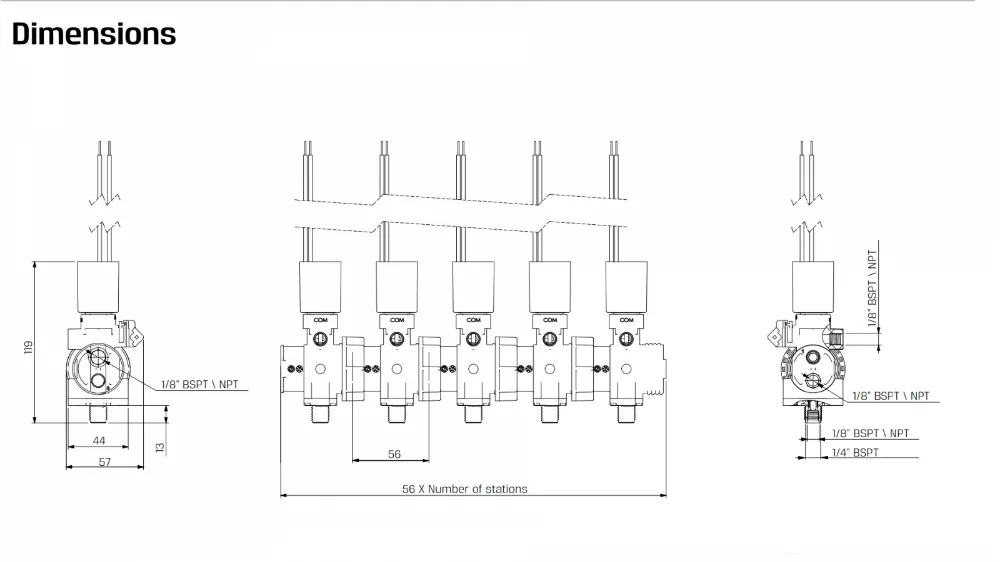

g75-vm-modular-manifold-dimension

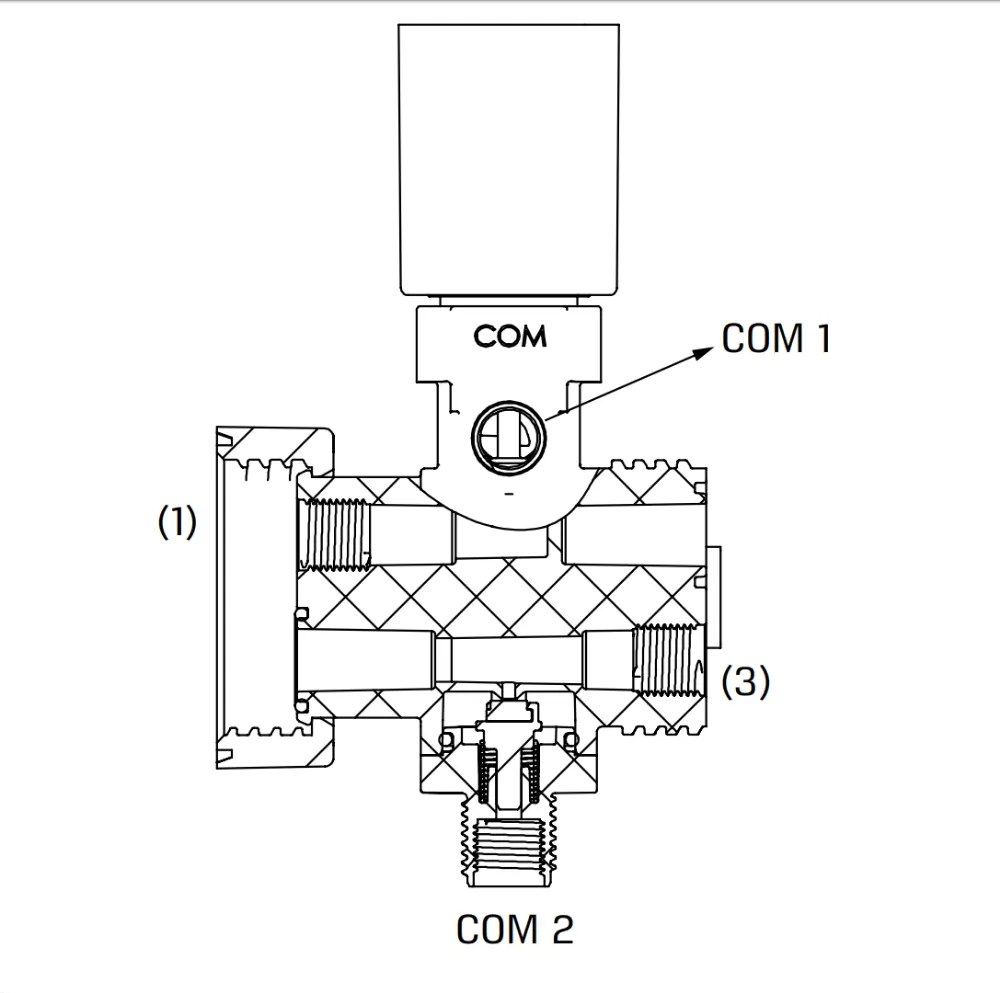

G75-VM Modular Manifold Plumbing Diagram

G75-VM Modular Manifold-plumbing-diagram

A complete integrated manifold and mounting solution.

G75-VM Modular Manifold is a complete integrated manifold and mounting solution for irrigation application, in which up to 10 stations can be screwed together to create extended manifolds.

Baccara's G75-VM Modular Manifold Typical Applications:

  • Filtration
  • Irrigation
  • Water Treatment

Technical Data

Function 3 Way NC, NO
Orifice size 1.8 mm
Pressure range 0 to 8 bar
Temperature range Fluid : 0ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic (Reinforced Nylon)
Main Valve:
Plastic (Reinforced Nylon & POM)
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM
Mounting With bracket
Modular connection type Thread type connection
Modular connection assembly
recommendation
• Manually tighten one station to another
• Using tools and/or excessive torques may
lead to irreversible damage
Manual override 3 positions latch : Auto, Close, Open
Media Air, water
Coil voltage Latch
Standard protection class IP66

* Can only be operated with supplied coil

PORT NO NC
1 Exhaust Pressure
3 Pressure Exhaust
COM Out Out

Coil resistance vs input voltage range

Resistance [] Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

g75-vm-modular-manifold-dimension

G75-VM Modular Manifold Plumbing Diagram

G75-VM Modular Manifold-plumbing-diagram
