G75-M | Manifold

争取评论头条

Size

1/8" BSP

Function

3 Way NO

Valve Operation

Direct Operated

Body Material

Plastic

Seal

EPDM

Pressure Range

please refer to technical info

Media

Air, water, oil

¥769.00

制造商: Baccara

Shipping

交货日期 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Stations: *

数量:

+ -

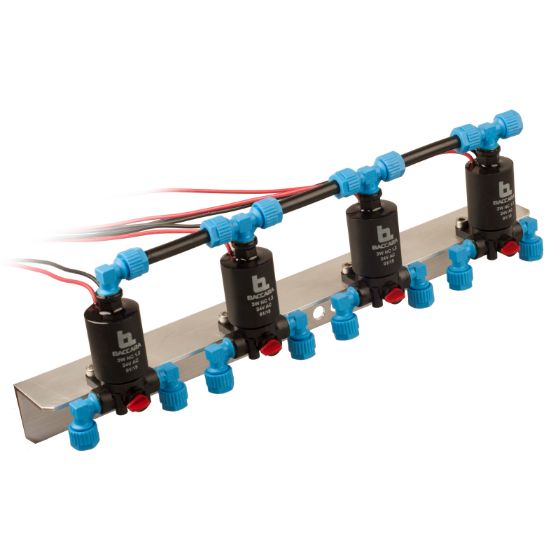

Manifold with 2, 4 or 6 x G75-A Plastic 1/8" BSP 3 Way NO 24V AC Orifice: 1.6mm with Manual Override

Technical Data

Function	3 Way NO
Ports size	1/8"
Orifice size	See table
Pressure range	See table
Temperature range	Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC
Materials in contact with media	Manual override: Reinforced Nylon Main Valve: Brass or Reinforced Nylon Solenoid Operator: Stainless Steel AISI 300 & 400 series Seals: EPDM
Coil voltage	• Voltage and power consumption - see table
Standard protection class	IP66

* Available with brass adaptor upon request

Max. Pressure (bar) Table

Function	Orifice (mm)	AC	DC	DC Latch
3W NO	1 0	16	16	16
	1 2	12	12	12
	1 6	10	10	10

Voltage and Current Table

Solenoid	Voltage	Inrush [A]	Holding [A]
2W 50 Hz	+10% n-20%	03	019
2W 60 Hz		02	014
3W 50/60 Hz *		0125	0125
DC		45W

* Except 24V AC without Diode

Voltage and Power Consumption

	AC (W)	DC (W)
	50 Hz	DC (W)
V	2	45
24	•	•

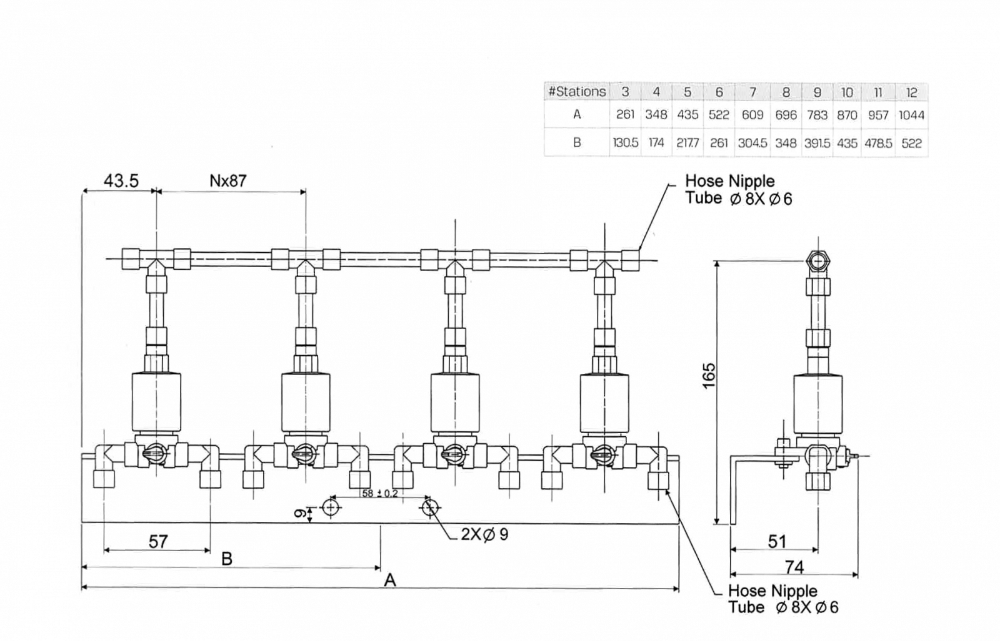

g75-m-manifold-dimension

G75-M Manifold Plumbing Diagram

G75-M Manifold-plumbing-diagram
