GALIT | High Flow Electro Hydraulic Relay Irrigation Solenoid Valve

Size
:
1/8" BSP
Function
:
3 Way, NC, NO
Valve Operation
:
Pilot Operated
Body Material
:
Plastic
Seal
:
NBR
Pressure Range
:
1 - 10 bar
Media
:
Air, water
¥729.00
制造商: Baccara
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
+ -

Technical Data

Function 3 Way NC, NO
Ports size 1/8" BSP & NPT
Orifice size 5mm
Pressure range 1 to 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel 300 & 400 series
Seals:
NBR
Spring:
Stainless Steel AISI 300 series
Manual override Manual override with 3 positions :
•
AUTO - for automatic operation (valve is
open when solenoid is energized)
•
MANUAL - valve is kept open
•
CLOSE - valve is kept closed
Solenoid Assembled with 3W NO 1.2mm G75 operator
Coil voltage • Voltage and power consumption - see table
Standard protection class IP66



Voltage and Current Table

Solenoid Voltage  Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%

V
0.3 0.19
2W 60 Hz 0.2 0.14
3W 50/60 Hz * 0.125 0.125
DC 4.5W

* Except 24V AC without Diode

Voltage and Power Consumption

  AC (W) DC (W)
50 Hz
V 2 4.5
12

•  •
24 •  •

• Available options

Coil resistance vs input voltage range

Resistance [] Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

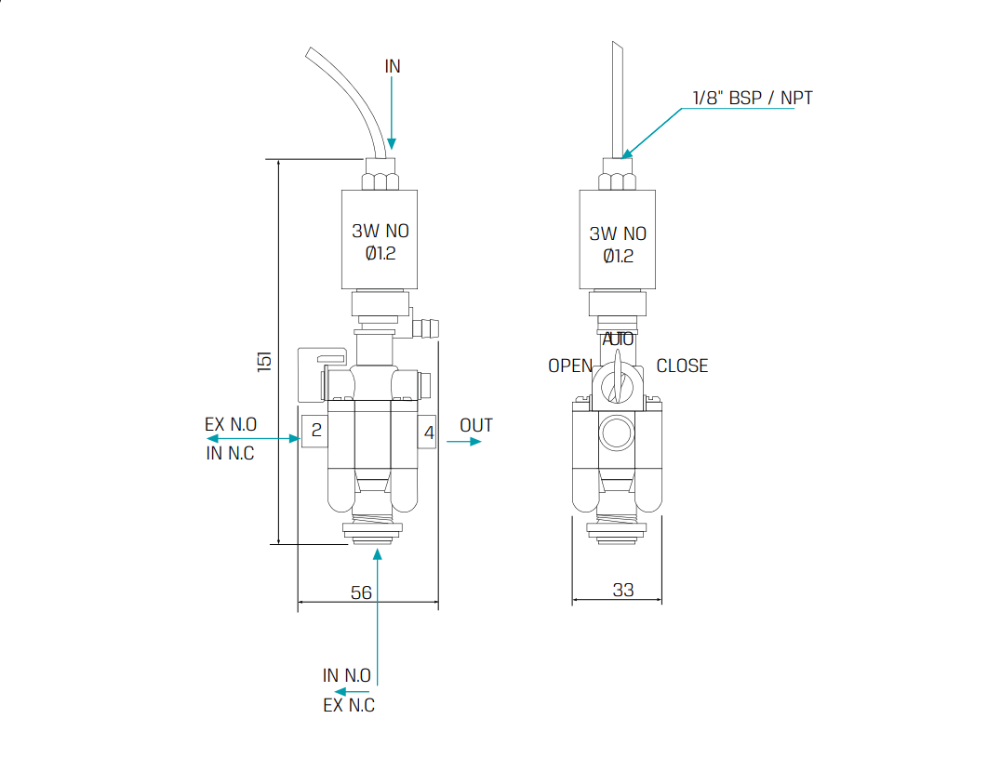

Galit-High-Flow-Electric-Hydraulic-Relay-Irrigation-Solenoid-Valve-Dimensions
