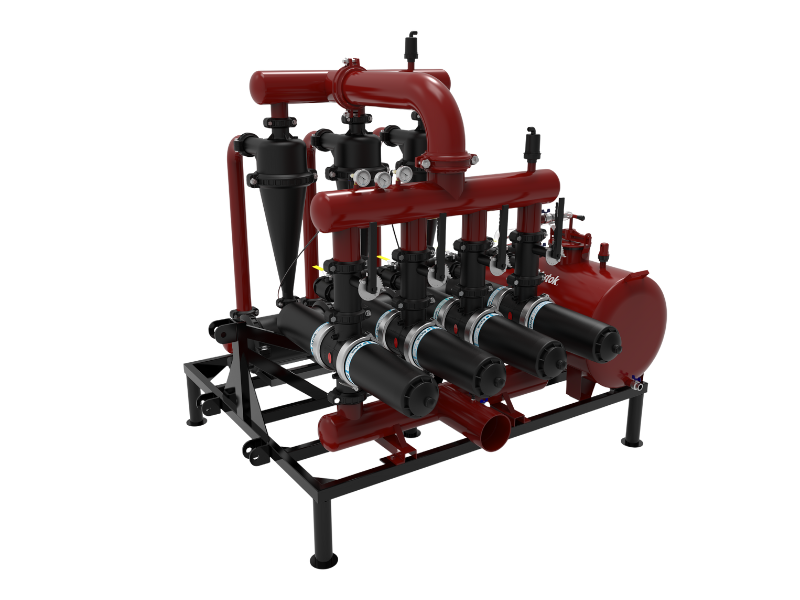

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

Ready built on chassis system, three-point linkage frame.


Body Material
:
PA6GFR30

Disc Material
:
PP

Maximum Working Pressure
:
6 Bar (87 PSI)

Minimum Working Pressure
:
1 Bar (15 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Pressure Differential

Backwash Controlling Unit
:
Manual

Filtration Degree
:
20-50-100-130 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
电话报价
制造商: Aytok Filters
商品库存单位(SKU): S422-523-533-634-644
交货日期 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 6 Bar (87 PSI)
  • Minimum Working Pressure: 1 Bar (15 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Pressure Differential
  • Back Flush Controlling Unit : Manual
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*
  • Ready built on chassis system, three-point linkage frame



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
S422 4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER 70-100
S523 5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 100-120
S533 5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 120-150
S634 6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 150-180
S644 6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 180-220



Aytok filtration system

Aytok Portable Manual Double Plastic Filter System with Hydrocyclone Pre-Filter and Fertilizer Tank

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 6 Bar (87 PSI)
  • Minimum Working Pressure: 1 Bar (15 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Pressure Differential
  • Back Flush Controlling Unit : Manual
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*
  • Ready built on chassis system, three-point linkage frame



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
S422 4" 2X3" PLASTIC HYDROCYCLONE + 2X4" DOUBLE PLASTIC FILTER 70-100
S523 5" 2X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 100-120
S533 5" 3X3" PLASTIC HYDROCYCLONE + 3X4" DOUBLE PLASTIC FILTER 120-150
S634 6" 3X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 150-180
S644 6" 4X3" PLASTIC HYDROCYCLONE + 4X4" DOUBLE PLASTIC FILTER 180-220



Aytok filtration system
