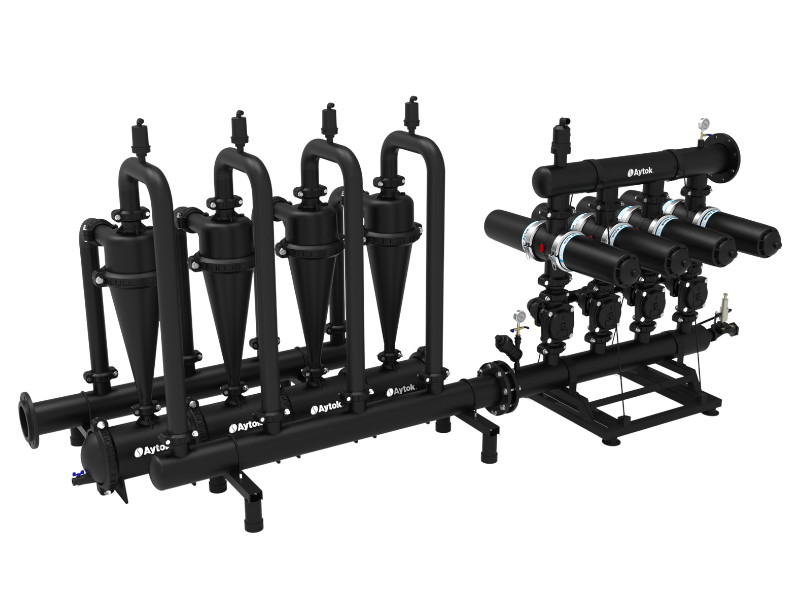

Aytok Plastic Automatic Filter Systems With Hydrocyclone

争取评论头条

Plastic Automatic Filter Systems With Hydrocyclone

Body Material

PA6GFR30

Disc Material

Maximum Working Pressure

6 Bar (87 PSI)

Minimum Working Pressure

2 Bar (29 PSI)

Maximum Working Temperature

60 °C (140 °F)

Backwash Operation Criteria

Time interval or Pressure Differential

Backwash Controlling Unit

Electronic (AC/DC) Control

Filtration Degree

20-50-100-130 micron (µ)

Painting

Epoxy Polyester, Electrostatic Powder Coating

Made in

Turkey

电话报价

制造商: Aytok Filters

商品库存单位（SKU）: 3xP2030+A534

Shipping

交货日期 2 to 3 weeks

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Filter Inlet/Outlet Size: *

3x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 5"3X3"PLS.HYDROCYCLONE
4x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 6"4X3"PLS.HYDROCYCLONE
3X6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"5X3"PLS.HYDROCYCLONE
4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"6X3"PLS.HYDROCYCLONE
4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"7X3"PLS.HYDROCYCLONE
5x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"9X3"PLS.HYDROCYCLONE
6x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"10X3"PLS.HYDROCYCLONE
7x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 12"12X3"PLS.HYDROCYCLONE

数量:

+ -

Aytok Plastic Automatic Filter Systems With Hydrocyclone

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	System	CAPACITY (m³/h)
3xP2030+A534	3x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 5"3X3"PLS.HYDROCYCLONE	100- 140
4xP2030+A644	4x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 6"4X3"PLS.HYDROCYCLONE	140 - 200
5xP2030+A836	3X6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"5X3"PLS.HYDROCYCLONE	200 - 280
6xP2030+A846	4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"6X3"PLS.HYDROCYCLONE	280 - 330
7xP2030+A1046	4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"7X3"PLS.HYDROCYCLONE	330 - 380
9xP2030+A1056	5x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"9X3"PLS.HYDROCYCLONE	380 - 480
10xP2030+A1066	6x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"10X3"PLS.HYDROCYCLONE	480 - 570
12xP2030+A1276	7x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 12"12X3"PLS.HYDROCYCLONE	570 -670

Aytok filtration system

Aytok Plastic Automatic Filter Systems With Hydrocyclone

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 6 Bar (87 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	System	CAPACITY (m³/h)
3xP2030+A534	3x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 5"3X3"PLS.HYDROCYCLONE	100- 140
4xP2030+A644	4x4"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 6"4X3"PLS.HYDROCYCLONE	140 - 200
5xP2030+A836	3X6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"5X3"PLS.HYDROCYCLONE	200 - 280
6xP2030+A846	4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 8"6X3"PLS.HYDROCYCLONE	280 - 330
7xP2030+A1046	4x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"7X3"PLS.HYDROCYCLONE	330 - 380
9xP2030+A1056	5x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"9X3"PLS.HYDROCYCLONE	380 - 480
10xP2030+A1066	6x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 10"10X3"PLS.HYDROCYCLONE	480 - 570
12xP2030+A1276	7x6"DOUBLE PLASTIC DISC FILTER SYSTEM WITH 12"12X3"PLS.HYDROCYCLONE	570 -670

Aytok filtration system
