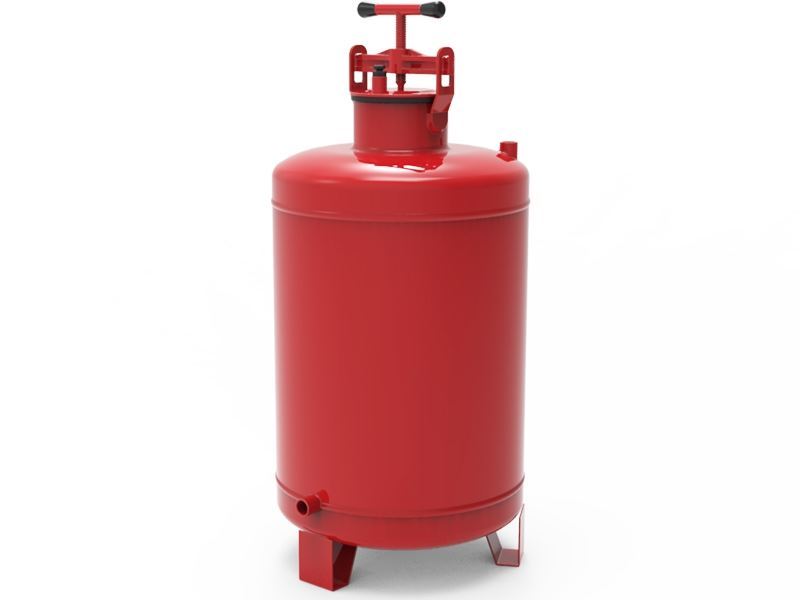

Vertical Fertilizer Tank

AYTOK VERTICAL FERTILIZER TANK

APPLICATIONS

• Chemical fertilization applications by pressure agricultural irrigation systems
• Pesticide administration by pressure agricultural irrigation systems

FEATURES

• It provides ease of use and of maintenance due to simple structure.
• Pre-painting phosphorization is performed for maximum resistance against corrosion and chemical solution.
• It has long economic life based on Epoxy – Polyester coating.
• It operates based on line pressure of the system.

Aytok vertical fertilizer tanks are developed for chemical fertilizer or pesticide applications directly to root region of the plant using irrigation water of drip or sprinkler irrigation systems. It ensures very practical and convenient fertilizing and pesticide administration in irrigation systems due to simple structure and ease of use. Different models with varying capacities are available including horizontal and vertical types depending on different needs of present irrigation system. Operating based on pressure difference principle in the irrigation systems, Aytok vertical fertilizer tanks will operate long years without requiring maintenance due to resistant construction.

OPERATING PRINCIPLE Armas 5000 series fertilizing tank is connected parallel to main pipe of irrigation system using elastic hoses via by-pass method. Irrigation water enters into the tank containing soluble chemical from the inlet hose of fertilizer tank connected to the line. Due to pressure gradient created using a valve or pressure reducer assembled on the irrigation line, chemical fertilizer is solved and it is blended within the tank. Solved chemical fertilizer is supplied to the root region of the plant using irrigation water.

Download Product Catalogue

	Part No	Part Name	Material
	1	Body	ST37-2 (DIN 17100)
	2	Lid Seal	NBR/EPDM
	3	Lod	DIN EN 10131
	4	Arm	STEEL (DIN 2458)



Available models and recommended flow rates



	Model	Capacity		ØD		G,C,T		H		H1		Weight
		litre	galon	inch	mm	inch	mm	inch	mm	inch	mm	kg	lbs
	V1060	60	15	15"	381	1/2"	12	13"	330	31"	790	20	44
	V1100	100	26	18"	457	3/4"	19	19.6"	500	37.7"	960	30	66
	V1200	200	52	24"	609	1"	25	23.6"	600	41.7"	1060	56	123



Tank Injection Rate



	Pressure Difference	Injection Rate 3/4" inlet - 3/4" outlet	Injection Rate ½" inlet- ½" outlet	Injection Rate 1" inlet- 1" outlet
	0.9 bar	1400 l/h	3980 l/h	5120 l/h
	0.8 bar	1340 l/h	3750 l/h	4830 l/h
	0.7 bar	1250 l/h	3510 l/h	4520 l/h
	0.6 bar	1160 l/h	3250 l/h	4180 l/h
	0.5 bar	1050 l/h	2970 l/h	3800 l/h
	0.4 bar	940 l/h	2650 l/h	3420 l/h
	0.3 bar	820 l/h	2300 l/h	2950 l/h
	0.2 bar	670 l/h	1880 l/h	2400 l/h
	0.1 bar	450 l/h	1320 l/h	1700 l/h
