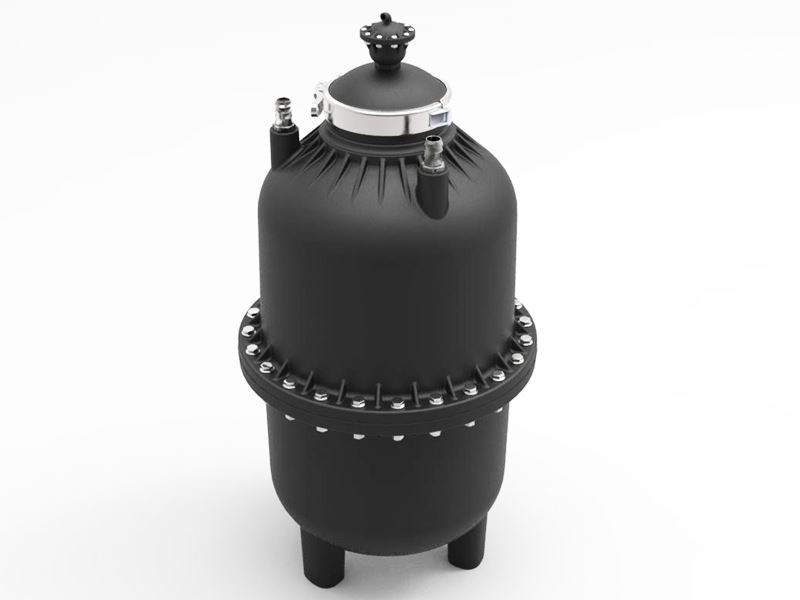

Glass Fiber Reinforced Fertilizer Tank

SKU: Aytok-P1100
Delivery date: 2-3 business days
Manufacturer: Aytok Filters
Body Material : Polyamide - Nylon 6 - 30% Glass Fiber Reinforced
Operating Pressure : 6 bar (88 psi)
Working Temperature : -10° C to 60° C
US $309.00

AYTOK GLASS FIBER REINFORCED FERTILIZER TANK

APPLICATIONS

  • Chemical fertilization applications by pressure agricultural irrigation systems
  • Pesticide administration by pressure agricultural irrigation systems

FEATURES

  • It provides ease of use and of maintenance due to simple structure.
  • It has long economic life.
  • It operates based on line pressure of the system.

Aytok P1100 series fertilizer tanks are developed for chemical fertilizer or pesticide applications directly to root region of the plant using irrigation water of drip or sprinkler irrigation systems. It ensures very practical and convenient fertilizing and pesticide administration in irrigation systems due to simple structure and ease of use. Different models with varying capacities are available including horizontal and vertical types depending on different needs of present irrigation system. Operating based on pressure difference principle in the irrigation systems, Aytok fertilizer tanks will operate long years without requiring maintenance due to resistant construction.

Armas fertilizer tank operating principle

OPERATING PRINCIPLE

Aytok P1100 series fertilizing tank is connected parallel to main pipe of irrigation system using elastic hoses via by-pass method. Irrigation water enters into the tank containing soluble chemical from the inlet hose of fertilizer tank connected to the line. Due to pressure gradient created using a valve or pressure reducer assembled on the irrigation line, chemical fertilizer is solved and it is blended within the tank. Solved chemical fertilizer is supplied to the root region of the plant using irrigation water.



Available models and recommended flow rates

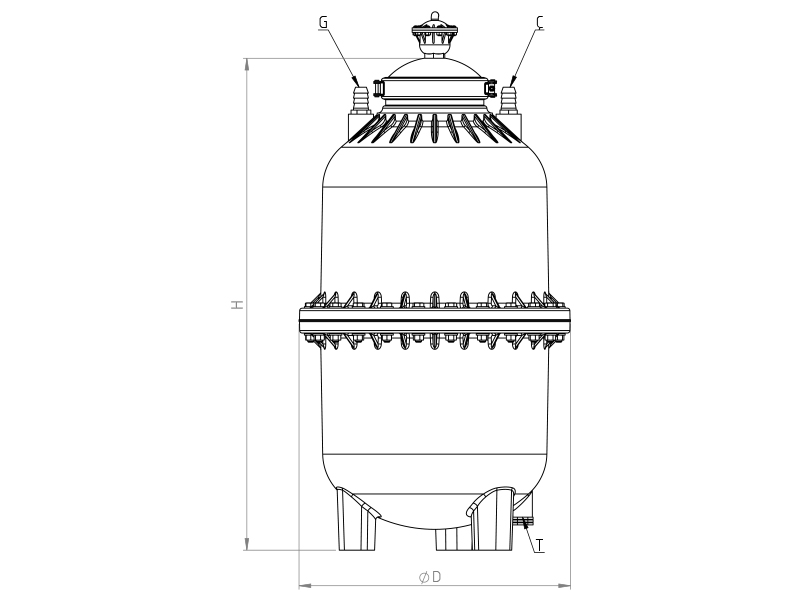

Plastic-fertilizer-technical-drawing Model Capacity ØD G C T H Weight
 litregaloninchmminchmminchmminchmminchmmkglbs
P1100 100 22 21" 533 1" 25 1" 25 3/4" 19 38" 965 24 53



Tank Injection Rate

Armas ferilizer tank injection rate Pressure Difference Injection Rate 3/4" inlet - 3/4" outlet Injection Rate ½" inlet- ½" outlet Injection Rate 1" inlet- 1" outlet
0.9 bar 1400 l/h 3980 l/h 5120 l/h
0.8 bar 1340 l/h 3750 l/h 4830 l/h
0.7 bar 1250 l/h 3510 l/h 4520 l/h
0.6 bar 1160 l/h 3250 l/h 4180 l/h
0.5 bar 1050 l/h 2970 l/h 3800 l/h
0.4 bar 940 l/h 2650 l/h 3420 l/h
0.3 bar 820 l/h 2300 l/h 2950 l/h
0.2 bar 670 l/h 1880 l/h 2400 l/h
0.1 bar 450 l/h 1320 l/h 1700 l/h

AYTOK GLASS FIBER REINFORCED FERTILIZER TANK

APPLICATIONS

  • Chemical fertilization applications by pressure agricultural irrigation systems
  • Pesticide administration by pressure agricultural irrigation systems

FEATURES

  • It provides ease of use and of maintenance due to simple structure.
  • It has long economic life.
  • It operates based on line pressure of the system.

Aytok P1100 series fertilizer tanks are developed for chemical fertilizer or pesticide applications directly to root region of the plant using irrigation water of drip or sprinkler irrigation systems. It ensures very practical and convenient fertilizing and pesticide administration in irrigation systems due to simple structure and ease of use. Different models with varying capacities are available including horizontal and vertical types depending on different needs of present irrigation system. Operating based on pressure difference principle in the irrigation systems, Aytok fertilizer tanks will operate long years without requiring maintenance due to resistant construction.

Armas fertilizer tank operating principle

OPERATING PRINCIPLE

Aytok P1100 series fertilizing tank is connected parallel to main pipe of irrigation system using elastic hoses via by-pass method. Irrigation water enters into the tank containing soluble chemical from the inlet hose of fertilizer tank connected to the line. Due to pressure gradient created using a valve or pressure reducer assembled on the irrigation line, chemical fertilizer is solved and it is blended within the tank. Solved chemical fertilizer is supplied to the root region of the plant using irrigation water.



Available models and recommended flow rates

Plastic-fertilizer-technical-drawing Model Capacity ØD G C T H Weight
 litregaloninchmminchmminchmminchmminchmmkglbs
P1100 100 22 21" 533 1" 25 1" 25 3/4" 19 38" 965 24 53



Tank Injection Rate

Armas ferilizer tank injection rate Pressure Difference Injection Rate 3/4" inlet - 3/4" outlet Injection Rate ½" inlet- ½" outlet Injection Rate 1" inlet- 1" outlet
0.9 bar 1400 l/h 3980 l/h 5120 l/h
0.8 bar 1340 l/h 3750 l/h 4830 l/h
0.7 bar 1250 l/h 3510 l/h 4520 l/h
0.6 bar 1160 l/h 3250 l/h 4180 l/h
0.5 bar 1050 l/h 2970 l/h 3800 l/h
0.4 bar 940 l/h 2650 l/h 3420 l/h
0.3 bar 820 l/h 2300 l/h 2950 l/h
0.2 bar 670 l/h 1880 l/h 2400 l/h
0.1 bar 450 l/h 1320 l/h 1700 l/h
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Obstruction of sprinklers and drippers is one of most significant problems encountered in irrigation systems. Most common reason of the obstruction is about minerals, organic and inorganic materials found in the water resource. Process of filtering water in the irrigation system is referred as filtration. Filtration is the best protection method against avoiding entrance/obstruction of dripper, sprinkler, hydrant and other similar equipments used in the irrigation system by sediments. Because, process of finding the obstructed dripper, to clean or replace the dripper is very costly and laborious. Therefore, filtration is most significant control unit of an irrigation system.



 Download General Product Catalogue

 Download General Filtration Systems Catalogue



Filter Selection Table

Water Source Type of Filter to be Used
Network Water Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter
Well Water Disc Filter
Hydrocyclone (Sand Separators)
Screen Filter
River or Stream Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Lake or Pool Water Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Screen Filter System
Gravel Filter and Hydrocyclone System
Spring or Artesian Well Water Screen Filter
Hydrocyclone(Sand Separators)
Disc Filter
Water Supply Containing Organic Material Disc Filter
Gravel Filter and Disc Filter System
Gravel Filter and Hydrocyclone System
Water Supply Containing Sand Screen Filter
Hydrocyclone (Sand Separators)
Disc Filter



Mesh and disc numbers based on particulate matter dimension classification

Particle Class Particle Size (mm) Screen-Disc Number (mesh) Screen-Disc Number (micron)
Very Rough Sand 1.0 – 2.0 10 – 18 1500 – 850
Rough Sand 0.50 – 1.0 18 – 35 850 – 420
Intermediary Sand 0.25 – 0.50 35 – 60 420 – 250
Fine Sand 0.10 – 0.25 60 – 160 250 – 100
Very Fine Sand 0.05 – 0.10 160 – 270 100 – 50
Silt 0.002 – 0.05 270 – 400 50 – 30
Clay < 0.002 > 400 > 30



Filtration Degree Conversion Table

Micron 25 30 40 50 80 100 130 150 200 400 800 1500 3000
mm 0.025 0.03 0.04 0.05 0.08 0.1 0.13 0.15 0.2 0.4 0.8 1.5 3.0
Mesh 650 550 400 300 200 150 120 100 80 40 20 10 5
*
*
*
