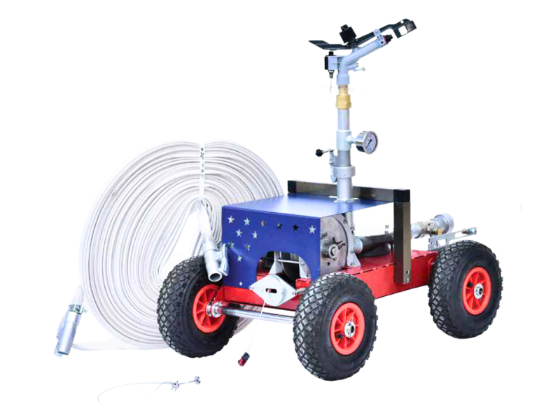

IrriCruiser MINI 100 Travelling Irrigator

STOP wasting time to fix your pop-up sprinklers. IrriCruiser MINI is very easy to use, efficient, turbine drive, LOW-COST travelling irrigator, and is suitable for lawn, sports fields, golf, race courses and small- to medium size hobby gardens.

Run Length
:
100 m
Lay Flat Hose
:
1 " (25 mm) 50 m Premium Drag Hose
Working Pressure
:
36 - 65 psi
Water Flow
:
57 - 80 l/min
Effective Spray Width
:
32 - 38 m
Travel Speed
:
12 to 26 m/h
Sprinkler
:
DuCaR Atom 22
Mechanism
:
Turbine drive & Automatic Stop at End of Run
Weight
:
55 kg
Construction
:
Heavy duty welded chassis & powder coated
Made in
:
Turkey
电话报价
制造商: DuCaR Sprinklers
商品库存单位(SKU): IrriCruiser-Mini-100
有货
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

DuCaR IrriCruiser MINI 100 - New Generation Turbine Drive Travelling Irrigator

Applications

Agriculture: Small hobby farms

Turf Irrigation: Golf, race/horse courses, playing/sports fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Powder-coated chassis
  • Patented travel shut-off mechanism: It closes the water inlet valve when it comes to the end of the run and your pump shuts itself down too. (NOTE: The pump must have a pressure sensor to shut itself off.)
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
  • Single speed gear box
  • Compact design, easy to use and store
  • Portable: The DuCaR IrriCruiser MINI 100 is ideal for irrigating small acreages. They can be easily towed from field to field.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser MINI 100 can easily be operated by one man and the labour consists mostly of lying down and rewinding the hose.
  • Cable length 100 m
  • Lay Flat Hose : 1" (25 mm) Premium Drag Hose
  • Required water flow : 57 - 80 l/min
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCruiser Aluminium Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
  • DuCaR IrriCruiser MINI 100 develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.



DuCaR IrriCruiser MINI 100 Typical Method of Operation

DuCaR IrriCruiser MINI 100 typical method of operation



Technical Specifications of DuCaR IrriCruiser MINI 100

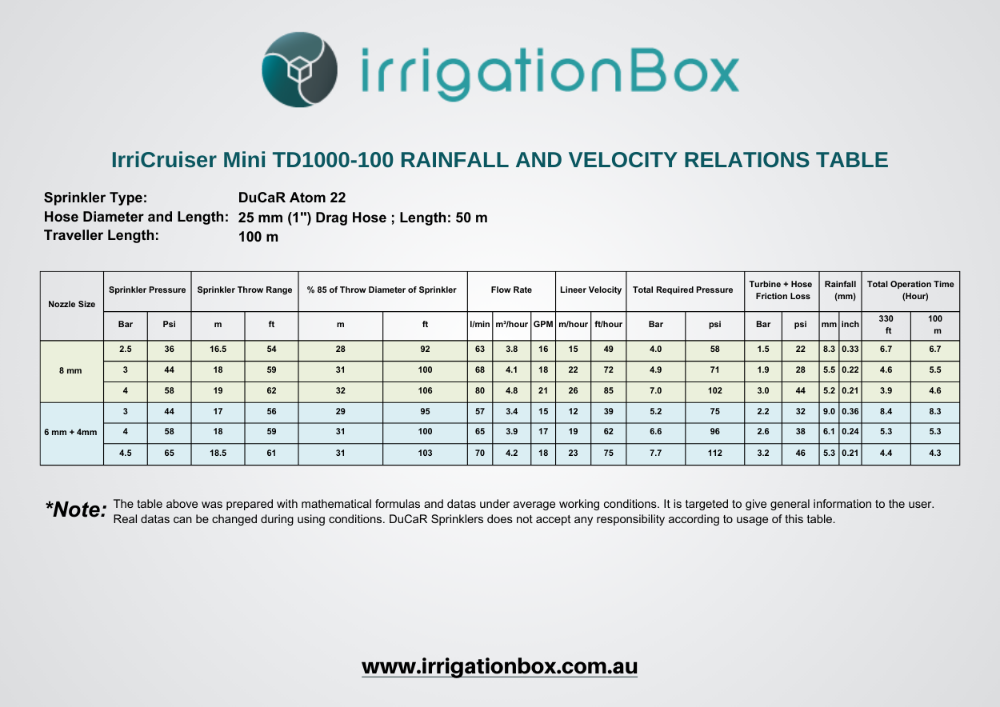

IrriCruiser-Mini-100-travelling-irrigator-rainfall-and-velocity-relations-table

DuCaR IrriCruiser MINI 100 - New Generation Turbine Drive Travelling Irrigator

Applications

Agriculture: Small hobby farms

Turf Irrigation: Golf, race/horse courses, playing/sports fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Powder-coated chassis
  • Patented travel shut-off mechanism: It closes the water inlet valve when it comes to the end of the run and your pump shuts itself down too. (NOTE: The pump must have a pressure sensor to shut itself off.)
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even towards end of run (0.8 to 1.3 bar pressure loss for operation of the turbine).
  • Single speed gear box
  • Compact design, easy to use and store
  • Portable: The DuCaR IrriCruiser MINI 100 is ideal for irrigating small acreages. They can be easily towed from field to field.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser MINI 100 can easily be operated by one man and the labour consists mostly of lying down and rewinding the hose.
  • Cable length 100 m
  • Lay Flat Hose : 1" (25 mm) Premium Drag Hose
  • Required water flow : 57 - 80 l/min
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCruiser Aluminium Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
  • DuCaR IrriCruiser MINI 100 develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • No Filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.



DuCaR IrriCruiser MINI 100 Typical Method of Operation

DuCaR IrriCruiser MINI 100 typical method of operation



Technical Specifications of DuCaR IrriCruiser MINI 100

IrriCruiser-Mini-100-travelling-irrigator-rainfall-and-velocity-relations-table
