1 Year Warranty Best Price Guaranteed Fast Delivery 100% Satisfied Customers
DuCaR-Atom-14-part-circle-Sprinkler DuCaR-Atom-14-part-circle-Sprinklers DuCaR-Atom-14-part-circle-Sprinkler-nozzles DuCaR Atom 14 with T-post fence holder DuCaR Atom 14 part circle with T-post fence holder DuCaR Atom 14 part circle on T-post fence holder DuCaR Atom 14 part circle on a Skid Base DuCaR Atom 14 part circle sprinkler on a Skid Base DuCaR Atom 14 part circle sprinkler on a 3/4" Skid Base DuCaR Atom 14 part circle sprinkler spray coverage

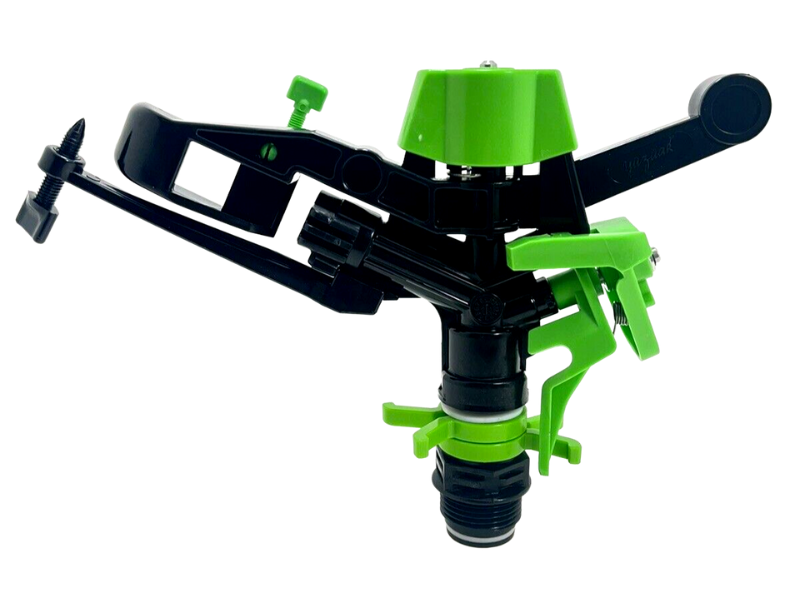

DuCaR Atom 14 Part Circle

2 评论 | 添加你的评论

UV resistant, 3/4" male threaded inlet, plastic impact sprinkler. Suitable for residential irrigation.


Water Input
:
3/4" Male BSP

Working Pressure
:
29 - 64 psi

Water Flow
:
15 - 32.5 l/min

Shooting Radius
:
13 - 16 m

Nozzles
:
4, 4.5, 5 mm

Body Angle
:
25°

Weight
:
0.20 kg

Operation
:
Part or Full Circle

Material
:
Plastic

Made in
:
Turkey
¥71.00
¥95.00
制造商: DuCaR Sprinklers
商品库存单位（SKU）: Atom14 PC
有货
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 14 PC LOW Flow sprinkler!

We guarantee 100% satisfaction!

The atom 14 PC low flow sprinkler with 3/4" male bsp threaded inlet. It is a new type of  sprinkler designed for low flow rate applications and operates over a full 360 degrees or your desired angle. It was developed as a result of 3-years long R&D activities to increase the efficiency and life span of existing sprinklers in the market. TheDuCaR Atom 14 sprinkler has a special body construction which has 250 body angle. It minimizes wind effect during the operation and it is made of 100% original raw material and engineering plastics that dramatically eliminates adverse effects of water and sun to serve for long years under Australian weather conditions.

Comes with 4, 4.5, and 5 mm nozzles.

The Atom 14 FC sprinkler is commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers. However, it can be a perfect choice for small hobby gardens.



Technical Specifications (DuCaR Atom 14 PC)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm ● 2 29 13 43 15 0.90 4.0 531 0.13 1.7
4mm ● 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4mm ● 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm ● 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5mm ● 2 29 13 43 17.5 1.05 4.6 531 0.13 2.0
4.5mm ● 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5mm ● 3.0 43 13.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm ● 3.5 50 15 49 23.3 1.40 6.2 707 0.17 2.0
5mm ● 2 29 14 46 22.5 1.35 5.9 615 0.15 2.2
5mm ● 2.5 36 15 49 24.3 1.46 6.4 707 0.17 2.1
5mm ● 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5mm ● 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1
5mm ● 4.5 64 16.5 54 32.5 1.95 8.6 855 0.21 2.3



IrrigationBox proudly presents revolutionary new generation low volume smart DuCar Atom 14 PC LOW Flow sprinkler!

We guarantee 100% satisfaction!

The atom 14 PC low flow sprinkler with 3/4" male bsp threaded inlet. It is a new type of  sprinkler designed for low flow rate applications and operates over a full 360 degrees or your desired angle. It was developed as a result of 3-years long R&D activities to increase the efficiency and life span of existing sprinklers in the market. TheDuCaR Atom 14 sprinkler has a special body construction which has 250 body angle. It minimizes wind effect during the operation and it is made of 100% original raw material and engineering plastics that dramatically eliminates adverse effects of water and sun to serve for long years under Australian weather conditions.

Comes with 4, 4.5, and 5 mm nozzles.

The Atom 14 FC sprinkler is commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers. However, it can be a perfect choice for small hobby gardens.



Technical Specifications (DuCaR Atom 14 PC)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm ● 2 29 13 43 15 0.90 4.0 531 0.13 1.7
4mm ● 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4mm ● 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm ● 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5mm ● 2 29 13 43 17.5 1.05 4.6 531 0.13 2.0
4.5mm ● 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5mm ● 3.0 43 13.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm ● 3.5 50 15 49 23.3 1.40 6.2 707 0.17 2.0
5mm ● 2 29 14 46 22.5 1.35 5.9 615 0.15 2.2
5mm ● 2.5 36 15 49 24.3 1.46 6.4 707 0.17 2.1
5mm ● 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5mm ● 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1
5mm ● 4.5 64 16.5 54 32.5 1.95 8.6 855 0.21 2.3



商品规格
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 3/4"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 18 l/min
Maximum Water Flow 38 l/min
Minimum Shooting Range 10 - 12 m
Maximum Shooting Range 13 - 15 m
