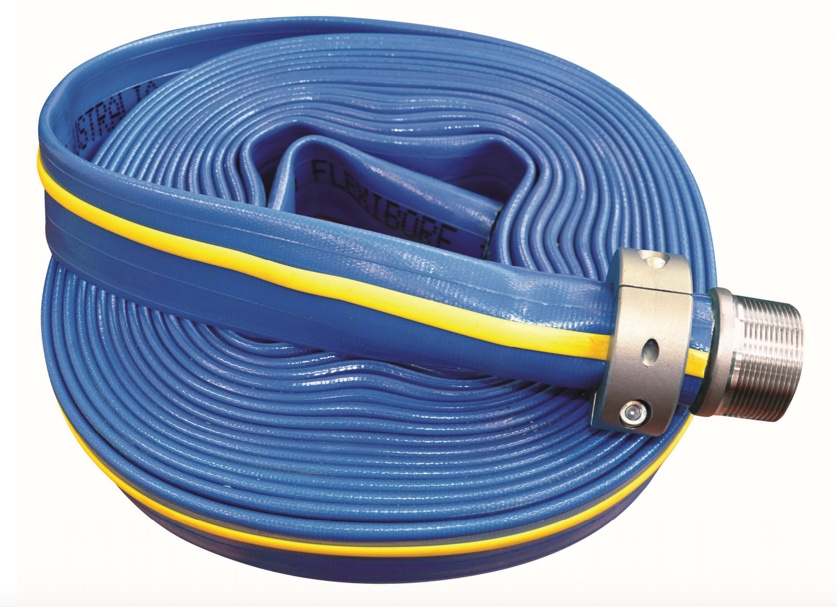

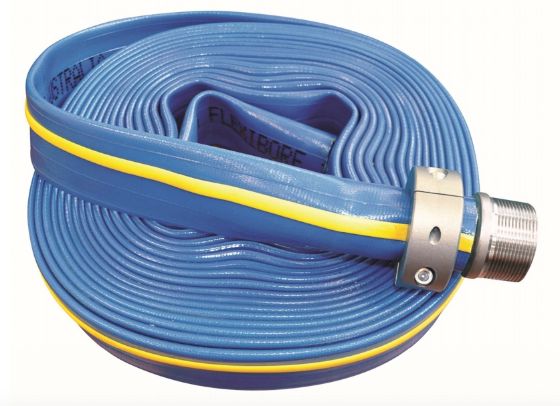

Flexibore 100 Layflat Bore Hose

It can swell up to 10%, making it extremely efficient in reducing pumping costs and friction loss.


Inside Diameter Range
:
1.25" (32 mm) - 2" (51 mm)

Max. flow rate
:
2 - 6 litre/sec

Weight per Meter
:
0.33 - 0.48 kg

Burst Pressure Range
:
690 - 1050 psi (46 - 70 Bar)


Australian Made
¥69.00
¥76.00
制造商: Crusader Hose
商品库存单位(SKU): Flexibore
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

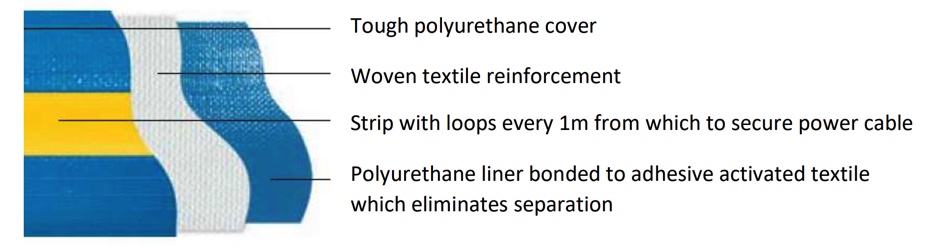

Flexibore® is constructed by integrating thermoplastic polyurethane into a woven textile fabric of high tenacity polyester. The heavy-duty internal fabric gives the hose flexibility and great tensile strength in one continuous length. Since Flexibore® hose can sustain both the submersible pump and water weight, no safety cable is required. Flexibore® is a flexible riser that will suit many borehole applications and is compatible with most submersible pumps.

It is made to suit most lower-flow bore water pumping applications and is manufactured in 32mm and 50mm diameters and is compactly coiled up in a continuous length. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® features including:

  • Easy to install and rapid retrieval
  • Secure and easy-to-fit coupling
  • Simple power cable attachment
  • Continuous length
  • Totally corrosion and microbiological damage resistant and will not succumb to iron bacteria build-up
  • No kinking like polypipe

Primary Uses:

  • Bore water pumping
  • Lowering groundwater table in mines

Crusader Flexibore Layflat Bore Hose
Technical Specifications

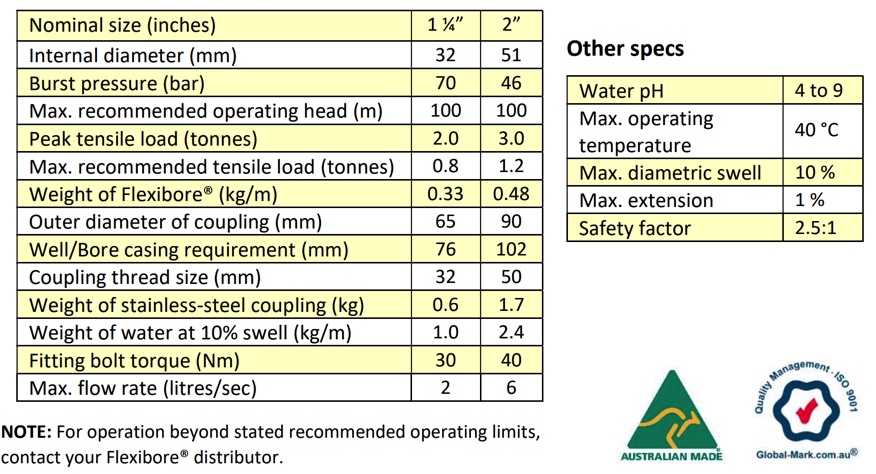

Crusader Flexibore 100 technical specifications


COUPLING SET -304 S/S
Two sets required per hose assembly
One set = one coupling & one clamp

JOINER SET - 304 S/S
One set = one joiner & 2 clamps

MINI INSTALLATION ROLLER - v2
To suit 4" - 8" bore casing

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

Flexibore® is constructed by integrating thermoplastic polyurethane into a woven textile fabric of high tenacity polyester. The heavy-duty internal fabric gives the hose flexibility and great tensile strength in one continuous length. Since Flexibore® hose can sustain both the submersible pump and water weight, no safety cable is required. Flexibore® is a flexible riser that will suit many borehole applications and is compatible with most submersible pumps.

It is made to suit most lower-flow bore water pumping applications and is manufactured in 32mm and 50mm diameters and is compactly coiled up in a continuous length. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® features including:

  • Easy to install and rapid retrieval
  • Secure and easy-to-fit coupling
  • Simple power cable attachment
  • Continuous length
  • Totally corrosion and microbiological damage resistant and will not succumb to iron bacteria build-up
  • No kinking like polypipe

Primary Uses:

  • Bore water pumping
  • Lowering groundwater table in mines

Crusader Flexibore Layflat Bore Hose
Technical Specifications
Crusader Flexibore 100 technical specifications


COUPLING SET -304 S/S
Two sets required per hose assembly
One set = one coupling & one clamp

JOINER SET - 304 S/S
One set = one joiner & 2 clamps

MINI INSTALLATION ROLLER - v2
To suit 4" - 8" bore casing
