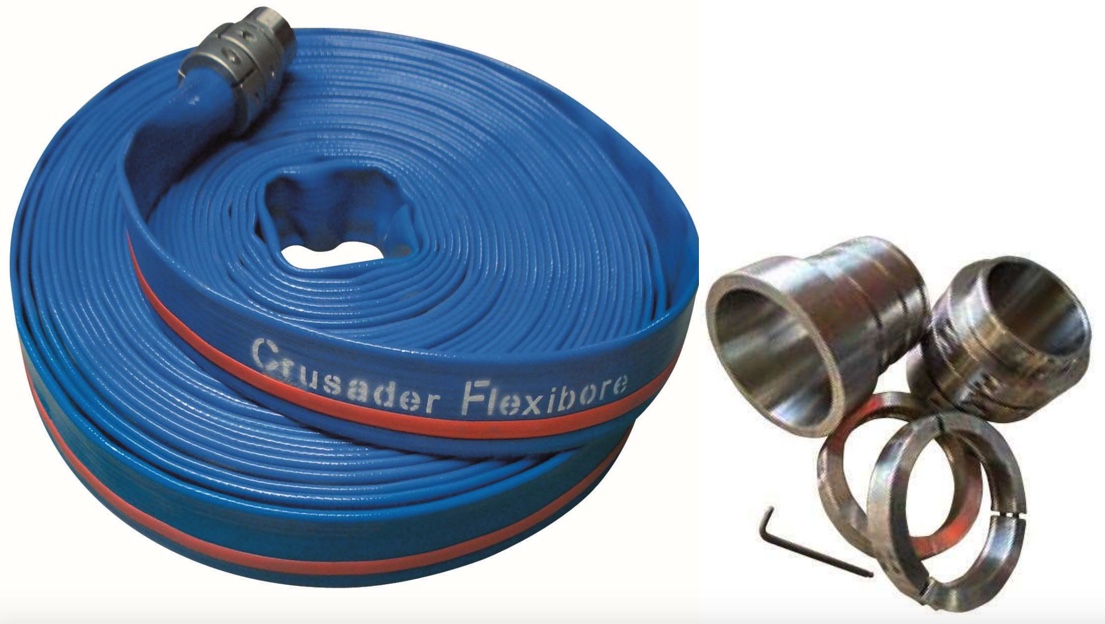

Flexibore 150 Layflat Bore Hose

A large diameter high quality layflat bore hose that can swell up to 15%, making it extremely efficient in reducing pumping costs and friction loss.


Inside Diameter Range
:
8" (203 mm) - 10" (254 mm)

Max. flow rate
:
148 - 200 litre/sec

Weight per Meter
:
3.4 - 4.5 kg

Burst Pressure Range
:
630 psi (42 Bar)


Australian Made
¥1,077.00
¥1,253.00
制造商: Crusader Hose
商品库存单位(SKU): Flexibore 150
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

该产品具有最小数量 2

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

Flexibore® 150 is a large diameter, high quality layflat bore hose available in both 8" and 10" and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 150m inside the bore.

Flexibore® 150 can swell up to 15% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit most bore water pumping applications where a large diameter hose is required. Each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® 150 world's best quality features including:

  • Large-diameter deep ground water pumping up to 150m
  • Ultra-high tensile for large submersible pumps
  • Flexible so easy to install and rapid retrieval
  • Secure and easy-to-fit coupling
  • Swells so no internal build-up
  • Rogorously tested

Primary Uses:

  • Bore water pumping
  • Potable water use
  • Low cost pumping

Technical Specifications

Flexibore 150 Layflat Bore Hose Technical Specification

Other specifications:
  • Water pH range: 3 to 9
  • Maximum operating temperature: 60° C
  • Maximum diametric swell: 15%
  • Maximum extension: 2%
  • Safety factor: 2:1



COUPLING SET 316 S/S

Two sets required per hose assembly

One set = one coupling and two clamps

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

Flexibore® 150 is a large diameter, high quality layflat bore hose available in both 8" and 10" and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 150m inside the bore.

Flexibore® 150 can swell up to 15% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit most bore water pumping applications where a large diameter hose is required. Each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® 150 world's best quality features including:

  • Large-diameter deep ground water pumping up to 150m
  • Ultra-high tensile for large submersible pumps
  • Flexible so easy to install and rapid retrieval
  • Secure and easy-to-fit coupling
  • Swells so no internal build-up
  • Rogorously tested

Primary Uses:

  • Bore water pumping
  • Potable water use
  • Low cost pumping

Technical Specifications

Flexibore 150 Layflat Bore Hose Technical Specification

Other specifications:
  • Water pH range: 3 to 9
  • Maximum operating temperature: 60° C
  • Maximum diametric swell: 15%
  • Maximum extension: 2%
  • Safety factor: 2:1



COUPLING SET 316 S/S

Two sets required per hose assembly

One set = one coupling and two clamps
