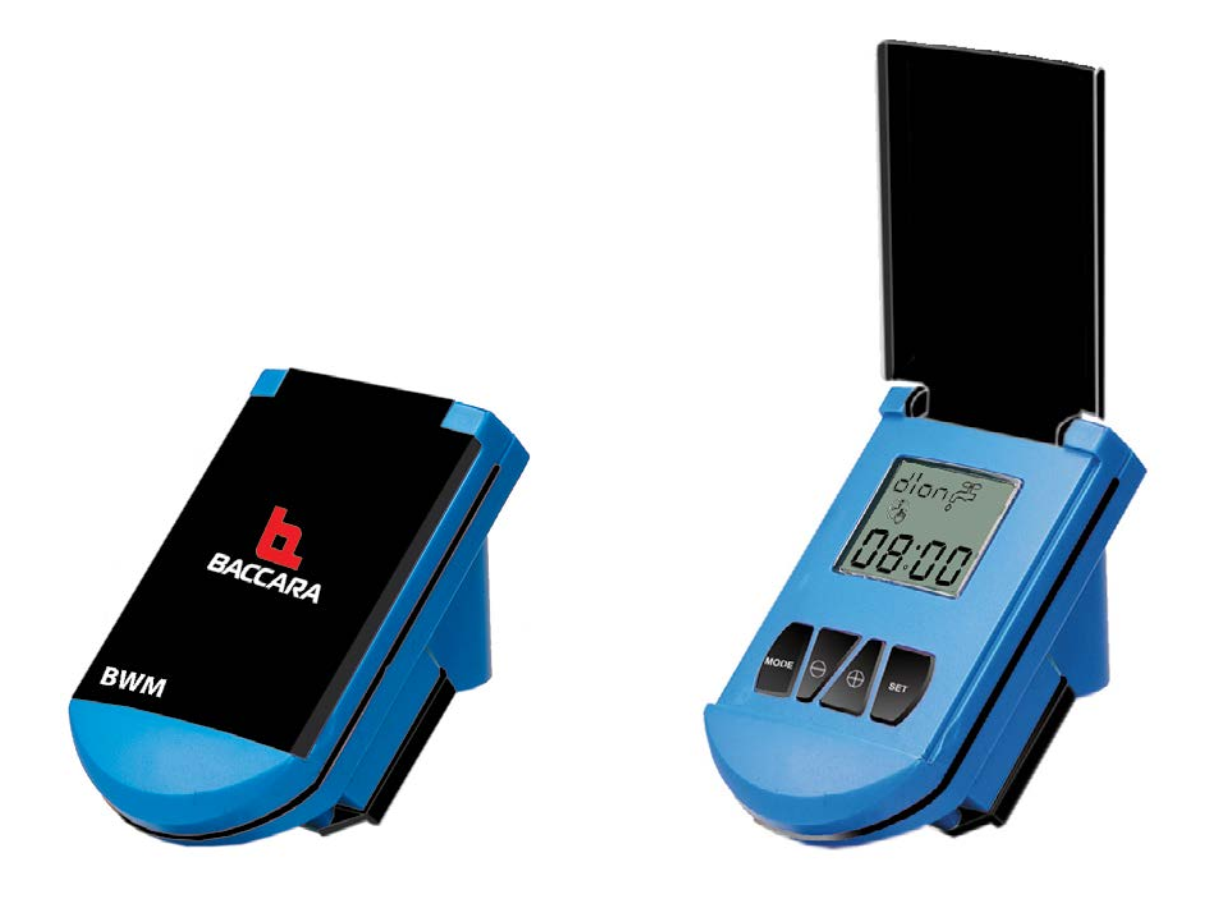

G75-BWM | Water meter controller without Valve

争取评论头条

Operating Temp.

-10° - 60° C

Options

Solar panel, charger

Battery

9V alkaline battery included

Mounting

Horizontal, vertical, wall mounting

¥931.00

制造商: Baccara

Shipping

交货日期 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

数量:

+ -

Highlights

Single station water volume controller
Connected to a water meter with pulse outlet
Opens at a set time and closes when required water volume has been reached
Operating temp: -10° to 60°C
Option: Solar panel, charger
Battery: 9V alkaline battery included
Mounting: Horizontal, vertical, wall mounting

Programming Key Features

Set start time

Set required water volume

Day select

OFF

Technical Data

Operating temperature	-10º to 60ºC
Electrical	Powered by single 9V alkaline battery; use best quality to ensure at least one year's autonomous operation • Back-up memory • Low battery warning • Power saving LCD • Battery included
Mounting	Various mounting options : • Directly on a 28mm diameter solenoid in horizontal or vertical position with adaptor • Wall mounting with four screws • Accessories provided
Solenoid	Compatible with G75 4Ω latch operator
Measurement units per pulse	100 liters \| 1m3 \| 10m3 \| 100 gallons \| 1000 gallons
Software	• 24 hours real time clock • See 'Programming key features' table
Options	Solar panel, charger
Standard protection class	• Dust and watertight • IP67 and NEMA 4X

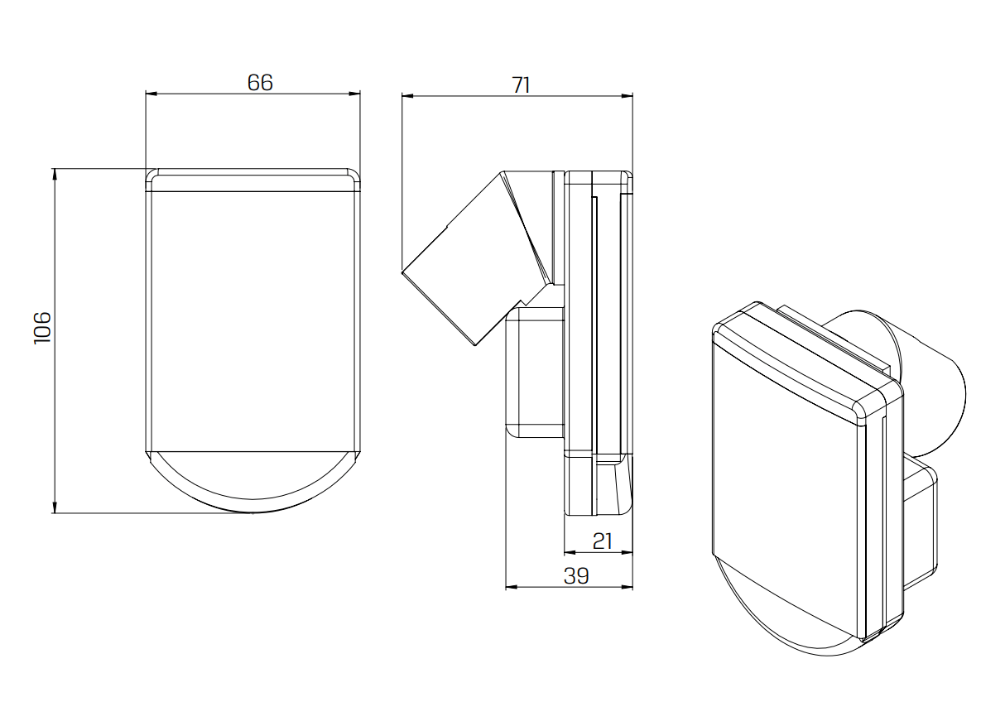

G75-BWM-water-meter-controller-without-valve-dimensions

Highlights

Single station water volume controller
Connected to a water meter with pulse outlet
Opens at a set time and closes when required water volume has been reached
Operating temp: -10° to 60°C
Option: Solar panel, charger
Battery: 9V alkaline battery included
Mounting: Horizontal, vertical, wall mounting

Programming Key Features

Set start time

Set required water volume

Day select

OFF

Technical Data

Operating temperature	-10º to 60ºC
Electrical	Powered by single 9V alkaline battery; use best quality to ensure at least one year's autonomous operation • Back-up memory • Low battery warning • Power saving LCD • Battery included
Mounting	Various mounting options : • Directly on a 28mm diameter solenoid in horizontal or vertical position with adaptor • Wall mounting with four screws • Accessories provided
Solenoid	Compatible with G75 4Ω latch operator
Measurement units per pulse	100 liters \| 1m3 \| 10m3 \| 100 gallons \| 1000 gallons
Software	• 24 hours real time clock • See 'Programming key features' table
Options	Solar panel, charger
Standard protection class	• Dust and watertight • IP67 and NEMA 4X

G75-BWM-water-meter-controller-without-valve-dimensions
