Highlights
- Single Station Irrigation Controller
- Wireless operated by smart device
- Four irrigation program types
- Min required iOS 7 or Android V4.3
- Battery Included
Programming Key Features
* Four different irrigation plans
| Weekly |
Interval Days |
Even / Odd Days |
Window |
Irrigation each day of
the week |
Periodical days up to
98 periods |
Even / odd calendar
dates |
Repeated cycles within
a defined time frame |
| Set up to 6 cycles per day |
Set cycle On and Off
duration |
| Option to set different irrigation durations per cycle |
Set start and end times
for irrigation |

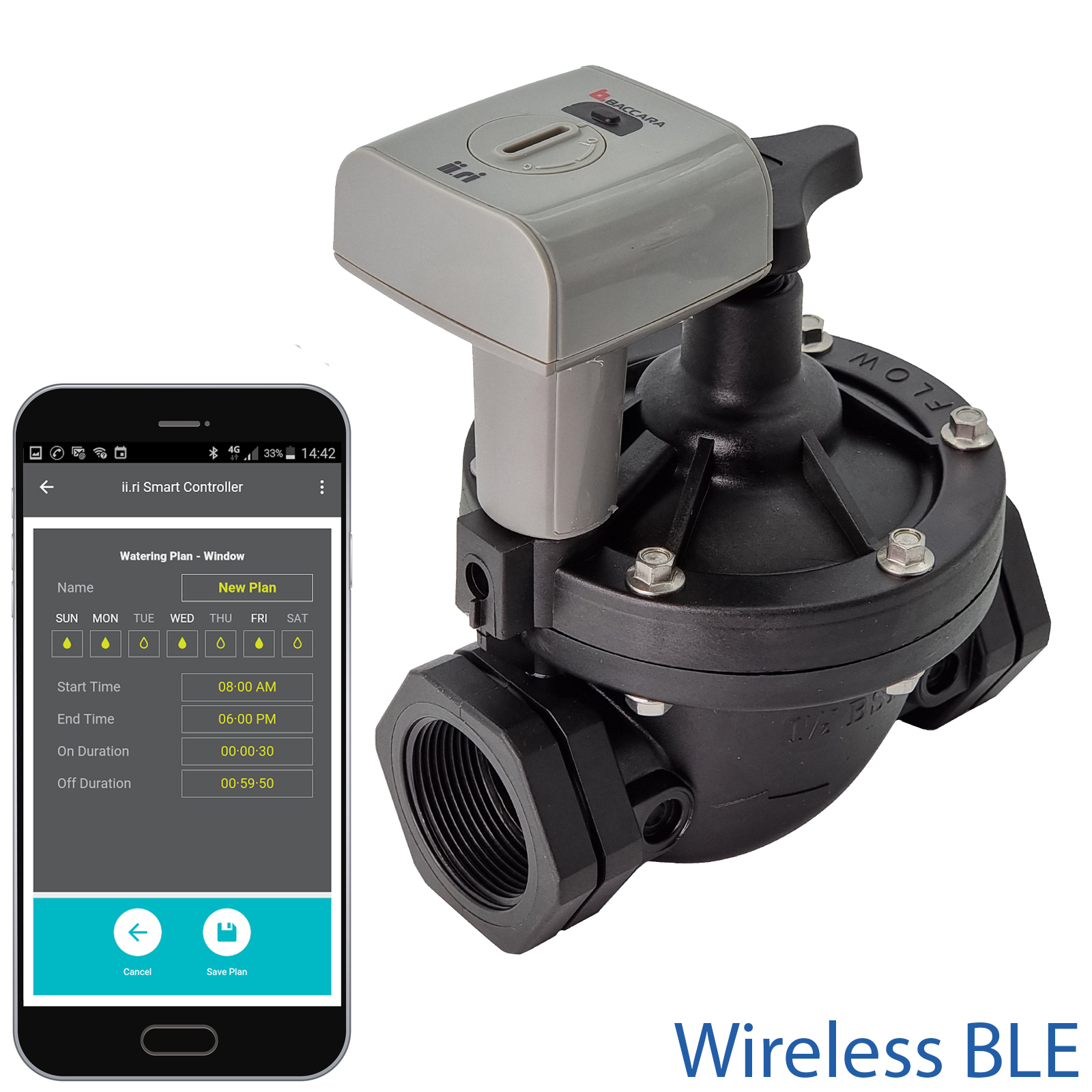

Baccara ii.ri The smart and simple way to control your garden irrigation.
Manage and control your garden irrigation system through a user-friendly smartphone app.Until recently the world of irrigation controllers was reserved for professional gardeners, requiring complicated technical and operational know-how. But that’s all history now.
The new ii.ri by Baccara, is the first irrigation controller that allows anyone and everyone to manage and control their garden irrigation system through a user-friendly smartphone app.
- The ii.ri smartphone irrigation controller features four different built-in plans that address most of the automatic irrigation needs
- Programming the ii.ri is simple and intuitive, nevertheless it requires a little know-how in order to familiarize yourself with it
- It is recommended to define the irrigation areas before starting the programming process
- The ii.ri can actuate one valve each time, therefore, one controller would be used for each irrigation area.
- There is no need to connect the ii.ri to the smartphone during the programming process.
- The irrigation specifications depends on the type of field crops, flowers, trees, etc and may vary depending on the seasons.
- The ii.ri it is self-energized by an internal battery and does not require any additional wiring or power supply.
- The ii.ri app must be installed and running on the smartphone
Technical Data
| Function |
2 Way Latch |
| Pressure range |
0 to 8 bar |
| Temperature range |
Fluid : 5º to 50ºC (no freezing)
Ambient : -5º to 50ºC |
| Communication protocol |
Wireless BLE (Bluetooth Connect) |
| App Downloading |
  |
| Pairing code |
Not required |
| Battery type |
CR123 |
| Mounting |
Direct mounting on UNEF 3/4" |
| Standard / Certification |
• CE
• Federal Communications Commission (FCC) |
| Standard protection class |
• Dust and watertight IP68 |
