Venturi Fertilizer Injectors

SKU: Venturi
Delivery date: 3-5 business days
Manufacturer: Aytok Filters
Body Material : Moblen
Maximum Working Pressure : 4 bar
Maximum Working Temperature : 60°
US $18.00
*

PLEASE SELECT A SIZE

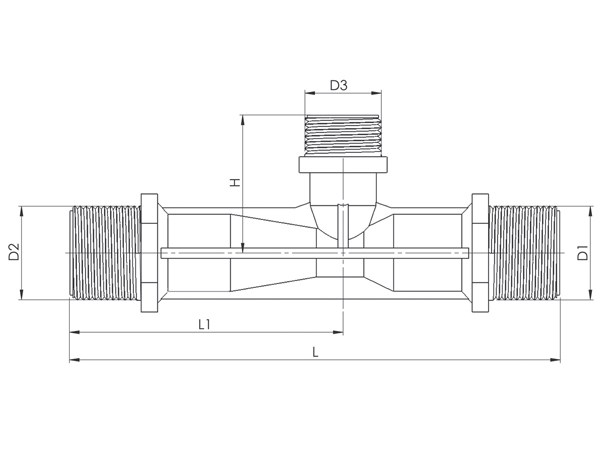

Technical Specifications



Aytok Plastic Ventury
Product Code D1 D2 D3 L L1 H
Weight
 mminchinchinchmmmmmmkg
4022-1 20 3/4" 3/4" 1/2" 169 95 48 0.25
4022-2 25 1" 1" 3/4" 166.5 92.5 48 0.27
4022-3 38 1 1/2" 1 1/2" 3/4" 280 167 50 0.5
4022-4 50 2" 2" 1" 301 180 60 0.7



Injector Performance Table



P in
(bar)
P out
(bar)
3/4"
1"

1 1/2"
2"

Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
Injection
Flow
(l/min)
Aspiration
Flow
(l/h)
0.5
0
9
400
41
480
54
655
146
1000
0.75
0
11
440
47
500
70
900
174
1075
1
0
13
420
50
514
81
1029
204
1200
0.25
13
420
50
514
73
1029
202
1200
0.5
13
360
47
480
73
800
200
1040
1.5
0
15
400
57
514
94
1029
238
1200
0.5
15
400
57
514
94
1029
236
1075
0.75
15
300
53
480
90
900
242
1075
1
15
103
53
340
85
655
213
889
2
0
18
380
64
514
105
1029
268
1200
0.5
18
380
64
514
105
1029
268
1200
0.75
18
380
64
514
105
1029
268
1200
1
18
200
64
514
105
1029
268
1040
1.25
18
100
61
400
105
800
255
1000
1.5


60
120

232
238

2.5
0
20
360
70
500
116
1029
285
1200
0.5
20
360
70
500
116
1029
285
1200
0.75
20
360
70
500
116
1029
285
1200
1
20
360
70
500
116
1029
285
1200
1.25
20
360
69
480
116
1029
281
1200
1.5
20
200
69
480
112
900
281
1040
1.75


66
343
109
800
272
527
2


65
120




3
0
21
330
75
500
126
1029
319
1200
1
21
330
75
500
126
1029
315
1200
1.25
21
330
75
450
126
1029
315
1200
1.5
21
330
75
450
126
1029
315
1125
1.75
21
330
75
450
125
800
306
1125
2
21
200
75
400
119
655
302
1000
2.25


73
200
117
277
293
889
2.5







527
3,5
0
22
300
81
480
135
1029
344
1200
1
22
300
81
480
135
1029
344
1200
1.5
22
300
81
480
135
1029
344
1200
1.75
22
300
81
480
135
1029
344
1200
2
22
300
81
480
135
1029
340
1200
2.25
22
240
79
400
130
800
332
1125
2.5
22
100
79
340
128
655
319
889
2.75


78
200
125



4
0
24
280
85
480
143
1029
366
1200
1
24
280
85
480
143
1029
366
1200
2
24
280
85
480
143
1029
357
1200
2.25
24
280
85
480
141
1029
357
1200
2.5
24
240
85
480
140
1029
357
1200
2.75
24
180
85
400
138
655
349
1125
3
24
100
83
300
135
277
340
527
3.25


81
120
