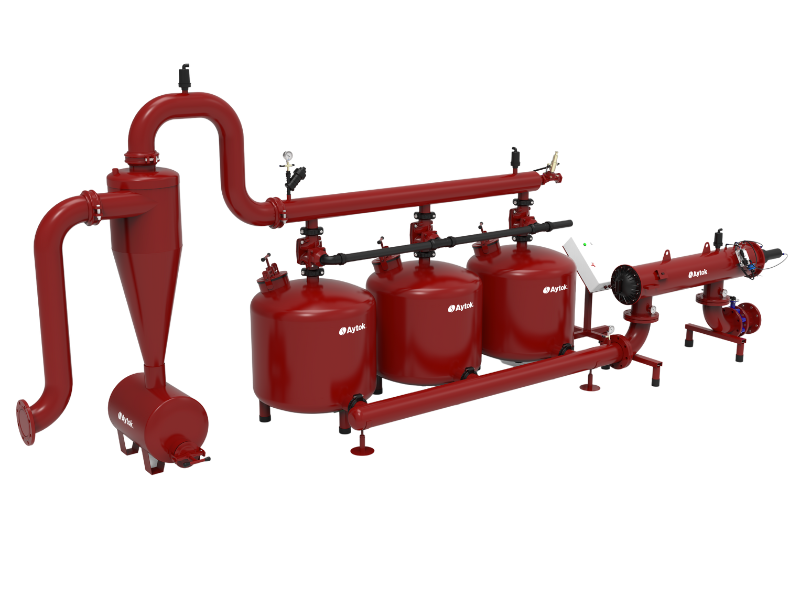

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone.


Screen Material
:
SS316

Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-2000 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
电话报价
制造商: Aytok Filters
商品库存单位(SKU): MHA223020VEF
交货日期 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

  • Screen Material: SS316
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-2000 micron (µ)
  • Painting Method: Electrostratic Powder Coating Painting
  • Material: Epoxy Polyester



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
MHA223020VEF 2"HYDROCYCLONE+2"2X2"SAND MEDIA FILTER(18"TANK)+1 X VEF102F 10-20
MHA323030VEF 3"HYDROCYCLONE+2"2X3"SAND MEDIA FILTER(24"TANK)+1 X VEF103 20-50
MHA433030VEF 4"HYDROCYCLONE+4"3X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 50-70
MHA443030VEF 4"HYDROCYCLONE+4"4X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 70-100
MHA553030EF 5"HYDROCYCLONE+5"5X3"SAND MEDIA FILTER(24"TANK)+1 X EF105 100-130
MHA663030EF 6"HYDROCYCLONE+6"6X3"SAND MEDIA FILTER(24"TANK)+1 X EF106 130-180
MHA643060EF 6"HYDROCYCLONE+6"4X3"SAND MEDIA FILTER(36"TANK)+1 X EF126S 150-200
MHA853060EF 2X5"HYDROCYCLONE+8"5X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 200-250
MHA863060EF 2X6"HYDROCYCLONE+8"6X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 250-300
MHA873060EF 2X6"HYDROCYCLONE+8"7X3"SAND MEDIA FILTER(36"TANK)+2 X EF106 300-350
MHA1083060EF 2X6"HYDROCYCLONE+10"8X3"SAND MEDIA FILTER(36"TANK)+2 X EF126S 350-400
MHA1063080EF 3X6"HYDROCYCLONE+10"6X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 400-450
MHA1073080EF 3X6"HYDROCYCLONE+10"7X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 450-500
MHA1083080EF 3X6"HYDROCYCLONE+10"8X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 500-550
MHA1293080EF 4X6"HYDROCYCLONE+12"9X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 550-640



Aytok filtration system

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

  • Screen Material: SS316
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-2000 micron (µ)
  • Painting Method: Electrostratic Powder Coating Painting
  • Material: Epoxy Polyester



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
MHA223020VEF 2"HYDROCYCLONE+2"2X2"SAND MEDIA FILTER(18"TANK)+1 X VEF102F 10-20
MHA323030VEF 3"HYDROCYCLONE+2"2X3"SAND MEDIA FILTER(24"TANK)+1 X VEF103 20-50
MHA433030VEF 4"HYDROCYCLONE+4"3X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 50-70
MHA443030VEF 4"HYDROCYCLONE+4"4X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 70-100
MHA553030EF 5"HYDROCYCLONE+5"5X3"SAND MEDIA FILTER(24"TANK)+1 X EF105 100-130
MHA663030EF 6"HYDROCYCLONE+6"6X3"SAND MEDIA FILTER(24"TANK)+1 X EF106 130-180
MHA643060EF 6"HYDROCYCLONE+6"4X3"SAND MEDIA FILTER(36"TANK)+1 X EF126S 150-200
MHA853060EF 2X5"HYDROCYCLONE+8"5X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 200-250
MHA863060EF 2X6"HYDROCYCLONE+8"6X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 250-300
MHA873060EF 2X6"HYDROCYCLONE+8"7X3"SAND MEDIA FILTER(36"TANK)+2 X EF106 300-350
MHA1083060EF 2X6"HYDROCYCLONE+10"8X3"SAND MEDIA FILTER(36"TANK)+2 X EF126S 350-400
MHA1063080EF 3X6"HYDROCYCLONE+10"6X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 400-450
MHA1073080EF 3X6"HYDROCYCLONE+10"7X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 450-500
MHA1083080EF 3X6"HYDROCYCLONE+10"8X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 500-550
MHA1293080EF 4X6"HYDROCYCLONE+12"9X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 550-640



Aytok filtration system
