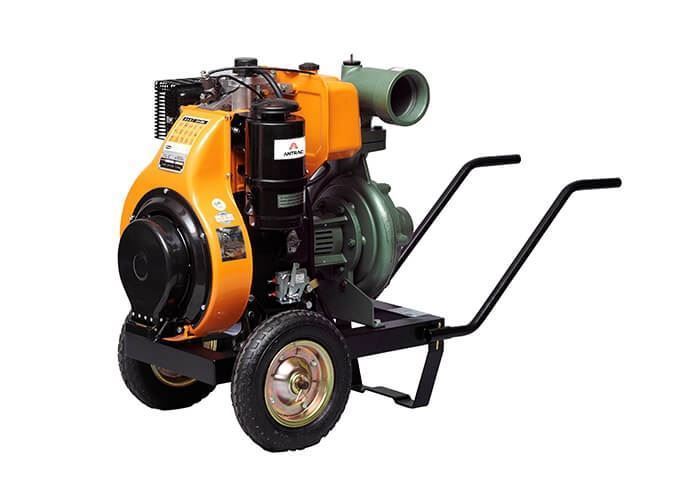

Antor 17 HP Diesel Motopump

Perfect for running a small travelling irrigator, solid irrigation system with small sprinklers, fire protection, construction and anywhere there is a need to move water.

Flow Capacity
:
330 - 1330 l/min
Head
:
65 - 25 m at 3000 RPM
Engine Power
:
Antor 4LD 820 17 HP Diesel
Weight
:
160 kg
Suction/Discharge
:
4" x 4" (100 x 100 mm)
Starting System
:
Electric Start
¥32,622.00
商品库存单位(SKU): Antor-4-LD-820-LY3
有货
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

The Antor 4 LD 820 LY3 is a high performance and portable 17HP diesel engine driven Motopump unit.

It is perfect for running a small travelling irrigator, solid sprinkler and drip irrigation applications, fire fighting and water transfer in construction sites.

Also, the Antor 4 LD 820 LY3 is a great match with DuCaR impact and gear drive sprinklers.

It can provide flow rates from 10 to 80 m3/h and pressures from 35 to 110 psi!

It enables you to run a DuCaR IrriCruiser MIDI travelling irrigator or 8 - 10 DuCaR Atom 28 impact sprinklers at the same time.

Or it is perfect for any other medium to high volume gear driven irrigation sprinklers.

Technical Specifications
Model
:
Antor 4LD 820 17 HP Diesel
Pump Type
:
Scroll Case, Centrifuge
Accouplement Type
:
Single Bearing, Direct Monoblock
Flow Capacity
:
330 - 1330 l/min
Head
:
75 - 25 m at 3000 RPM
Water Pump Weight
:
160 kg
Suction/Discharge
:
4" x 4" (100 x 100 mm)
Starting System
:
Electric Start
Fuel Tank Capacity
:
7.5 liters
Fuel Consumption Rate
:
190 gr/HP hour
Oil Consumption Rate
:
2.6 liters
Empty Weight
:
98 kg
Maximum Torque
:
3.5 kg-m @1800 rpm



m³/h 0 10 20 30 40 50 60 70   Power
Total Height HM (mss) 67 65 62 60 58 50 40 35 17 HP





The Antor 4 LD 820 LY3 is a high performance and portable 17HP diesel engine driven Motopump unit.

It is perfect for running a small travelling irrigator, solid sprinkler and drip irrigation applications, fire fighting and water transfer in construction sites.

Also, the Antor 4 LD 820 LY3 is a great match with DuCaR impact and gear drive sprinklers.

It can provide flow rates from 10 to 80 m3/h and pressures from 35 to 110 psi!

It enables you to run a DuCaR IrriCruiser MIDI travelling irrigator or 8 - 10 DuCaR Atom 28 impact sprinklers at the same time.

Or it is perfect for any other medium to high volume gear driven irrigation sprinklers.

Technical Specifications
Model
:
Antor 4LD 820 17 HP Diesel
Pump Type
:
Scroll Case, Centrifuge
Accouplement Type
:
Single Bearing, Direct Monoblock
Flow Capacity
:
330 - 1330 l/min
Head
:
75 - 25 m at 3000 RPM
Water Pump Weight
:
160 kg
Suction/Discharge
:
4" x 4" (100 x 100 mm)
Starting System
:
Electric Start
Fuel Tank Capacity
:
7.5 liters
Fuel Consumption Rate
:
190 gr/HP hour
Oil Consumption Rate
:
2.6 liters
Empty Weight
:
98 kg
Maximum Torque
:
3.5 kg-m @1800 rpm



m³/h 0 10 20 30 40 50 60 70   Power
Total Height HM (mss) 67 65 62 60 58 50 40 35 17 HP
