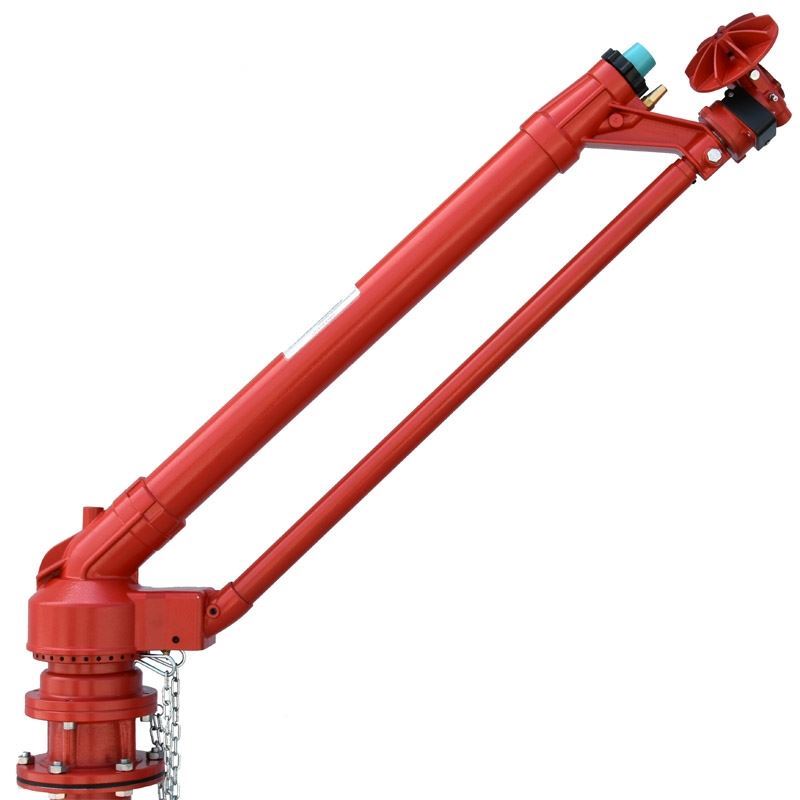

DuCaR Dust JET PRO

争取评论头条

HIGH VOLUME dust Suppression rain gun designed for mining applications.

Water Input

2.5" Flanged

Working Pressure

44 - 100 psi

Water Flow

683 - 1800 l/min

Shooting Radius

38 - 55 m

Free Nozzles

24, 26, 28, 30, 32 mm

Body Angle

43°

Flange Dimensions

130 x 78 mm

Weight

13 kg

Made in

Turkey

¥5,804.00

制造商: DuCaR Sprinklers

商品库存单位（SKU）: DSTJET-PRO

库存信息:

有货

Shipping

交货日期 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

数量:

+ -

Special design, high volume gear driven dust control and suppression sprinkler allows irrigation and humidification of large lands with minimum water consumption.

Its gear drive mechanism ensure the droplets are spread over the working area in a form of mist screen. As the gear drive dust control sprinkler moves constantly, it ensures uninterrupted dust suppression. It has excellent and same forward and reverse speed. The Dust Jet PRO is resistant to light to medium degree chemical.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m	feet	m	feet
Nozzle Diameter		Pressure		Jet Length		Capacity			Maximum Shooting Height		Distance at the soil from sprinkler to apogee
24	0.95	3	44	38	125	683	41	181	12	39	22	72
24	0.95	4	56	40	131	800	48	211	14	46	25	82
24	0.95	5	70	42	138	917	55	242	16	52	27	89
24	0.95	6	85	44	144	983	59	260	18	59	30	98
26	1.03	3	44	37	121	800	48	211	13	43	23	75
26	1.03	4	56	42	138	933	56	247	15	49	27	89
26	1.03	5	70	45	148	1050	63	277	17	56	28	92
26	1.03	6	85	48	157	1133	68	299	18	59	30	98
28	1.1	3	44	38	125	933	56	247	18	59	24	79
28	1.1	4	56	44	144	1083	65	286	16	52	27	89
28	<1.1	5	70	47	154	1200	72	317	17	56	29	95
28	1.1	6	85	50	164	1300	78	343	19	62	31	102
30	1.18	4	56	46	151	1200	72	317	16	52	27	89
30	1.18	5	70	49	161	1350	81	357	18	59	30	98
30	1.18	6	85	52	171	1483	89	392	19	62	32	105
32	1.25	4	56	47	154	1333	80	352	17	56	28	92
32	1.25	5	70	50	164	1533	92	405	19	62	31	102
32	1.25	6	85	53	174	1667	100	440	21	69	33	108
32	1.25	7	100	55	180	1800	108	476	22.5	74	35	115

Special design, high volume gear driven dust control and suppression sprinkler allows irrigation and humidification of large lands with minimum water consumption.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m	feet	m	feet
Nozzle Diameter		Pressure		Jet Length		Capacity			Maximum Shooting Height		Distance at the soil from sprinkler to apogee
24	0.95	3	44	38	125	683	41	181	12	39	22	72
24	0.95	4	56	40	131	800	48	211	14	46	25	82
24	0.95	5	70	42	138	917	55	242	16	52	27	89
24	0.95	6	85	44	144	983	59	260	18	59	30	98
26	1.03	3	44	37	121	800	48	211	13	43	23	75
26	1.03	4	56	42	138	933	56	247	15	49	27	89
26	1.03	5	70	45	148	1050	63	277	17	56	28	92
26	1.03	6	85	48	157	1133	68	299	18	59	30	98
28	1.1	3	44	38	125	933	56	247	18	59	24	79
28	1.1	4	56	44	144	1083	65	286	16	52	27	89
28	<1.1	5	70	47	154	1200	72	317	17	56	29	95
28	1.1	6	85	50	164	1300	78	343	19	62	31	102
30	1.18	4	56	46	151	1200	72	317	16	52	27	89
30	1.18	5	70	49	161	1350	81	357	18	59	30	98
30	1.18	6	85	52	171	1483	89	392	19	62	32	105
32	1.25	4	56	47	154	1333	80	352	17	56	28	92
32	1.25	5	70	50	164	1533	92	405	19	62	31	102
32	1.25	6	85	53	174	1667	100	440	21	69	33	108
32	1.25	7	100	55	180	1800	108	476	22.5	74	35	115

商品规格

Attribute name	Attribute value
Body Angle	High Body Angle (43 °)
Water Input	2.5"
Circle	Full & Part
Minimum Required Pressure	44 psi (3 bar)
Maximum Working Pressure	100 psi (7bar)
Minimum Required Water Flow	250 l/min
Maximum Water Flow	1000 l/min
Minimum Shooting Range	26 - 30 m
Maximum Shooting Range	41 - 50 m
Box Dimension	20x20x89 cm
Nozzles	12, 14, 16, 18, 20, 22, 24 mm
Weight	9 kg
