Photos Uploaded by Users:

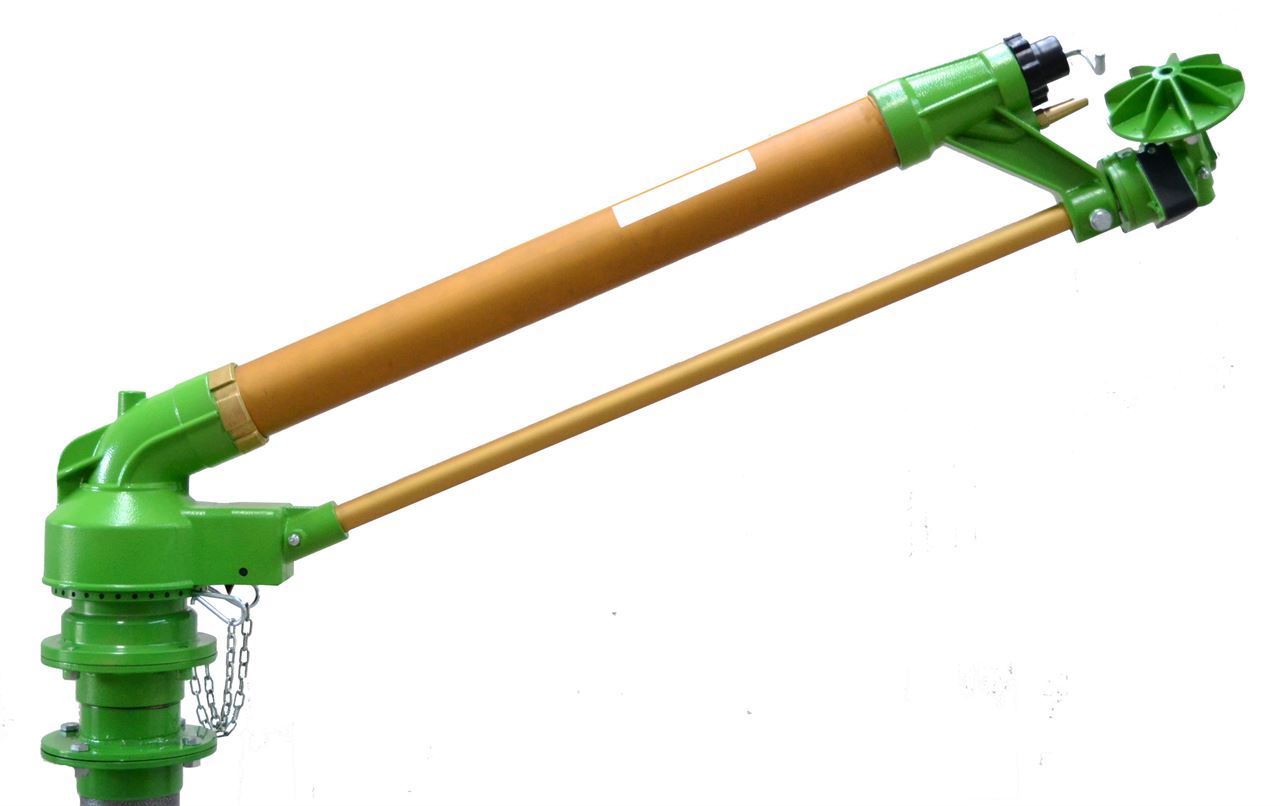

DuCaR Green 150

4 评论 | 添加你的评论

Increase your travelling irrigator's efficiency! Perfect water distribution - Longer throw!

Water Input

2.5" Female BSP

Working Pressure

44 - 100 psi

Water Flow

463 - 1814 l/min

Shooting Radius

34 - 66 m

Free Nozzles

22, 24, 26, 28, 30, 32 mm

Body Angle

24°

Box Dimensions

24 x 24 x 106 cm

Weight

10 kg

Extra Fittings

FREE Flange

Made in

Turkey

¥5,058.00

制造商: DuCaR Sprinklers

商品库存单位（SKU）: GRN150

库存信息:

有货

Shipping

交货日期 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2.5" Quick-Connect Male/Female Fittings [+¥418.00]

数量:

+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 150:

High capacity, Medium and high pressure (3 - 7 atm) and gear drive sprinkler head rotating
Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
Appropriate for all Agricultural and Industrial applications.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
20	0,78	3	44	34	112	463,3	28	122	3846	0,95	7,2
20	0,78	4	56	38	125	548,33	33	145	4534	1,12	7,3
20	0,78	5	70	42	138	616,7	37	163	5538	1,37	6,7
22	0,86	3	44	37	121	566,7	34	150	4534	1,12	7,5
22	0,86	4	56	40	131	680,0	41	180	5024	1,24	8,1
22	0,86	5	70	44	144	753,3	45	199	6079	1,50	7,4
22	0,86	6	85	47	154	818,3	49	216	6936	1,71	7,1
24	0,94	4	44	43	141	730	43,74	193	5806	1,43	7,5
24	0,94	5	56	49	161	815	48,90	215	7539	1,86	6,5
24	0,94	6	70	52	171	893	53,58	236	8491	2,10	6,3
26	1,02	4	56	49	161	856	51,36	226	7539	1,86	6,8
26	1,02	5	70	50	164	957	57,42	253	7850	1,94	7,3
26	1,02	6	85	54	177	1048	62,88	277	9156	2,26	6,9
28	1,1	4	56	51	167	992	59,52	262	8167	2,02	7,3
28	1,1	5	70	55	180	1109	66,54	293	9499	2,35	7,0
28	1,1	6	85	58	190	1215	72,9	321	10563	2,61	6,9
30	1,18	5	70	56	184	1222	73,32	323	9847	2,43	7,4
30	1,18	6	85	62	203	1393	83,58	368	12070	2,98	6,9
30	1,18	7	100	64	210	1505	90,3	398	12861	3,18	7,0
32	1,25	5	85	62	203	1449	86,94	383	12070	2,98	7,2
32	1,25	6	100	64	210	1587	95,22	419	12861	3,18	7,4
32	1,25	7	100	66	216	1814	108,84	479	13678	3,38	8,0

Download Catalogue

Some unique benefits of DuCaR Green 150:

High capacity, Medium and high pressure (3 - 7 atm) and gear drive sprinkler head rotating
Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
It rotates full and part circle in the same speed.
The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
Appropriate for all Agricultural and Industrial applications.
Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
20	0,78	3	44	34	112	463,3	28	122	3846	0,95	7,2
20	0,78	4	56	38	125	548,33	33	145	4534	1,12	7,3
20	0,78	5	70	42	138	616,7	37	163	5538	1,37	6,7
22	0,86	3	44	37	121	566,7	34	150	4534	1,12	7,5
22	0,86	4	56	40	131	680,0	41	180	5024	1,24	8,1
22	0,86	5	70	44	144	753,3	45	199	6079	1,50	7,4
22	0,86	6	85	47	154	818,3	49	216	6936	1,71	7,1
24	0,94	4	44	43	141	730	43,74	193	5806	1,43	7,5
24	0,94	5	56	49	161	815	48,90	215	7539	1,86	6,5
24	0,94	6	70	52	171	893	53,58	236	8491	2,10	6,3
26	1,02	4	56	49	161	856	51,36	226	7539	1,86	6,8
26	1,02	5	70	50	164	957	57,42	253	7850	1,94	7,3
26	1,02	6	85	54	177	1048	62,88	277	9156	2,26	6,9
28	1,1	4	56	51	167	992	59,52	262	8167	2,02	7,3
28	1,1	5	70	55	180	1109	66,54	293	9499	2,35	7,0
28	1,1	6	85	58	190	1215	72,9	321	10563	2,61	6,9
30	1,18	5	70	56	184	1222	73,32	323	9847	2,43	7,4
30	1,18	6	85	62	203	1393	83,58	368	12070	2,98	6,9
30	1,18	7	100	64	210	1505	90,3	398	12861	3,18	7,0
32	1,25	5	85	62	203	1449	86,94	383	12070	2,98	7,2
32	1,25	6	100	64	210	1587	95,22	419	12861	3,18	7,4
32	1,25	7	100	66	216	1814	108,84	479	13678	3,38	8,0

Download Catalogue

商品规格

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2.5"
Circle	Full & Part
Minimum Required Pressure	44 psi (3 bar)
Maximum Working Pressure	100 psi (7bar)
Minimum Required Water Flow	460 l/min
Maximum Water Flow	1850 l/min
Minimum Shooting Range	31 - 35 m
Maximum Shooting Range	61 - 85 m
Box Dimension	24 x 24 x 106 cm
Nozzles	20, 22, 24, 26, 28, 30, 32 mm
Weight	10 kg

Contact Info

	水输入量	:	2" 雌性 BSP
	操作压力	:	44 - 100 psi
	所需水量	:	246 - 1266 l/min
	拍摄范围（半径）	:	34 - 53 m
	喷嘴	:	14, 16, 18, 20, 22, 24, 26, 28 mm
	机身角	:	27°
	盒子大小	:	22x22x89 cm
	重量	:	8 kg
适用于污水灌溉

水输入量	:	3" 雌性 BSP
操作压力	:	44 - 114 psi
所需水量	:	720- 3350 l/min
拍摄范围（半径）	:	41 - 84 m
喷嘴	:	25, 28, 30, 32, 34, 36 mm
机身角	:	23°
盒子大小	:	20x33x130 cm
重量	:	16 kg
免费快速接头	:	是
法兰连接	:	是
