DuCaR Green 70

8 评论 | 添加你的评论

Low-Cost - Long Range & Perfect water uniformity

Water Input

1.5" Female BSP

Working Pressure

29 - 85 psi

Water Flow

108 - 532 l/min

Shooting Radius

18 - 36 m

Free Nozzles

10, 12, 14, 16, 18 mm

Body Angle

24°

Box Dimensions

21x21x71 cm

Weight

5.5 kg

Made in

Turkey

现价: ¥2,386.00

原价: ¥2,700.00

制造商: DuCaR Sprinklers

商品库存单位（SKU）: GRN70

Shipping

交货日期 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 1.5" Wheeled Sprinkler Cart [+¥1,591.00]
DuCaR 1.5" 4-Legged Pro Connection Stand [+¥1,446.00]
DuCaR 1.5" Quick-Connect Fittings for Impact or Gear Drive Sprinklers [+¥231.00]
DuCaR 2" Inlet / 1.5" Outlet Quick Coupling [+¥333.00]
100 m, Ko-Hi Flex Red 1.5" (40mm) PVC Double Layer Lay flat Hose (10 bar pressure) [+¥2,169.00]

数量:

+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

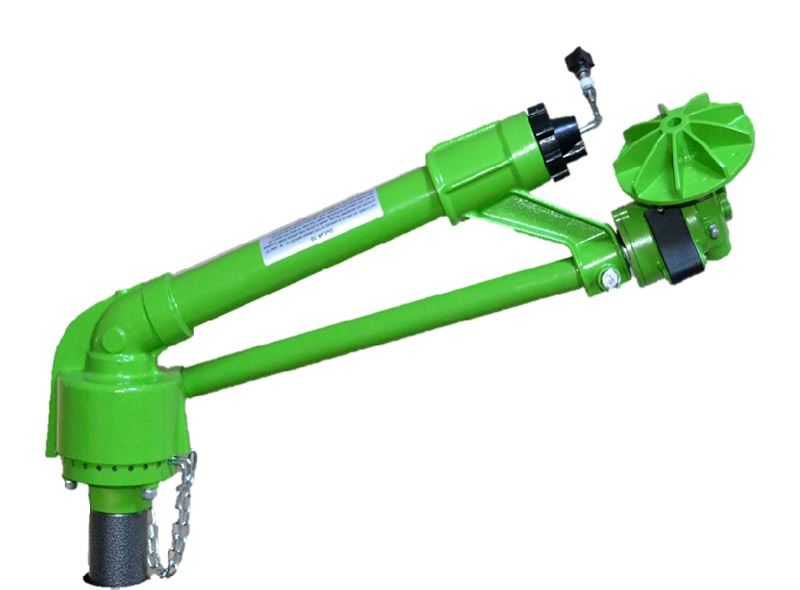

Ducar Green 70 is a gear driven, part and full circle sprinkler which provides perfect irrigation with the performance, technology, reliability and the feature of uniform coverage at a great price!

Some unique benefits of Green 70:

Rotable sprinkler heads with gearbox and adjustable for full or part circle coverage, featuring medium and high pressure operations (2 to 6 Bars), and high efficiency.
This model is an introduction to the economical series. Changeable nozzles for a perfect irrigation with evenly distributed water
Suitable for using in any type of delicate or rough agricultural applications; widely used especially on wheat, maize, and clover.
Makes full and semi-circle turns at the same speed;
Ideal for agricultural areas, sport fields, and mines; suitable for portable and fixed systems.
It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	18	59	108	6,5	29	1017	0,25	6,4
10	.39	3	44	21	69	125	7,5	33	1385	0,34	5,4
10	.39	4	56	23	75	143	8,6	38	1661	0,41	5,2
12	.47	2	29	20	66	152	9,1	40	1256	0,31	7,2
12	.47	3	44	24	79	182	10,9	48	1809	0,45	6,0
12	.47	4	56	27	89	210	12,6	55	2289	0,57	5,5
12	.47	5	70	30	98	235	14,1	62	2826	0,70	4,99
14	.55	2	29	21	69	195	11,7	52	1385	0,34	8,45
14	.55	3	44	25	82	238	14,3	63	1963	0,48	7,3
14	.55	4	56	29	95	277	16,6	73	2641	0,65	6,3
14	.55	5	70	31	102	308	18,5	81	3018	0,75	6,1
16	.62	2	29	22	72	247	14,8	65	1520	0,38	9,7
16	.62	3	44	26	85	303	18,2	80	2123	0,52	8,6
16	.62	4	56	30	98	350	21	92	2826	0,70	7,4
16	.62	5	70	33	108	390	23,4	103	3419	0,84	6,8
18	.70	3	44	28	92	378	22,7	100	2462	0,61	9,2
18	.70	4	56	31	102	437	26,2	115	3018	0,75	8,7
18	.70	5	70	34	112	487	29,2	129	3630	0,90	8,0
18	.70	6	85	36	118	532	31,9	140	4069	1,01	7,8

Download Catalogue

Rotable sprinkler heads with gearbox and adjustable for full or part circle coverage, featuring medium and high pressure operations (2 to 6 Bars), and high efficiency.
This model is an introduction to the economical series. Changeable nozzles for a perfect irrigation with evenly distributed water
Suitable for using in any type of delicate or rough agricultural applications; widely used especially on wheat, maize, and clover.
Makes full and semi-circle turns at the same speed;
Ideal for agricultural areas, sport fields, and mines; suitable for portable and fixed systems.
It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	18	59	108	6,5	29	1017	0,25	6,4
10	.39	3	44	21	69	125	7,5	33	1385	0,34	5,4
10	.39	4	56	23	75	143	8,6	38	1661	0,41	5,2
12	.47	2	29	20	66	152	9,1	40	1256	0,31	7,2
12	.47	3	44	24	79	182	10,9	48	1809	0,45	6,0
12	.47	4	56	27	89	210	12,6	55	2289	0,57	5,5
12	.47	5	70	30	98	235	14,1	62	2826	0,70	4,99
14	.55	2	29	21	69	195	11,7	52	1385	0,34	8,45
14	.55	3	44	25	82	238	14,3	63	1963	0,48	7,3
14	.55	4	56	29	95	277	16,6	73	2641	0,65	6,3
14	.55	5	70	31	102	308	18,5	81	3018	0,75	6,1
16	.62	2	29	22	72	247	14,8	65	1520	0,38	9,7
16	.62	3	44	26	85	303	18,2	80	2123	0,52	8,6
16	.62	4	56	30	98	350	21	92	2826	0,70	7,4
16	.62	5	70	33	108	390	23,4	103	3419	0,84	6,8
18	.70	3	44	28	92	378	22,7	100	2462	0,61	9,2
18	.70	4	56	31	102	437	26,2	115	3018	0,75	8,7
18	.70	5	70	34	112	487	29,2	129	3630	0,90	8,0
18	.70	6	85	36	118	532	31,9	140	4069	1,01	7,8

Download Catalogue

商品规格

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	100 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	21x21x71 cm
Nozzles	10, 12, 14, 16, 18 mm
Weight	5.4 kg
