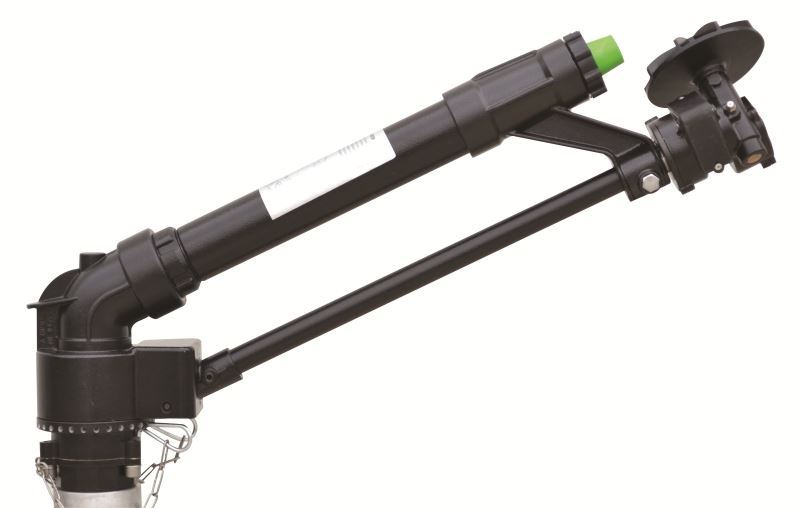

DuCaR Black JET

1 评论 | 添加你的评论

Designed for ACIDIC and SALTY water irrigation

Water Input

2" Female BSP

Working Pressure

37 - 85 psi

Water Flow

220 - 885 l/min

Shooting Radius

22 - 50 m

Free Nozzles

12, 14, 16, 18, 20, 22, 24 mm

Body Angle

25°

Box Dimensions

20x20x75 cm

Weight

7.3 kg

Made in

Turkey

¥5,589.00

制造商: DuCaR Sprinklers

商品库存单位（SKU）: BLCJET

Shipping

交货日期 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

数量:

+ -

BLACK JET is a special product, which has been developed for acidic and abrasive waters. The inside and outside of the product has been coated with powder paint, totally resistant against chemicals. Thus, the detrimental effect of the chemicals has been removed. The moving and turning parts have been produced of stainless steels and engineering plastics, which are resistant against chemicals. Although the water line is stainless steel, it is also coated with special powder paint. At metal fittings, which contact the water, stainless steel has been used. These headers are used mainly for industrial applications, engineering with acidic and abrasive waters and dust suppression rather than the agricultural use. You can suppress the dust with this product at coal stores near the sea shore with sea water. DuCaR Black is also suitable for leach fields in the mining. The materials used have been chosen from materials, resistant against abrasive fluids and chemicals, which are used in the leach fields. The adjustable jet breaker makes it possible to control the droplet size. This product provides saving on time and reduces your work. It is also suitable for gold, silver and copper mines. Please contact us for more information.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	2.5	37	24	79	220	13	58	1808	0.45	7.3
14	0.55	3	44	26	85	233.3	14	62	2122	0.52	6.6
14	0.55	4	56	29	95	270	16	71	2640	0.65	6.1
14	0.55	5	70	32	105	305	18	81	3215	0,79	5,7
16	0.62	2	29	26	85	241.7	15	64	2122	0.52	6.8
16	0.62	3	44	29	95	296.7	18	78	2640	0.65	6.7
16	0.62	4	56	31	100	341.7	21	90	2920	0.72	7.0
16	0.62	5	70	33	108	386.7	23	102	3419	0.84	6.8
18	0.70	3	44	32	105	375	22.5	99	3215	0.79	7.0
18	0.70	4	56	34	112	438.3	26.3	116	3846	0.95	6.8
18	0.70	5	70	35	115	470	28.2	124	4298	1.06	6.6
18	0.70	6	85	36	118	521.7	31.3	138	5024	1.24	6.2
20	0.78	3	44	34	112	445	26.7	118	3846	0.95	6.9
20	0.78	4	56	35	115	536.7	32.2	142	4298	1.06	7.5
20	0.78	5	70	36	118	591.7	35.5	156	5538	1.37	6.4
22	0.86	3	44	36	118	556.7	33.4	147	3846	0.95	8.7
22	0.86	4	56	37	121	641.7	38.5	170	4298	1.06	9.0
22	0.86	5	70	38	125	716.7	43	189	5024	1.24	8.6
22	0.86	6	85	39	128	786.7	47.2	208	5538	1.37	8.5
24	0.94	4	56	38	125	771.7	46.3	204	5805	1.43	8.0
24	0.94	5	70	39	128	801.7	48.1	212	6358	1.57	7.6
24	0.94	6	85	41	134	885	53.1	234	5278	1.30	10.1

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	2.5	37	24	79	220	13	58	1808	0.45	7.3
14	0.55	3	44	26	85	233.3	14	62	2122	0.52	6.6
14	0.55	4	56	29	95	270	16	71	2640	0.65	6.1
14	0.55	5	70	32	105	305	18	81	3215	0,79	5,7
16	0.62	2	29	26	85	241.7	15	64	2122	0.52	6.8
16	0.62	3	44	29	95	296.7	18	78	2640	0.65	6.7
16	0.62	4	56	31	100	341.7	21	90	2920	0.72	7.0
16	0.62	5	70	33	108	386.7	23	102	3419	0.84	6.8
18	0.70	3	44	32	105	375	22.5	99	3215	0.79	7.0
18	0.70	4	56	34	112	438.3	26.3	116	3846	0.95	6.8
18	0.70	5	70	35	115	470	28.2	124	4298	1.06	6.6
18	0.70	6	85	36	118	521.7	31.3	138	5024	1.24	6.2
20	0.78	3	44	34	112	445	26.7	118	3846	0.95	6.9
20	0.78	4	56	35	115	536.7	32.2	142	4298	1.06	7.5
20	0.78	5	70	36	118	591.7	35.5	156	5538	1.37	6.4
22	0.86	3	44	36	118	556.7	33.4	147	3846	0.95	8.7
22	0.86	4	56	37	121	641.7	38.5	170	4298	1.06	9.0
22	0.86	5	70	38	125	716.7	43	189	5024	1.24	8.6
22	0.86	6	85	39	128	786.7	47.2	208	5538	1.37	8.5
24	0.94	4	56	38	125	771.7	46.3	204	5805	1.43	8.0
24	0.94	5	70	39	128	801.7	48.1	212	6358	1.57	7.6
24	0.94	6	85	41	134	885	53.1	234	5278	1.30	10.1

商品规格

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full & Part
Minimum Required Pressure	37 psi (2.5 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	220 l/min
Maximum Water Flow	850 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	41 - 50 m
Box Dimension	20x20x75 cm
Nozzles	12, 14, 16, 18, 20, 22, 24 mm
Weight	7.3 kg

Contact Info

水输入量	:	2" 雌性 BSP
操作压力	:	44 - 100 psi
所需水量	:	250 - 967 l/min
拍摄范围（半径）	:	27 - 47 m
喷嘴	:	12, 14, 16, 18, 20, 22, 24 mm
机身角	:	43°
盒子大小	:	20x20x89 cm
重量	:	9 kg
