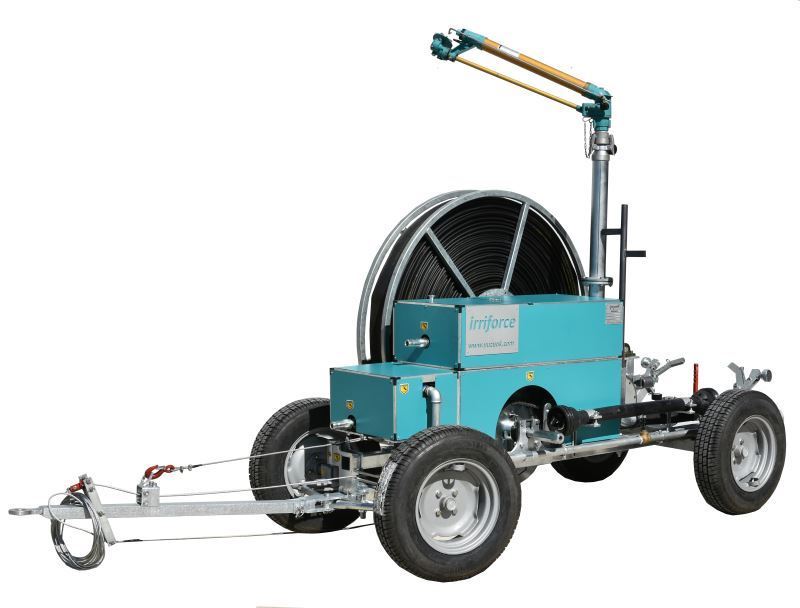

IrriCruiser COMFORT Travelling Irrigator

The most efficient and cost effective heavy duty, easy to use, turbine drive MEDIUM size soft hose travelling irrigator with FREE 200 m of 3" made in Norway drag hose.

Run Length
:
400 m
Lay Flat Hose
:
3" 200 m Premium Drag Hose
Working Pressure
:
50 - 85 psi
Water Flow
:
400 - 900 l/min
Effective Spray Width
:
60 - 90 m
Total Irrigated Area
:
435 X 490 m = 213,150 m² (21 Hectare) in 7 days
Speed
:
10 - 60 m/hour
Sprinkler
:
DuCaR JET 55
Mechanism
:
Turbine drive, Single Speed Gear Box & Speed Adjustment System with Automatic Travel Shut Off
Weight
:
800 kg
Construction
:
HOT DIP galvanised, heavy duty welded chassis and hose reel
Made in
:
Turkey
电话报价
制造商: DuCaR Sprinklers
商品库存单位(SKU): IrriCruiser-Comfort-3000-400
有货
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

DuCaR IrriCruiser COMFORT - New Generation Travelling Irrigator

APPLICATIONS

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Hot dip galvanised hose reel & chassis
  • PATENTED Speed Adjustment and By-Pass Mechanism
  • Travel shut-off mechanism
  • High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
  • Single speed gear box
  • Sensitive speed control: Extremely wide range of speed for any crop and application.
  • Manual brake system
  • PTO driven integrated hose reel
  • PTO driven PURGE pump allows you to easily empty the hose before rewinding the hose
  • Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
  • Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
  • Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Sensitive wheel system
  • NO EXHAUST WATER - NO PISTON - NO TOO MANY MOVING PARTS
  • Comes with 200m of 2.5 or 3"Premium Quality Norwegian Made Drag Hose
  • Designed in Australia, made in Turkey



New Generation DuCaR IrriCruiser Turbine System

  • The turbine provides the high torque to pull the DuCaR IrriCruiser & Hose along the cable in tough conditions.
  • DuCaR IrriCruiser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
  • Our PATENTED by-pass line system allows you to adjust the water flow rate in the turbine. Therefore, you can simply adjust the speed and run the machine only required amount of water flow rate.
  • The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCruiser with infinite range of travel speeds to suit different crop water requirements.
  • The travelling speed is read on accurate tachometer.
  • No filters required for the turbine drive.
  • No exhaust water from the turbine drive, all water is distributed through the sprinkler.

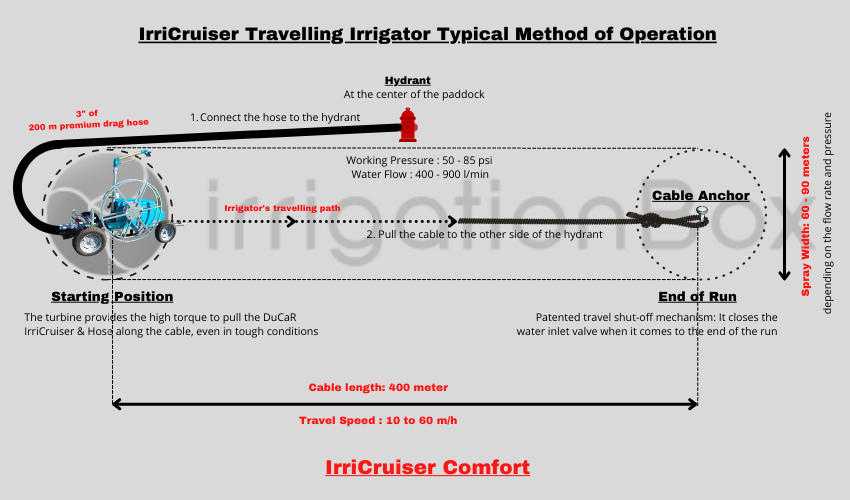

DuCaR IrriCruiser COMFORT Typical Method of Operation

DuCaR IrriCruiser COMFORT Typical Method of Operation

DuCaR IrriCruiser COMFORT on operation

How to setup DuCaR IrriCruiser COMFORT?

DuCaR IrriCruiser COMFORT 360 degree view

DuCaR IrriCruiser COMFORT Setup Introduction

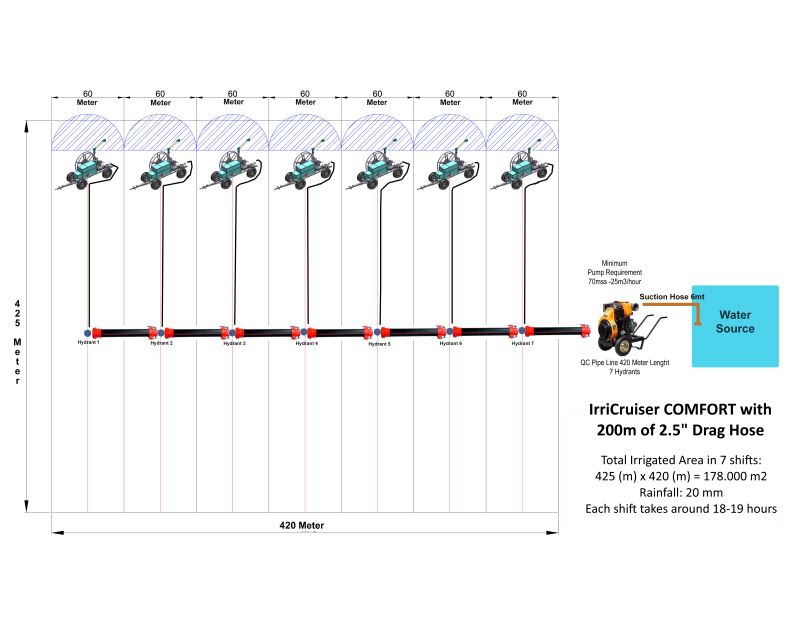

Irricruiser operation illustration





Technical Specifications of DuCaR IrriCruiser COMFORT

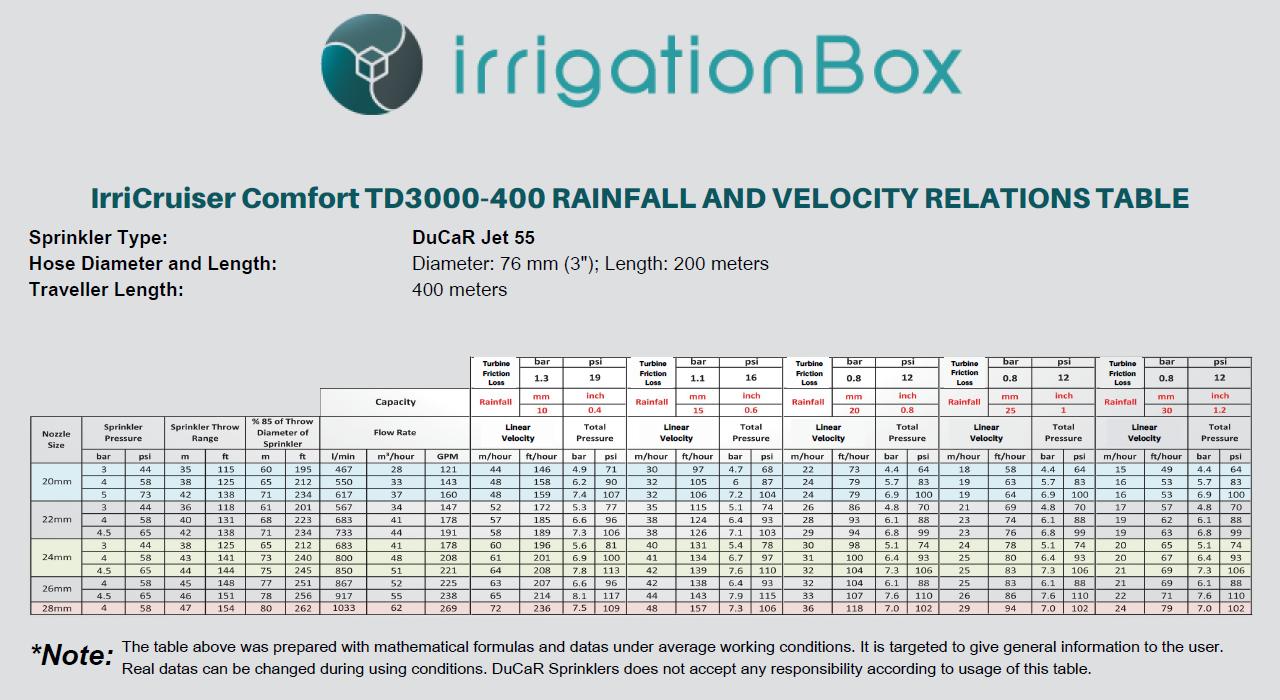

IrriCruiser-comfort-travelling-irrigator-rainfall-and-velocity-relations-table

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
20 0.78 3 44 35 115 463,3 28 122 3847 0.95 7.2
20 0.78 4 56 38 125 548.3 33 145 4534 1.12 7.3
20 0.78 5 70 42 138 616.7 37 163 5538 1.37 6.7
22 0.86 4 56 40 131 680.0 41 180 5024 1.24 8.1
22 0.86 5 70 44 144 753.3 45 199 6079 1.50 7.4
22 0.86 6 85 47 154 818.3 49 216 6936 1.71 7.1
24 0.94 5 70 46 151 886.7 53 234 6644 1.64 8.0
24 0.94 6 85 48 157 958.3 58 253 7235 1.79 7.9
24 0.94 7 100 50 164 1020.0 61 269 7850 1.94 7.8
26 1.00 4 56 45 148 866.7 52 229 6359 1.57 8.2
26 1.00 5 70 48 157 966.7 58 255 7235 1.79 8.0
26 1.00 6 85 51 167 1066.7 64 282 8167 2.02 7.8
28 1.10 5 70 50 164 1116.7 67 295 7850 1.94 8.5
28 1.10 6 85 53 174 1233.3 74 326 8820 2.18 8.4
28 1.10 7 100 55 180 1358.3 82 359 9499 2.35 8.6
