Pressure Sustaining Control Valve

争取评论头条

Pressure Sustaining Valves maintains valve upstream pressure value constant and control upstream pressure to provide a good condition operating for pump systems

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

¥2,139.00

制造商: Armas Valves & Filters

商品库存单位（SKU）: 600-Series-PS

Shipping

交货日期 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Threaded

Not available
Grooved End

Not available
Flanged

Not available

Threaded Valve Size: *

Threaded Valve Max Working Pressure: *

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

数量:

+ -

Armas 600 Series - Pressure Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

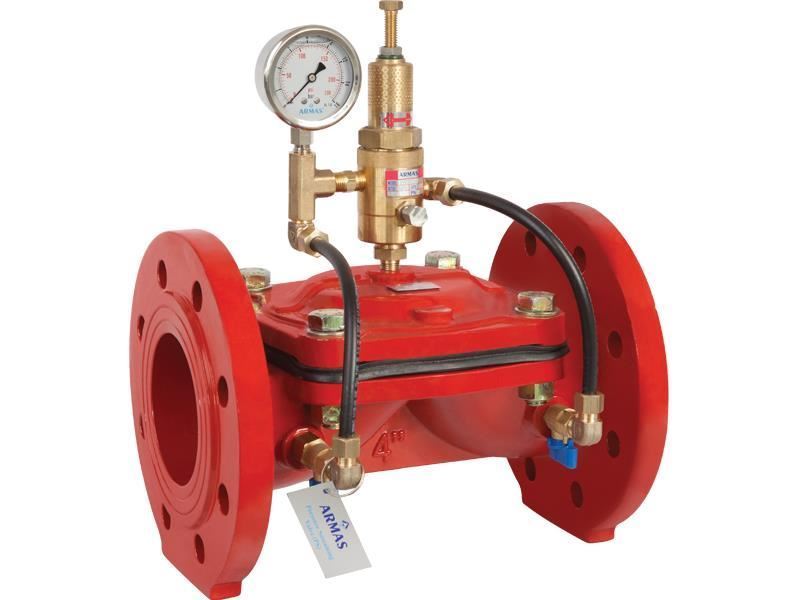

ARMAS 600 Series Pressure Sustaining Control Valve

Armas Pressure Sustaining Control Valve maintains valve upstream pressure value constant. Valve is opened when line pressure reaches adjusted valve pressure level. It ensures that pump motor within pumping systems will start without load. It also prevents positive pressure waves caused by pump during start-up. Valve controls upstream pressure value continuously and keeps it in a constant value without being affected from changes in flow rates. When no flow exists, it is closed by itself as fully tightness.

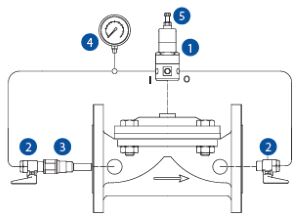

COMPONENTS:

Pressure Reducing Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Gauge
Adjustment Bolt

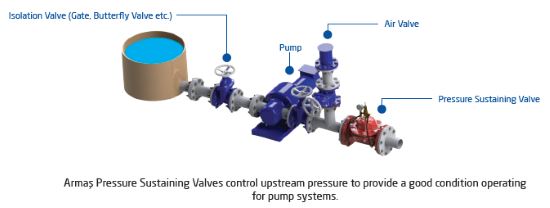

ARMAS 600 Series Pressure Sustaining Control Valve Sample Application

Armas 600 Series - Pressure Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

ARMAS 600 Series Pressure Sustaining Control Valve

COMPONENTS:

Pressure Reducing Pilot Valve
Ball Valves
In-line Finger Filter
Pressure Gauge
Adjustment Bolt

ARMAS 600 Series Pressure Sustaining Control Valve Sample Application
