Technical Specifications

Model600 series flanged600 series threaded600 series threaded angle600 series grooved end
ConnectionFlangedThreaded - (BSPT or NPT)

Threaded Angle - (BSPT or NPT)

Grooved End
Hydraulic ConnectionsReinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Reinforced Nylon (Air Brake)
Hydraulic Pipe-SAE J 844
Actuator TypeDiaphragm Closing Type with Single Control Chamber and Diaphragm ActuatorDiaphragm Closing Type with Single Control Chamber and Diaphragm ActuatorDiaphragm Closing Type with Single Control Chamber and Diaphragm ActuatorDiaphragm Closing Type with Single Control Chamber and Diaphragm Actuator
MaterialGG25 or GG40GG25 or GG40GG25 or GG40GG25 or GG40
Pressure Range16 bar (240 psi) or 25 bar (360 psi)10 bar (145 psi) or 16 bar (240 psi) 10 bar (145 psi) or 16 bar (240 psi)10 bar (145 psi) - 16 bar (240 psi) or 25 bar (360 psi)
Available Sizesinchmminchmminchmminchmm
2"501½"402"502"50
2½"652"502½"652½"65
3"x2"80x502½"653"803"80
3"803"x2"80x504"100
4"1003"80
5"125
6"150
8"200
10"250
12"300

Flanged Connection Valve Dimensions

Armas 600 series model 67 valve dimensions 1 Armas 600 series model 67 valve dimensions 2 Armas 600 series model 67 valve dimensions 3DNDLHWeight
inchmminchmminchmminchmmkg
(16 bar)
kg
(25 bar)
2"506.6166.57.9"2006.1"15478.5
2½"6573186.58.4"2146.4"1629.511
3"x2"80x507.9"2008.5"2156.3"1601012.5
3"808"20211.5"2917.2"18216.521
4"1009.2"23412"3057.7"194.518.523.5
5"12510"253.514.5"3698"2042428
6"15011.4"29015.9"40312.8"3251054
8"20013.5"34219.4"49415.7"40080.5108
10"25016.2"411.524.1"61118.2"463116132
12"30019.5"49524"60919.2"487.5156175

Threaded Connection Valve Dimensions

Armas 600 series model 66 valve dimensionsDNDLHWeight
inchmminchmminchmminchmmkg
(10 bar)
kg
(16 bar)
1½"402.6666.3"1613.4"8734
2"503.2827.2"1824.3"10845.2
2½"653.7"938.5"2164.4"1124.56.5
3"x2"80x504.3"1108.7"2204.7"1205.58
3"804.3"11012.7"3234.9"1251113

Threaded Connection Angle Valve Dimensions

Armas 600 series model 64 valve dimensionsDNDLHWeight
inchmminchmminchmminchmmkg
(16 bar)
2"503.1805.1"1305.3"1353
2½"653.7936.4"1636.4"1635
3"804.3"1108.3"2128.8"22311

Grooved End Connection Valve Dimensions

Armas 600 series model 63 valve dimensionsDNDLHWeight
inchmminchmminchmminchmmkg
(16 bar)
kg
(25 bar)
2"502.4617.3"1854"101.534.3
2½"653768.6"2184.3"10845.7
3"803.5"8912.1"3084.9"1251113
4"1004.5"11412.3"3135.5"138.51316.2

Hydraulic Performance Chart

Valve Sizemm40506580100125150200250300
inch1½"2"2½"3"4"5"6"8"10"12"
Kvm3/h @ 1 bar35505013020020045080012501800
Cvgpm @ 1 psi45606015023123152092514502080
Kv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in m3/h @ 1 bar)
Cv: Valve Flow Coefficient (fluid passing under 1 bar pressure difference in gpm @ 1 bar)

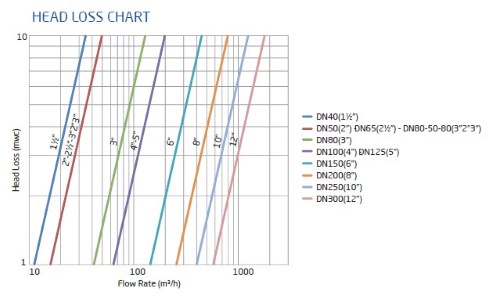

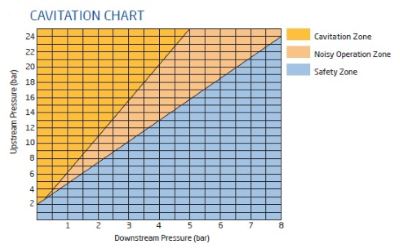

600 series head loss chart600 series Cavitation chart

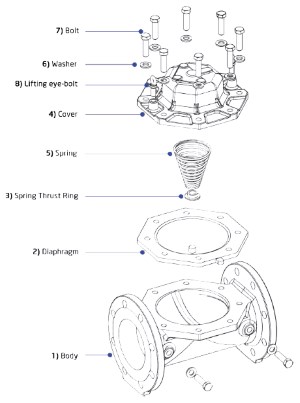

Material List

Armas 600 series valve partsPart NoPart NameMaterial
1BodyStandard: GG25 (Cast Iron)
Optional: GGG40 (Ductile Iron)
2DiaphragmStandard: Nylon reinforced Natural Rubber
Optional: EPDM, Nitrile, Neoprene
3Spring Thrust RingPolyamide
4CoverStandard: GG25 (Cast Iron)
Optional: GGG40 (Ductile Iron)
5SpringStandard: SST 302
Optional: SST 316
6WasherStandard: Coated Steel
Optional: SST
7BoltStandard: SST 302
Optional: SST 316
8Lifting eye-boltStandard: Coated Steel
Optional: SST
9Position Ind. Kit (Optional)Standard: SST+Brass
