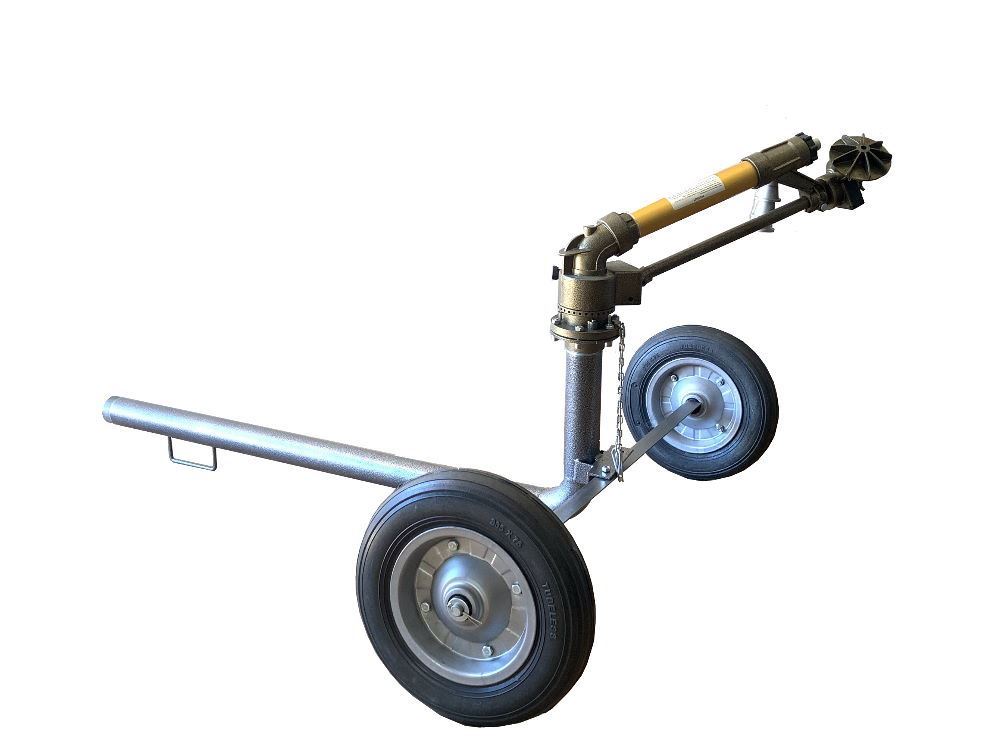

DuCaR Pivot JET w/ Wheeled Cart

1 评论 | 添加你的评论

Specifically designed for low water flow rate applications! Thanks to its low body angle, it is perfect for windy areas! Suitable for any type hobby garden and agricultural irrigation applications.

Water Input

2" Flange Connection

Working Pressure

30 - 70 psi

Water Flow

133 - 717 l/min

Shooting Radius

19 - 36 m

Free Nozzles

12, 14, 16, 18 mm

Body Angle

18°

What's inside the box

DuCaR Pivot Jet with aluminium nozzles, flange to 2" female threaded adapter and 2" wheeled cart with extendable legs

Made in

Turkey

电话报价

制造商: DuCaR Sprinklers

商品库存单位（SKU）: PVTJET-WC20

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

数量:

+ -

The DuCaR Pivot Jet is perfect for low to medium water flow rate applications. It has very low body angle to increase the shooting range in windy areas!

Gear drive, medium pressure (2 – 6 bar) and low to mid capacity sprinkler head.

Slow reverse rotation allows it to rotate full and semi circle in the same speed.

Excellent and unique water distribution

Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

Non-clogging nozzles make it appropriate for use as END-GUN at the portable irrigation machines, carts and pivots.

The DuCaR Pivot Jet sprinkler head comes with 4 pcs of aluminium nozzles, flange to 2" female threaded adapter and 2" wheeled cart with extendable legs.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	0,47	2	30	19	61	133	8	35	1133	0,28	7,1
12	0,47	2,5	37	20	66	162	9,7	43	1256	0,31	7,7
12	0,47	3	44	22	71	177	10,6	47	1451	0,36	7,3
12	0,47	4	56	24	77	203	12,2	54	1734	0,43	7,0
14	0,55	2,5	37	22	71	220	13,2	58	1451	0,36	9,1
14	0,55	3	44	24	77	233	14	62	1734	0,43	8,1
14	0,55	4	56	26	85	270	16,2	71	2122	0,52	7,6
14	0,55	5	70	29	95	305	18,3	81	2640	0,65	6,9
16	0,62	2	29	24	77	242	14,5	64	1734	0,43	8,4
16	0,62	3	44	26	85	297	17,8	78	2122	0,52	8,4
16	0,62	4	56	28	90	342	20,5	90	2375	0,59	8,6
16	0,62	5	70	30	98	387	23,2	102	2826	0,70	8,2
18	0,70	3	44	29	95	375	22,5	99	2640	0,65	8,5
18	0,70	4	56	30	98	438	26,3	116	2826	0,70	9,3
18	0,70	5	70	33	108	470	28,2	124	3215	0,79	8,8
20	0,78	3	44	32	103	445	26,7	118	3155	0,78	8,5
20	0,78	4	56	33	108	537	32,2	142	3419	0,84	9,4
20	0,78	5	70	37	121	592	35,5	156	4298	1,06	8,3
22	0,86	3	44	32	103	557	33,4	147	3155	0,78	10,6
22	0,86	4	56	34	110	642	38,5	170	3523	0,87	10,9
22	0,86	5	70	36	118	717	43	189	4069	1,01	10,6
