Villiers 12HP Diesel Water Pumps - High Pressure High Volume

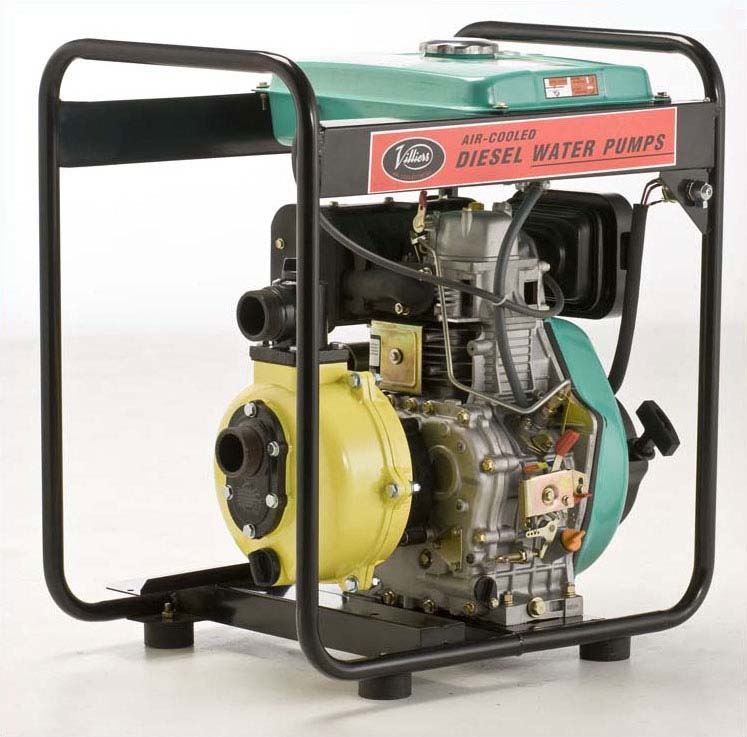

Villiers 12HP Diesel Engine Driven High Pressure High Volume Water Pumps

Villiers F460FDE/200B: 2" Suction/Discharge - 600 l/min Max Capacity - 50 m Max Head

Villiers F460FDE/80RC: 3" Suction/Discharge - 600 l/min Max Capacity - 70 m Max Head

Villiers F460FDE/HPTI (Twin Impeller): 1.5" Suction/Discharge - 500 l/min Max Capacity - 90 m Max Head

Long range fuel tank, 4 hour running. Keyless ignition with electric start recoil backup.

Great for use in the construction, agricultural , hire and fire protection industry and anywhere there is a need to move water or other liquids quickly and efficiently.

The fire pump range includes both single and twin impeller models as well as a special single impeller model which produces both high pressure and high volume.

This is driven by a 12hp electric start Villiers diesel engine. Fire pumps are sold in roll frames as standard.

Also used in homes and factories in remote areas to provide water supply to fire sprinker systems.

Features

• pressure die cast aluminium
• pump body
• cast iron volute diffuser
• cast iron discharge caps
• simply-charged, self-priming design
• the 200B pumps have a solid one piece aluminium impeller
• 12.5 L long range fuel tank
• all Villiers engines have a 2 year warranty

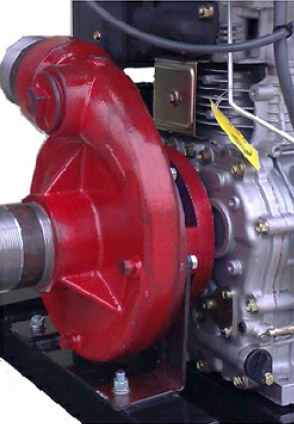

Villiers F460FDE / 80RC

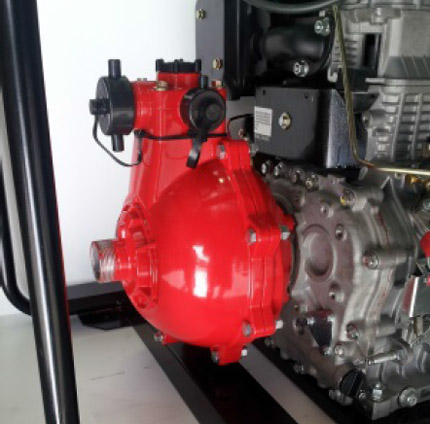

Villiers F460FDE / HPTI TWIN-IMPELLER

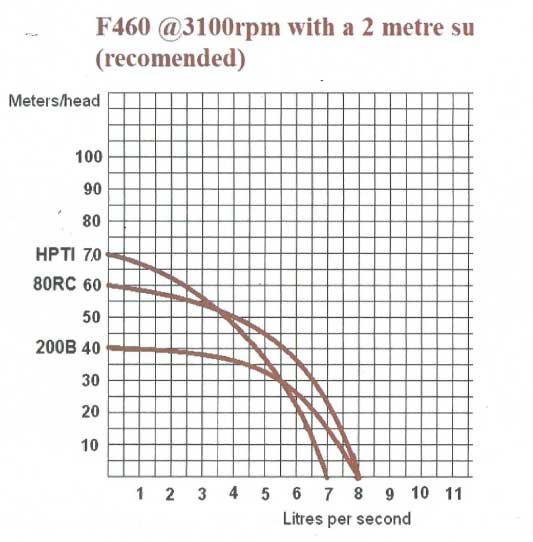

Villiers Diesel High Pressure High Volume Pumps Technical Specifications

Pump Model	Engine Power (HP)	Inlet X Outlet	Max Capacity	Max Head	Max Speed	Max Output	Type	Fuel Consumption	Speed (RPM)	m³/h	7.2	10.8	14.4	18	21.6	25.2	28.8	32.4
										l/min	120	180	240	300	360	420	480	540
										l/s	2	3	4	5	6	7	8	9
F460FDE/200B	Villiers 12hp Diesel with electric/recoil start	2" x 2"	600 l/min	50 m (70 psi)	3600 RPM	12 HP	Single cylinder, 4 stroke air cooled, direct injection diesel	210 g/hp.	3100	Head (m)	40	38	36	34	28	15	10
									3600	Head (m)	50	48	46	44	38	25	20	10
F460FDE/80RC	Villiers 12hp Diesel with electric/recoil start	3" x 3"	600 l/min	70 m (95 psi)	3600 RPM	12 HP	Single cylinder, 4 stroke air cooled, direct injection diesel	210 g/hp.	3100	Head (m)	57	55	51	45	40	25	15
									3600	Head (m)	67	65	61	55	50	35	25	10
F460FDE/HPTI	Villiers 12hp Diesel with electric/recoil start	1.5" x 1.5"	500 l/min	90 m (105 psi)	3600 RPM	12 HP	Single cylinder, 4 stroke air cooled, direct injection diesel	210 g/hp.	3100	Head (m)	63	56	48	40	25	10
									3600	Head (m)	73	66	58	50	35	20	10
