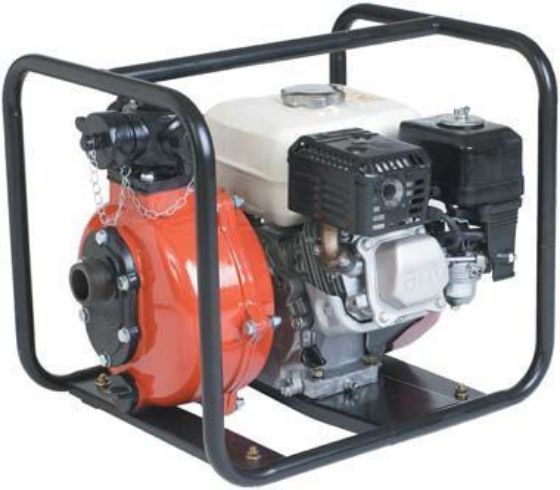

Twin Impeller Pump with Honda 5.5 HP Petrol Engine

Honda powered twin impellor, high head fire fighting pump. Suitable for general farm use or town applications.

Max Capacity
:
280 l/min
Max Head
:
75 m at 3600 RPM
Engine Power
:
Honda 5.5 HP Petrol
Suction/Discharge
:
1.5" / 1.5"
40 / 40 mm
¥6,430.00
商品库存单位(SKU): LTF40C2
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

TWIN Impeller Honda 5.5 HP PETROL Engine Driven High Performance Fire Fighting Pump

Honda GX160 5.5 HP Petrol Engine driven twin impeller pump: 200 l/min water flow @ 50m head, perfect for medium size sprinklers!

This pump can operate a DuCaR Atom 28 sprinkler head at its highest capacity to get 28m shooting range (radius)!

These fire pumps are designed for heavy duty and are suitable for firefighting duties and high pressure wash downs of equipment or farmyards. The pumps have a discharge with three outlets for multiple fire hoses.

This series has a quality wet end that is capable of larger flows than normal by using an open style
impellor. Cast iron internals make this hard to beat. Fully replaceable suction and discharge ports,
along with a full roll frame make this an excellent unit for the farm or rural home owner.

Features:

  • Flow rates up to 500 l/min.
  • Heads up to 50m.
  • Suction heads up to 5m.
  • Fluids must be clean and free from suspended abrasive particles.
  • Maximum fluid temperature: +35ºC
  • Maximum ambient temperature: +40ºC.
  • Rotational speed: Nominal speed 3000rpm, maximum speed 3600rpm.

 Installation:

The pump is to be installed in a horizontal position for both fixed and portable plants. These self priming pumps require water in the pump case only for the initial pumping operation. No water is necessary for subsequent pumping when the casing contains water. For maximum efficiency make the piping as short and straight as possible.

* Colour and shape of pumps may vary.

* Fire hose kits are also available for this range of pumps.



Technical Specifications

Engine Honda GX 160, 5.5hp, Recoil Start
Fuel Tank Capacity (L) 3.6

Suction Size

1.5" (40mm)
Discharge Size 1 x 1.5” / 2 x 1”
Max Head (M) 75

Max Flow Rate (L/min)

280
Pump Body Alloy
Fluid Handling Clean Water

Weight (Kg)

26

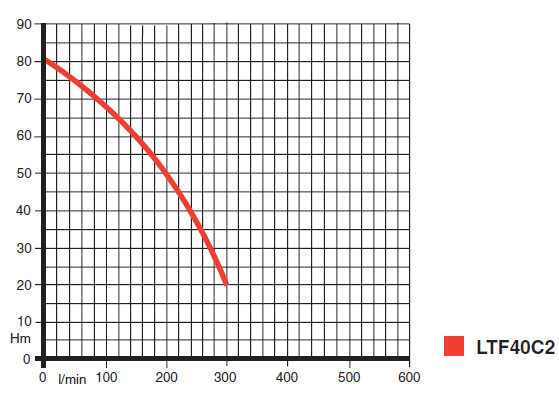

Twin impeller 5.5 HP Petrol Pump Curve

TWIN Impeller Honda 5.5 HP PETROL Engine Driven High Performance Fire Fighting Pump

Honda GX160 5.5 HP Petrol Engine driven twin impeller pump: 200 l/min water flow @ 50m head, perfect for medium size sprinklers!

This pump can operate a DuCaR Atom 28 sprinkler head at its highest capacity to get 28m shooting range (radius)!

These fire pumps are designed for heavy duty and are suitable for firefighting duties and high pressure wash downs of equipment or farmyards. The pumps have a discharge with three outlets for multiple fire hoses.

This series has a quality wet end that is capable of larger flows than normal by using an open style
impellor. Cast iron internals make this hard to beat. Fully replaceable suction and discharge ports,
along with a full roll frame make this an excellent unit for the farm or rural home owner.

Features:

  • Flow rates up to 500 l/min.
  • Heads up to 50m.
  • Suction heads up to 5m.
  • Fluids must be clean and free from suspended abrasive particles.
  • Maximum fluid temperature: +35ºC
  • Maximum ambient temperature: +40ºC.
  • Rotational speed: Nominal speed 3000rpm, maximum speed 3600rpm.

 Installation:

The pump is to be installed in a horizontal position for both fixed and portable plants. These self priming pumps require water in the pump case only for the initial pumping operation. No water is necessary for subsequent pumping when the casing contains water. For maximum efficiency make the piping as short and straight as possible.

* Colour and shape of pumps may vary.

* Fire hose kits are also available for this range of pumps.



Technical Specifications

Engine Honda GX 160, 5.5hp, Recoil Start
Fuel Tank Capacity (L) 3.6

Suction Size

1.5" (40mm)
Discharge Size 1 x 1.5” / 2 x 1”
Max Head (M) 75

Max Flow Rate (L/min)

280
Pump Body Alloy
Fluid Handling Clean Water

Weight (Kg)

26



Twin impeller 5.5 HP Petrol Pump Curve
