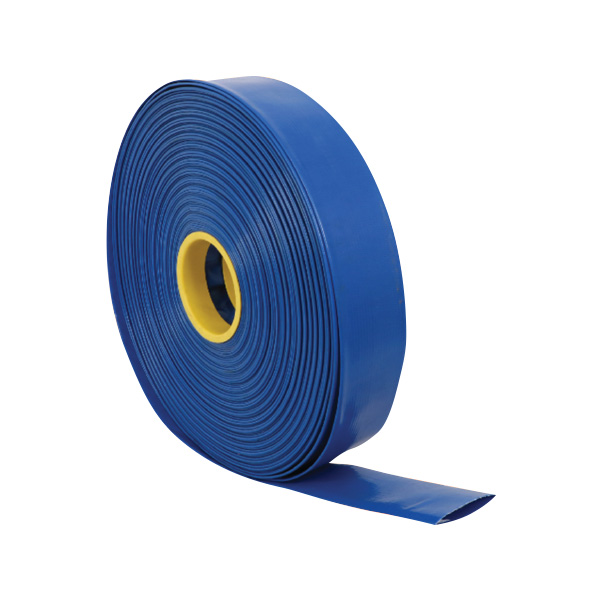

Sunny Blue Layflat Hose

Sunny PVC layflat hose is designed for temporary water supply or drainage, for drip irrigation and sprinkler irrigation at farms..


Inside Diameter Range
:
25 mm - 200 mm

Weight (kg/mtr)
:
0.17 -4.3 kg/mtr

Working Pressure Range
:
30-100 psi
¥20.00
商品库存单位(SKU): Sunny Blue
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

Sunny PVC Layflat Hose Blue

Medium duty PVC layflat hose suitable for water discharge, drip and trickle irrigation.

Primary Uses:

  • Water transfer, dewatering
  • Irrigation sprinklers
  • Sump/trash pumps
  • Medium Duty Irrigation/Agricultural use (not suitable for travelling irrigators)

Features:

  • The hose has an exceptionally high hoop strength, at the same time allowing minimum longitudinal movement.
  • It is a lightweight, water- proof flexible hose.
  • It is resistant to weather, abrasion, process fluids and is rugged enough to take repeated daily rough handling.
  • It does not corrode and is available in long lengths.
  • It assumes a conventional round appearance under pressure and returns to its flat shape after use, for easy handling and storage.
  • It does not need drying and can be rolled immediately after use.

The large diameter Sunnyhose, 250 ~ 400mm, is ideal for use as drainage hose in emergency/flood/disaster situations when large quantities of water must be moved quickly.

Technical Specifications

Inside diameter
mm
Wall Thickness
mm
Working Pressure at 20°C
MPA
Working Pressure (PSI) Weight (kg/m)
25 1.50 0.70 100 0.17
32 1.45 0.70 100 0.20
40 1.25 0.50 73 0.21
50 1.30 0.45 65 0.27
65 1.50 0.40 58 0.38
75 1.70 0.35 58 0.53
100 1.75 0.30 58 0.71
125 1.85 0.30 44 0.94
150 1.95 0.30 44 1.18
200 2.20 0.30 44 1.79
250 2.65 0.25 36 2.65
300 2.55 0.20 30 2.91
350 2.70 0.20 30 3.65
400 2.70 0.20 30 4.29

Sunny PVC Layflat Hose Blue

Medium duty PVC layflat hose suitable for water discharge, drip and trickle irrigation.

Primary Uses:

  • Water transfer, dewatering
  • Irrigation sprinklers
  • Sump/trash pumps
  • Medium Duty Irrigation/Agricultural use (not suitable for travelling irrigators)

Features:

  • The hose has an exceptionally high hoop strength, at the same time allowing minimum longitudinal movement.
  • It is a lightweight, water- proof flexible hose.
  • It is resistant to weather, abrasion, process fluids and is rugged enough to take repeated daily rough handling.
  • It does not corrode and is available in long lengths.
  • It assumes a conventional round appearance under pressure and returns to its flat shape after use, for easy handling and storage.
  • It does not need drying and can be rolled immediately after use.

The large diameter Sunnyhose, 250 ~ 400mm, is ideal for use as drainage hose in emergency/flood/disaster situations when large quantities of water must be moved quickly.

Technical Specifications

Inside diameter
mm
Wall Thickness
mm
Working Pressure at 20°C
MPA
Working Pressure (PSI) Weight (kg/m)
25 1.50 0.70 100 0.17
32 1.45 0.70 100 0.20
40 1.25 0.50 73 0.21
50 1.30 0.45 65 0.27
65 1.50 0.40 58 0.38
75 1.70 0.35 58 0.53
100 1.75 0.30 58 0.71
125 1.85 0.30 44 0.94
150 1.95 0.30 44 1.18
200 2.20 0.30 44 1.79
250 2.65 0.25 36 2.65
300 2.55 0.20 30 2.91
350 2.70 0.20 30 3.65
400 2.70 0.20 30 4.29
