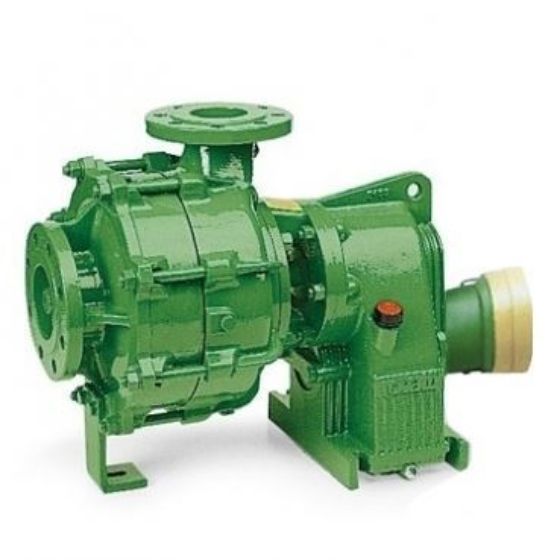

Rovatti Multi Stage TK Series PTO Pumps

争取评论头条

Best price gurantee on wide range of world's leading pump brand Rovatti

Capacity

12-30 m³/h

Head

101-138.5 m

Working Temperature

-10 º C - + 140 º C

Minimum Tractor Power

30 HP

PTO RPM X Gear Ratio

500x6.43

Inlet Range

50 mm

Outlet Range

40 mm

¥19,025.00

制造商: Rovatti Pompe

商品库存单位（SKU）: Rovatti-TK-PTO

Shipping

交货日期 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

下载样本

数量:

+ -

Rovatti multi-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti TK series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 30 m³/h and heads up to 101 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Packed gland version with Twinner System® (TK Europa)
■ Available with trolleys and threepoint linkage

Download Rovatti TK Series PTO Pump Technical Spacifications

Rovatti TK Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	12	15	18	21	24	27	30	36	42	48	54	60	75
					l/min	200	250	300	350	400	450	500	600	700	800	900	1000	1250
					l/s	3.3	4.1	5	5.8	6.6	7.5	8.3	10	11.6	13.3	15	16.6	20.8
T2K-50/3E	30	500 x 6.43	50 X 40	2	Head (m)	138.5	136	131	125	118	110	101

Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys

Rovatti multi-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Download Rovatti TK Series PTO Pump Technical Spacifications

Rovatti TK Series Technical Specifications

Pump Model	Min. Tractor Power (HP)	PTO min^-1 X Gear ratio	Inlet X Outlet (mm)	Gear Box Size	m³/h	12	15	18	21	24	27	30	36	42	48	54	60	75
					l/min	200	250	300	350	400	450	500	600	700	800	900	1000	1250
					l/s	3.3	4.1	5	5.8	6.6	7.5	8.3	10	11.6	13.3	15	16.6	20.8
T2K-50/3E	30	500 x 6.43	50 X 40	2	Head (m)	138.5	136	131	125	118	110	101

Rovatti T-TK Series PTO performance table

Rovatti-pto-pump-trolleys
