Honda Engine Powered Transfer Pumps

Reliable range of pumps allow maximum water transfer for dewatering or tank filling purposes.

Max Capacity
:
130 - 2400 l/min
Max Head
:
31 - 36 m at 3600 RPM
Engine Power
:
Honda 1.1 - 5.5 - 8 HP Petrol
Suction/Discharge
:
1" - 2" - 3" - 4"
¥3,735.00
商品库存单位(SKU): TransferPumps
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Honda PETROL Engine Driven Clean Water Transfer Pumps for High Volume Dewatering and Transfer Applications

High performance transfer pumps ranging from 1" to 6" suction and discharge sizes with Honda 1.1, 5.5, 8, 9, 13 HP Petrol Engine!

These transfer pumps are designed for heavy duty and are suitable for water transfer applications from 130 to 2400 l/min.

This series has a quality wet end that is capable of larger flows than normal by using an open style
impellor. Cast iron internals make this hard to beat. Roll frames, couplings and fully repairable pump ends make this an excellent unit for farm work or other commercial applications.

Features:

  • Flow rates up to 2400 l/min.
  • Heads up to 20 - 36m.
  • Fluids must be clean and free from suspended abrasive particles.
  • Maximum fluid temperature: +35ºC
  • Maximum ambient temperature: +40ºC.
  • Rotational speed: Nominal speed 3000rpm, maximum speed 3600rpm.

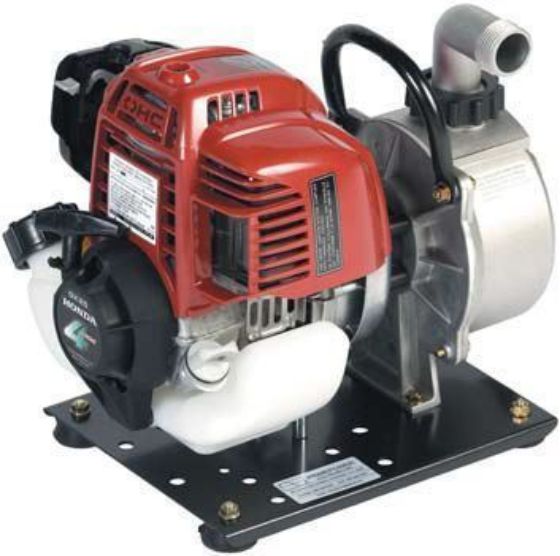

The 1” transfer pump has a carry handle and is supplied with viton seals as standard, making it suitable for diesel fuel transfer.

  • Self-priming
  • Lightweight at 5.5kg
  • Includes sturdy rubber mounted base and carry handle

* Colour and shape of pumps may vary.



Technical Specifications
Model PP010 PP020 PP030 PP040 PP060
Engine Honda GX25, 1.1hp, Recoil Start, 4 stroke Honda GX160, 5.5hp, Recoil Start, 4 stroke Honda GX160, 5.5hp, Recoil Start, 4 stroke Honda GX240, 8.0hp, Recoil Start, 4 stroke Honda GX390, 13.0hp, Recoil Start, 4 stroke
Fuel Tank Capacity (L) 3.6 3.6 3.6 3.6 3.6

Suction Size

1" (25mm) 2" (50mm) 3" (75mm) 4" (100mm) 6" (150mm)
Discharge Size 1" (25mm) 2" (50mm) 3" (75mm) 4" (100mm) 6" (150mm)
Max Head (M) 36 32 32 31 20

Max Flow Rate (L/min)

130 580 1000 2100 2400
Pump Body Alloy Alloy Alloy Alloy Alloy
Fluid Handling Clean Water Clean Water Clean Water Clean Water Clean Water

Weight (Kg)

5.5 23 27 43 50

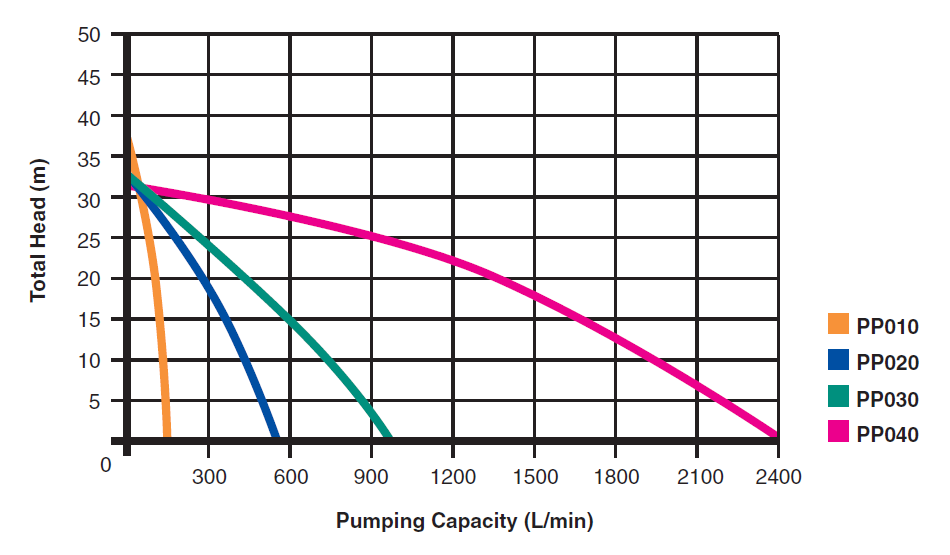

Transfer Pumps Curves

Honda PETROL Engine Driven Clean Water Transfer Pumps for High Volume Dewatering and Transfer Applications

High performance transfer pumps ranging from 1" to 6" suction and discharge sizes with Honda 1.1, 5.5, 8, 9, 13 HP Petrol Engine!

These transfer pumps are designed for heavy duty and are suitable for water transfer applications from 130 to 2400 l/min.

This series has a quality wet end that is capable of larger flows than normal by using an open style
impellor. Cast iron internals make this hard to beat. Roll frames, couplings and fully repairable pump ends make this an excellent unit for farm work or other commercial applications.

Features:

  • Flow rates up to 2400 l/min.
  • Heads up to 20 - 36m.
  • Fluids must be clean and free from suspended abrasive particles.
  • Maximum fluid temperature: +35ºC
  • Maximum ambient temperature: +40ºC.
  • Rotational speed: Nominal speed 3000rpm, maximum speed 3600rpm.

The 1” transfer pump has a carry handle and is supplied with viton seals as standard, making it suitable for diesel fuel transfer.

  • Self-priming
  • Lightweight at 5.5kg
  • Includes sturdy rubber mounted base and carry handle

* Colour and shape of pumps may vary.



Technical Specifications
Model PP010 PP020 PP030 PP040 PP060
Engine Honda GX25, 1.1hp, Recoil Start, 4 stroke Honda GX160, 5.5hp, Recoil Start, 4 stroke Honda GX160, 5.5hp, Recoil Start, 4 stroke Honda GX240, 8.0hp, Recoil Start, 4 stroke Honda GX390, 13.0hp, Recoil Start, 4 stroke
Fuel Tank Capacity (L) 3.6 3.6 3.6 3.6 3.6

Suction Size

1" (25mm) 2" (50mm) 3" (75mm) 4" (100mm) 6" (150mm)
Discharge Size 1" (25mm) 2" (50mm) 3" (75mm) 4" (100mm) 6" (150mm)
Max Head (M) 36 32 32 31 20

Max Flow Rate (L/min)

130 580 1000 2100 2400
Pump Body Alloy Alloy Alloy Alloy Alloy
Fluid Handling Clean Water Clean Water Clean Water Clean Water Clean Water

Weight (Kg)

5.5 23 27 43 50



Transfer Pumps Curves
