DuCaR DKT 65 3-Stage PTO Pump

3-Stage, high pressure, efficient medium size DuCaR PTO driven irrigation pump. 50 m³/h @100 m head. Comes with frame, fittings and drive shaft!

Capacity
:
10-75 m³/h
Head
:
40-130 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
35 HP
PTO RPM X Gear Ratio
:
545 x 6.43
Inlet
:
75 mm (3")
Outlet
:
63 mm (2.5")
FREE PARTS
:
Inlet/Outlet Flange Fittings
3 Point Linkage Carry Frame
PTO Drive Shaft
Made in
:
Turkey
¥18,967.00
¥20,202.00
制造商: DuCaR Sprinklers
商品库存单位(SKU): DKT65-PUMP
缺货
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

DuCaR PTO Pumps are an excellent choice for high performance sprinkler irrigation. These pumps are quick and easy to setup to begin irrigating in minutes! If you have a tractor that you want to utilize as the power source, PTO Pumps are a great choice and are capable of large amount of water flow output with high pressure performance. These pumps are completely cast iron construction, reliable and efficient that you can use long years.

This tractor powered portable type centrifugal pumps are powered by tractors end shaft and tied at three points to tractors. It contains base frame, elbow, hose connector, and shaft. So there is no need to assemble any other parts. Thanks to the low end-shafts speed, the gear box to be used for increasing the speed.

Every farmer should have one of the DuCaR tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation and so much more.

FEATURES

  • 3-Stage Pump
  • Each unit is supplied with the 3-point linkage frame, inlet/outlet flanged fittings and a PTO shaft.
  • The mechanical shaft seal, heavy duty impeller and pump liner ensuring many years of reliable operation.
Technical Specifications



Pump Type m³/h 10 20 30 40 50 60 70   Power
  l/s 2.7 5.5 8.3 11.1 13.8 16.6 19.4 HP

DKT-65-3

Total Height HM (mss) 130 126 120.5 114 104 88 70 35

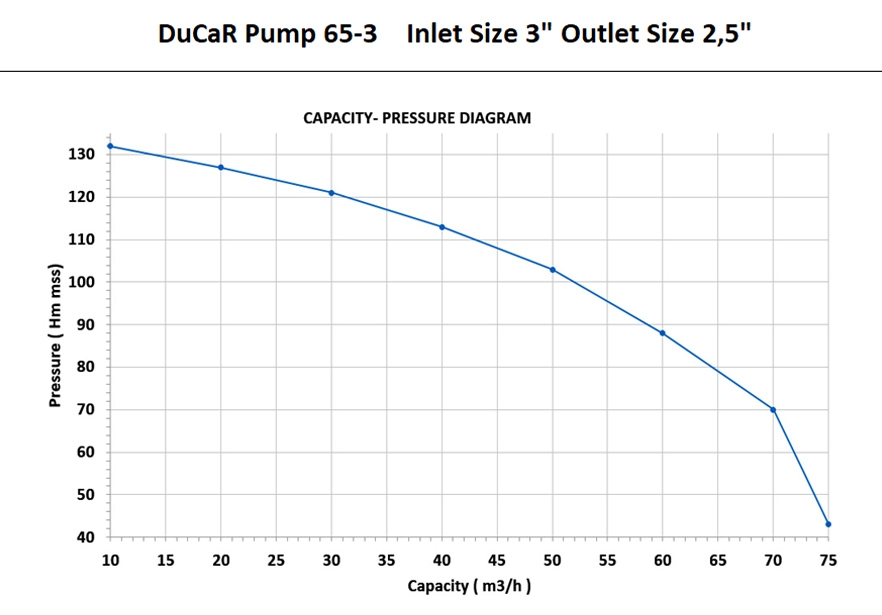

 DuCaR PTO DKT 65 performance table



DuCaR PTO Pumps are an excellent choice for high performance sprinkler irrigation. These pumps are quick and easy to setup to begin irrigating in minutes! If you have a tractor that you want to utilize as the power source, PTO Pumps are a great choice and are capable of large amount of water flow output with high pressure performance. These pumps are completely cast iron construction, reliable and efficient that you can use long years.

This tractor powered portable type centrifugal pumps are powered by tractors end shaft and tied at three points to tractors. It contains base frame, elbow, hose connector, and shaft. So there is no need to assemble any other parts. Thanks to the low end-shafts speed, the gear box to be used for increasing the speed.

Every farmer should have one of the DuCaR tractor PTO pumps. No more messing around with small engines or maintaining a dedicated trailer mounted water pump engine. Vary the PTO speed and engine rpm to change your discharge pressure and flow rate. Ideal for large water transfers, temporary irrigation and so much more.

FEATURES

  • 3-Stage Pump
  • Each unit is supplied with the 3-point linkage frame, inlet/outlet flanged fittings and a PTO shaft.
  • The mechanical shaft seal, heavy duty impeller and pump liner ensuring many years of reliable operation.
Technical Specifications



Pump Type m³/h 10 20 30 40 50 60 70   Power
  l/s 2.7 5.5 8.3 11.1 13.8 16.6 19.4 HP

DKT-65-3

Total Height HM (mss) 130 126 120.5 114 104 88 70 35



 DuCaR PTO DKT 65 performance table
