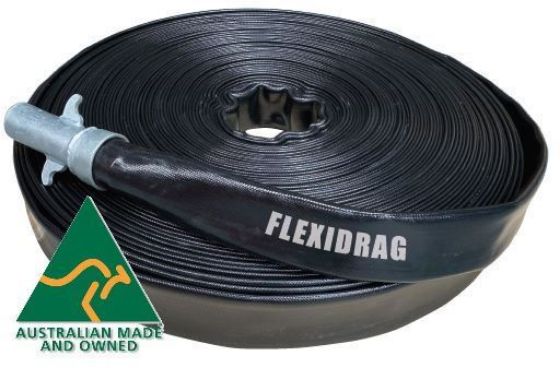

Flexidrag Premium High Pressure Layflat Hoses

HIGH pressure travelling irrigator drag hose with woven reinforcement and highly abrasive TPU cover & inner lining.


Inside Diameter Range
:
1.5" (40 mm) - 8" (203 mm)

Wall Thickness
:
2.6 - 4.1 mm

Weight per Meter
:
0.5 - 3.5 kg

Working Pressure Range
:
300 - 390 psi (20 - 27 Bar)


Australian Made
¥103.00
¥140.00
制造商: Crusader Hose
商品库存单位(SKU): Flexidrag
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

该产品具有最小数量 30

Premium Travelling Irrigator Lay Flat Hose

Flexidrag® irrigation hose is Australia’s leading drag hose for travelling irrigators. It’s a smooth, flexible layflat hose that can be easily stored when not in use – either on an irrigator or in a shed. It comes in a large range of sizes and lengths. The Flexidrag® travelling irrigator drag hose is a perfect blend of superior materials with high-quality construction techniques.

The hose is manufactures by weaving a textile reinforcement of high-tensile polyesterand encasing it with abrasion-resistant polyurethane. The use of high-quality thermoplastic polyurethane (TPU) ensures maximum abrasion and UV resistance, while the warp and weft of high-tenacity filament yarns give maximum strength. This strong internal fabric can withstand the high tensile load applied to the hose when it is dragged behind an irrigator. It also has a high UV resistance and is not prone to cracking like rubber hose. Our technically-advanced annealing process gives the finishing treatment to this layflat hose, making it world's best standard. The Flexidrag® is also able to withstand high pressures on the sprinklers as well as remain flexible at low pressure on linear irrigators. This makes it an ideal travelling irrigator hose solution.

When you need irrigation hose solutions that is tough, robust, cost-effective and efficient, choose Flexidrag®.

Flexidrag® is made in a large range of diameters from 40mm to 152mm and is available in a continuous length of up to 350m. Each roll is fully tested at the factory prior to despatch to your farm. To protect your investment, Flexidrag® is covered with a 10 year pro-rata warranty

Mine Dewatering Applications

The Flexidrag® is an ultra tough lay-flat hose for use on mine sites and rugged terrain environments. It is constructed by weaving a tight polyester fabric and covering this material with polyurethane. The polyurethane cover and liner ensures maximum abrasion, corrosion and chemical resistance. The cover is also UV treated so that the hose can be left outdoors without concern for cracking.

Flexidrag world's best quality features:

  • Suitable for laterals or winch irrigation
  • Ultra flexible
  • UV stabilised
  • Quality tested and fully backed up by warranty
  • Highly abrasion resistant
  • Resistant to oils and chemicals
  • Easily repairable
  • Flexible from -40° to +70°C
  • Low coil volume for easy handling
  • Standard lengths up to 200 m
  • Longer lengths available on request (up to 350m)
  • HD stands for “Heavy Duty”, which is available in certain sizes

It is mainly used for:

  • Travelling irrigators and boom type irrigation equipment
  • Winch irrigation
  • Feed hose to pivot
  • Drag hose for farm use
  • Dewatering in mines
  • High pressure wash–down hose
  • Effluent pumping
  • Industrial hose for use with certain oils & chemicals
  • Heavy duty farm hose
  • Temporary bypass hose
  • Air hose
crusader-flexidrag-layflat-hose-technical

Technical Specifications

Inside diameter
mm
Inside diameter
inches
Working Pressure
Bar
Burst Pressure
Bar
Burst PressurePSI Bend Radius
@ 30 psi (m)
Tensile Load Tonnes Avg. Single Wall Thickness(mm) Weight per Metre(kg)
40 1½” 20 40 580 0.6 4.0 2.2 0.50
51 2″ 20 40 580 0.6 4.5 2.4 0.60
64 2½” 20 40 580 0.7 4.0 2.6 0.65
76 3″ 20 40 580 0.8 4.5 2.7 0.80
90 3½” 20 40 580 0.9 6.0 2.8 0.95
102 4″ 20 40 580 1.1 7.0 3.2 1.00
114 4½” 17 35 507 1.3 9.00 3.4 1.30
126 5″ 17 35 507 1.5 12.0 3.6 1.50
152 6″ 17 35 507 1.7 14.0 4.0 1.80

Premium Travelling Irrigator Lay Flat Hose

Flexidrag® irrigation hose is Australia’s leading drag hose for travelling irrigators. It’s a smooth, flexible layflat hose that can be easily stored when not in use – either on an irrigator or in a shed. It comes in a large range of sizes and lengths. The Flexidrag® travelling irrigator drag hose is a perfect blend of superior materials with high-quality construction techniques.

The hose is manufactures by weaving a textile reinforcement of high-tensile polyesterand encasing it with abrasion-resistant polyurethane. The use of high-quality thermoplastic polyurethane (TPU) ensures maximum abrasion and UV resistance, while the warp and weft of high-tenacity filament yarns give maximum strength. This strong internal fabric can withstand the high tensile load applied to the hose when it is dragged behind an irrigator. It also has a high UV resistance and is not prone to cracking like rubber hose. Our technically-advanced annealing process gives the finishing treatment to this layflat hose, making it world's best standard. The Flexidrag® is also able to withstand high pressures on the sprinklers as well as remain flexible at low pressure on linear irrigators. This makes it an ideal travelling irrigator hose solution.

When you need irrigation hose solutions that is tough, robust, cost-effective and efficient, choose Flexidrag®.

Flexidrag® is made in a large range of diameters from 40mm to 152mm and is available in a continuous length of up to 350m. Each roll is fully tested at the factory prior to despatch to your farm. To protect your investment, Flexidrag® is covered with a 10 year pro-rata warranty

Mine Dewatering Applications

The Flexidrag® is an ultra tough lay-flat hose for use on mine sites and rugged terrain environments. It is constructed by weaving a tight polyester fabric and covering this material with polyurethane. The polyurethane cover and liner ensures maximum abrasion, corrosion and chemical resistance. The cover is also UV treated so that the hose can be left outdoors without concern for cracking.

Flexidrag world's best quality features:

  • Suitable for laterals or winch irrigation
  • Ultra flexible
  • UV stabilised
  • Quality tested and fully backed up by warranty
  • Highly abrasion resistant
  • Resistant to oils and chemicals
  • Easily repairable
  • Flexible from -40° to +70°C
  • Low coil volume for easy handling
  • Standard lengths up to 200 m
  • Longer lengths available on request (up to 350m)
  • HD stands for “Heavy Duty”, which is available in certain sizes

It is mainly used for:

  • Travelling irrigators and boom type irrigation equipment
  • Winch irrigation
  • Feed hose to pivot
  • Drag hose for farm use
  • Dewatering in mines
  • High pressure wash–down hose
  • Effluent pumping
  • Industrial hose for use with certain oils & chemicals
  • Heavy duty farm hose
  • Temporary bypass hose
  • Air hose
crusader-flexidrag-layflat-hose-technical

Technical Specifications

Inside diameter
mm
Inside diameter
inches
Working Pressure
Bar
Burst Pressure
Bar
Burst PressurePSI Bend Radius
@ 30 psi (m)
Tensile Load Tonnes Avg. Single Wall Thickness(mm) Weight per Metre(kg)
40 1½” 20 40 580 0.6 4.0 2.2 0.50
51 2″ 20 40 580 0.6 4.5 2.4 0.60
64 2½” 20 40 580 0.7 4.0 2.6 0.65
76 3″ 20 40 580 0.8 4.5 2.7 0.80
90 3½” 20 40 580 0.9 6.0 2.8 0.95
102 4″ 20 40 580 1.1 7.0 3.2 1.00
114 4½” 17 35 507 1.3 9.00 3.4 1.30
126 5″ 17 35 507 1.5 12.0 3.6 1.50
152 6″ 17 35 507 1.7 14.0 4.0 1.80
