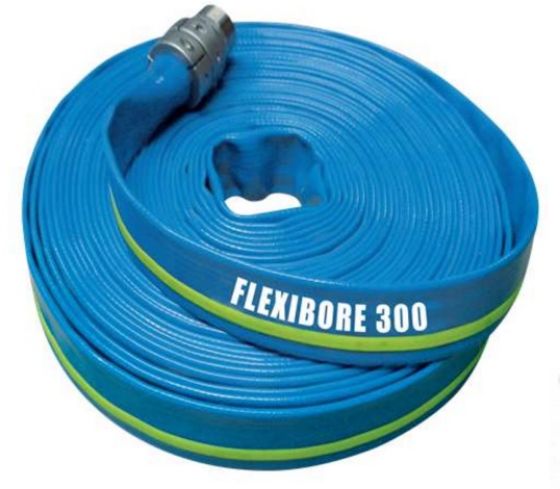

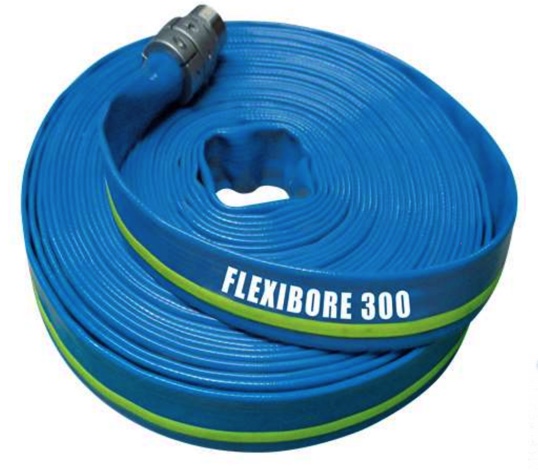

Flexibore 300 Layflat Bore Hose

A high quality layflat bore hose that can be used for deep ground water pumping up to 300m and can swell up to 10%, making it extremely efficient in reducing pumping costs and friction loss.


Inside Diameter Range
:
3" (76 mm) - 8" (203 mm)

Max. flow rate
:
18 - 148 litre/sec

Weight per Meter
:
1.5 - 4.4 kg

Burst Pressure Range
:
1050 - 1200 psi (70 - 80 Bar)


Australian Made
¥421.00
¥538.00
制造商: Crusader Hose
商品库存单位(SKU): Flexibore 300
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

该产品具有最小数量 20

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

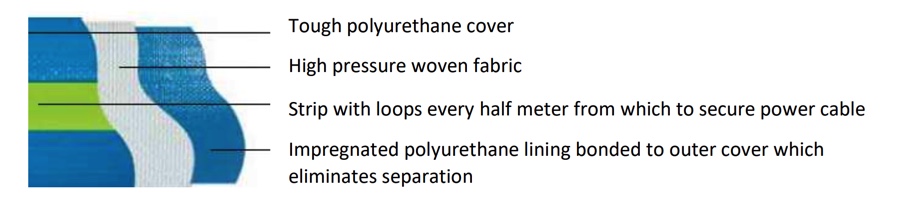

Flexibore® 300 is a high quality layflat hose for use inside boreholes and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 300m inside the bore.

Flexibore® 300 can swell up to 10% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit most bore water pumping applications and is manufactured in a large range of diameters, ranging from 76mm to 203mm. The hose can be available in a continuous length of up to 300m and each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® 300 world's best quality features including:

  • Large-diameter deep ground water pumping up to 300m
  • Ultra-high pressure
  • High tensile for very large submersible pumps
  • Flexible so can be rolled up
  • Swells so no internal build-up
  • Rogorously tested
  • Secure coupling

It is ideal for:

  • Deep water bore pumping
  • Low cost pumping
  • Ease of installation and rapid retrieval
  • Continuous length

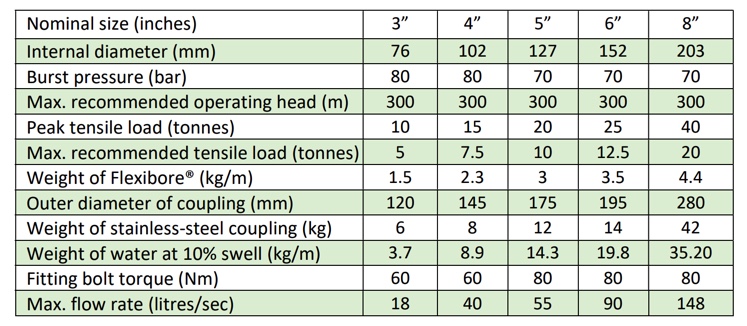

Crusader Flexibore 300 Technical Specifications
Technical Specifications

Other specifications:
  • Water pH range: 3 to 9
  • Maximum operating temperature: 60° C
  • Maximum diametric swell: 10%
  • Maximum extension: 0.5%
  • Safety factor: 2:1
