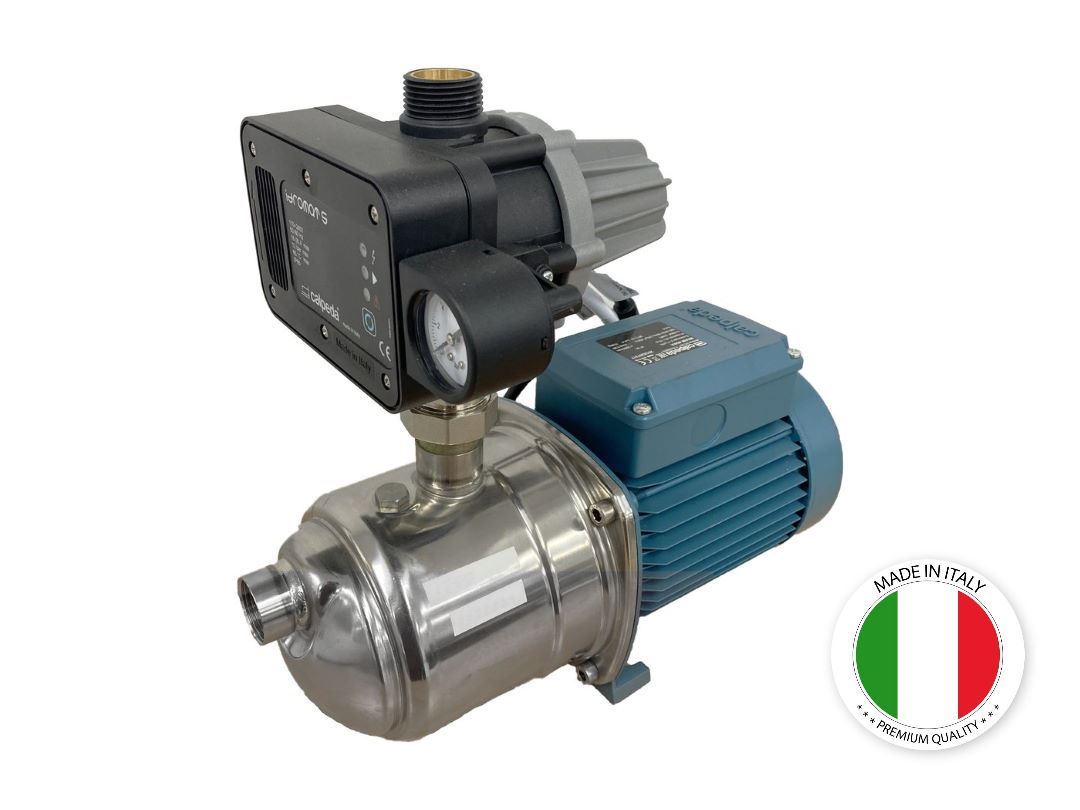

Calpeda MXAM Self Priming Multistage Pump with Electronic Pressure Control

Residential MULTISTAGE pump for drinking water! Premium quality, reliable, self-priming, close coupled domestic pump.

Motor Range
:
0.45 KW (0.6 HP) - 1.1 KW (1.5 HP)
Impeller
:
Noryl
Body
:
Stainless steel
Suction lift
:
Up to 8 m
Controller
:
Electronic Idromat 5 Controller
¥4,965.00
¥5,847.00
制造商: Calpeda Pumps
交货日期 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Features

  • Self-Priming Multistage Pump
  • AISI 304 Stainless Steel Body
  • Composite Impellers & Diffusers
  • Loss of Prime Protection
  • Liquid temperature up to 35 oC
  • Suction lift up to 8m
  • Idromat 5 Controller (Restart pressure 1.5 bar for PI15 models, 2.2 bar for PI22 models)
  • Drinking water AS4020 certification
  • Made in Italy

Applications:

  • For drawing water out of a well.
  • For lifting water containing air or other gases.
  • For increasing water pressure from flooded suction applications.
  • As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
  • For garden use and irrigation.
  • For washing with a jet of water.

Extra safety

against running dry, with the suction port above pump axis and with the self-priming construction.

Robust

Single-piece barrel casing.

Compact

Single-piece lantern bracket and base.

Low noise

with the water-filled shroud around the stages.

Better self-priming

The MXA are capable of lifting water from depths of 8 m in less than 4 minutes, offers new possibilities on suction lift applications and provides better trouble free service on normal shallow-well suction lift duties, also with a long suction pipe above the water level.

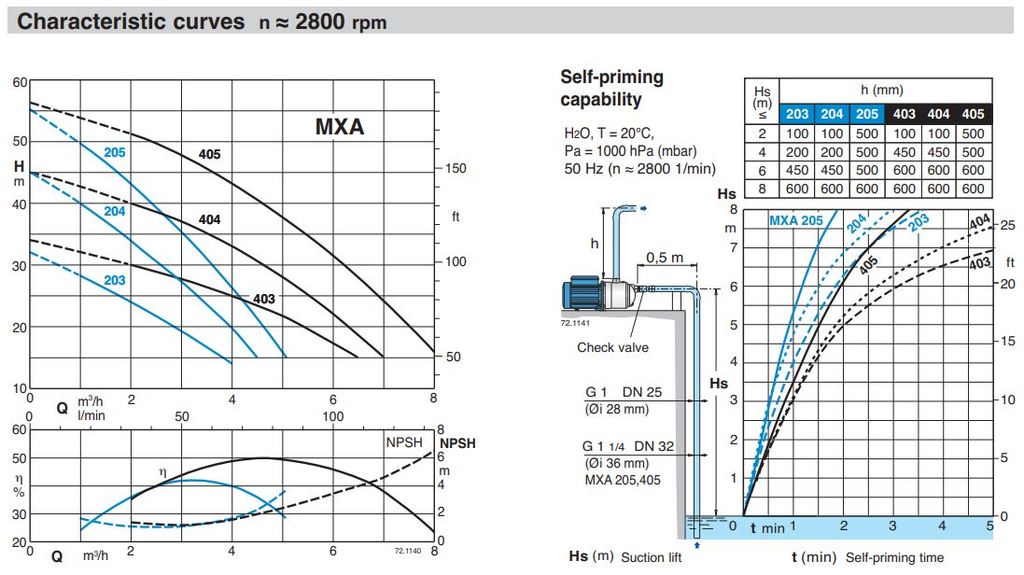

Calpeda-MXAM-curves
Calpeda-MXA-Features
Calpeda-NGXM-Dimensions-Weights

Features

  • Self-Priming Multistage Pump
  • AISI 304 Stainless Steel Body
  • Composite Impellers & Diffusers
  • Loss of Prime Protection
  • Liquid temperature up to 35 oC
  • Suction lift up to 8m
  • Idromat 5 Controller (Restart pressure 1.5 bar for PI15 models, 2.2 bar for PI22 models)
  • Drinking water AS4020 certification
  • Made in Italy

Applications:

  • For drawing water out of a well.
  • For lifting water containing air or other gases.
  • For increasing water pressure from flooded suction applications.
  • As pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure).
  • For garden use and irrigation.
  • For washing with a jet of water.

Extra safety

against running dry, with the suction port above pump axis and with the self-priming construction.

Robust

Single-piece barrel casing.

Compact

Single-piece lantern bracket and base.

Low noise

with the water-filled shroud around the stages.

Better self-priming

The MXA are capable of lifting water from depths of 8 m in less than 4 minutes, offers new possibilities on suction lift applications and provides better trouble free service on normal shallow-well suction lift duties, also with a long suction pipe above the water level.





Calpeda-MXAM-curves
Calpeda-MXA-Features
Calpeda-NGXM-Dimensions-Weights
