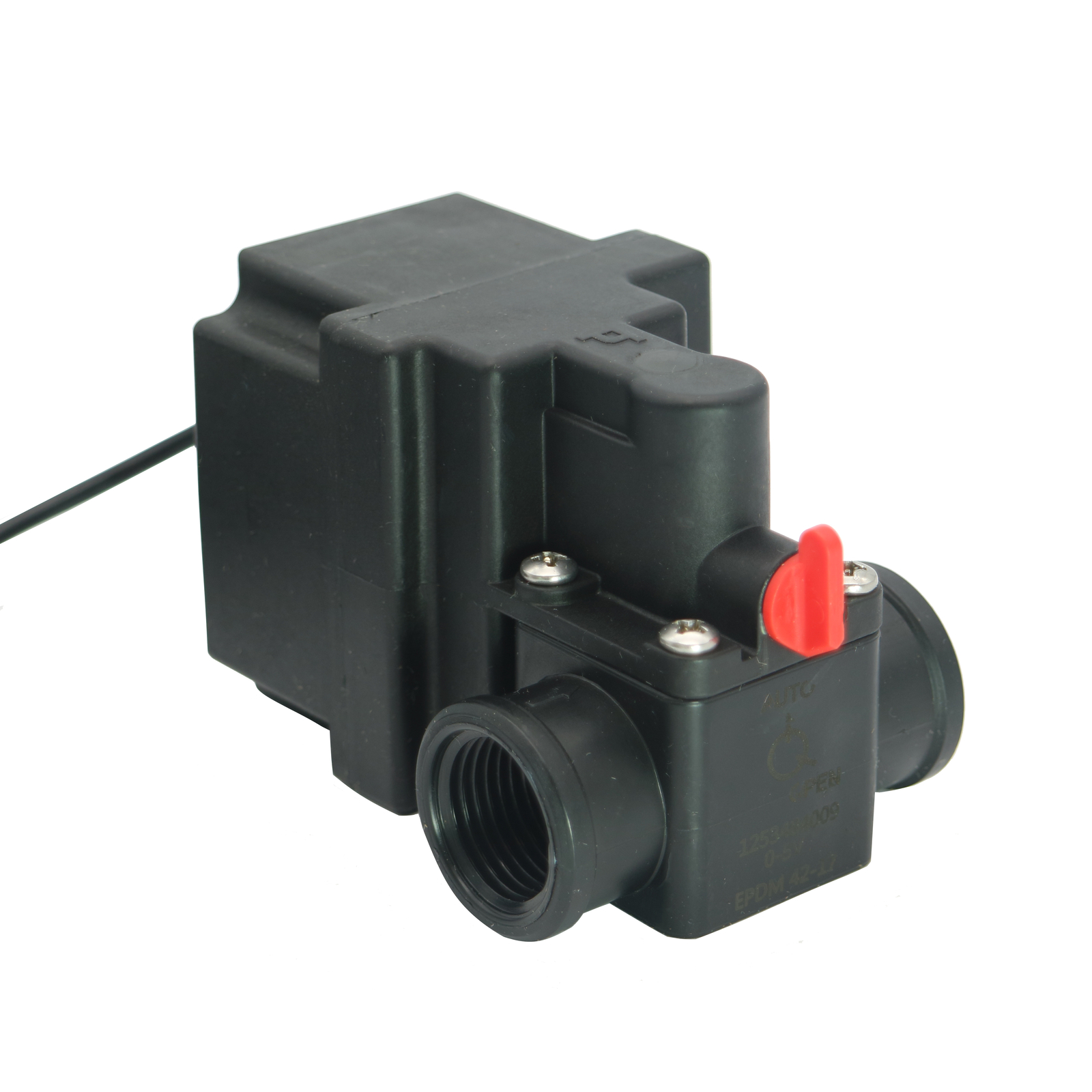

1/2" BSP 2W NC 12-24 V AC Orifice 8.0mm Pressure Control Signal: 0-5 V EPDM with MO

Size
:
1/2" BSP
Function
:
2 Way Normally Closed (with back-up battery*)
Valve Operation
:
Proportional
Body Material
:
Plastic
Seal
:
FPM (Viton®)
Pressure Range
:
Vacuum applications : (-1) - 0 Bar
Media
:
Liquids & Gases*
¥1,882.00
制造商: Baccara
商品库存单位(SKU): 1253484009
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Technical Data

Function 2 Way NC (with back-up battery)
Back battery is to close the valve when there is a sudden power shutdown, which means the valve is normally close when not energized
Ports size 1/2" BSP & NPT
Orifice size 8mm (Up to 600 l/hour)
Pressure range Vacuum applications : (-1) - 0 Bar
Pressure applications : 0 - (+1) Bar
*For other pressures, please consult our technical
sales department
Temperature range Fluid : -10º to 45ºC (no freezing)
Ambient : -10ºC to 45ºC
Materials In contact with media :
Valve body :
Standard : PVC (UV Protection)
Optional : According to customer demand or
application (e.g Stainless steel)

Diaphragm & seals : FPM (Viton®), EPDM
Not in contact with media :
Operator housing : PP (UV protection)
Manual override : Acetal (Manual override is standard)
Media Liquids & Gases
*Please consult our technical sales department for a
specific media
Application examples :
Irrigation fertilizing systems
Medical devices
Control signal 0-5V or 4-20mA
Valve stroke resolution < 0.01mm
Valve stroke accuracy < ± 0.01 mm
Full stroke duration 0.6 sec, each direction
Current consumption • Standby Mode (Holding position): 25 [mA]
• Active Control Mode: Up to 120 [mA]
• Full Open/Close Mode (starting current): Up to 600 [mA]
Supply voltage 12-24 [V] ±5% AC (50 or 60Hz) Or 12-24[V] ±10% DC
*For other supply voltages, please consult our
technical sales department
*Current and voltage spikes protections might be
required. Please consult our technical sales
department
Connection 5 wires cable (3m length) :
• Black & red : Supply voltage (polarity is not restricted)
• Green : 0-5 V analog control signal
• Blue : 4-20 mA analog control signal
• Yellow : Analog control signal common
Recommended control
signal resolution
Voltage : 20 mV | Current : 0.064 mA
Standard / Certification CE
EMC : EN55011 Group 1 - Class A | EN61000-6-1
CFR 47 FCC Class A

SAFETY : IEC/EN61010-1
Standard protection class IP67

GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve

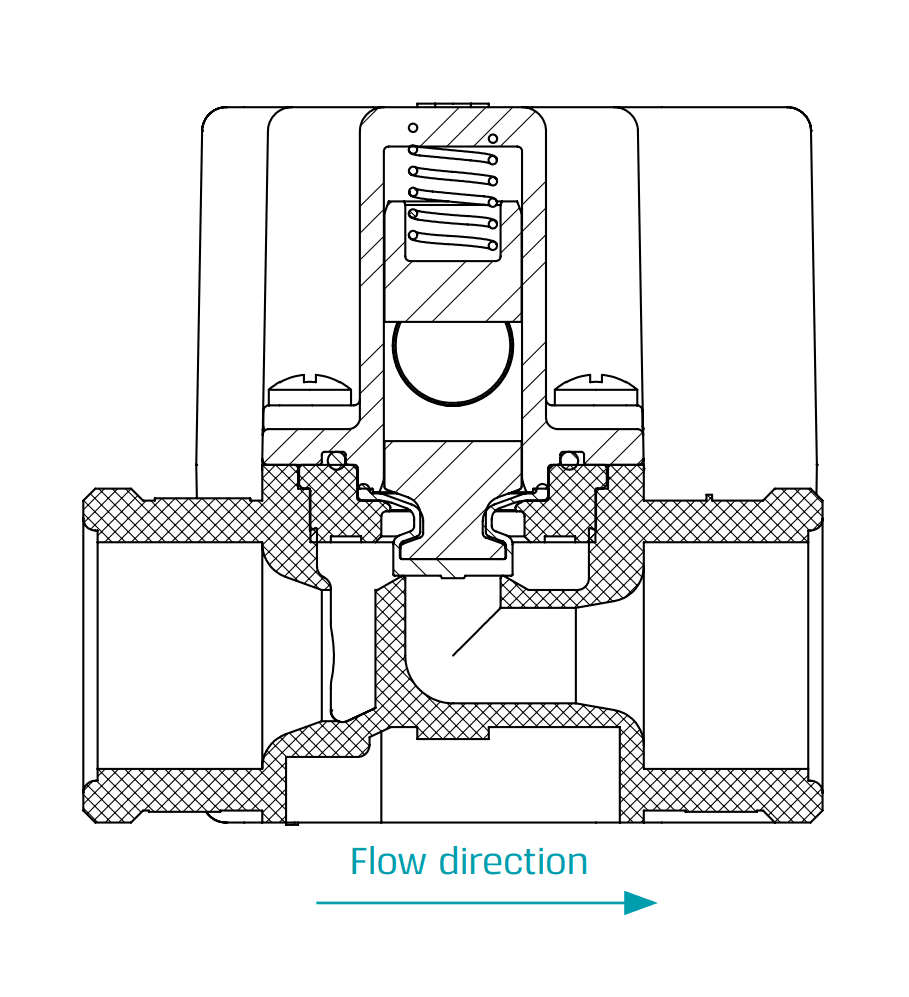

GEM-CPR | Isolated Proportional Fertigation & Chemical Dosing Valve Plumbing Diagram

GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve

Technical Data

Function 2 Way NC (with back-up battery)
Back battery is to close the valve when there is a sudden power shutdown, which means the valve is normally close when not energized
Ports size 1/2" BSP & NPT
Orifice size 8mm (Up to 600 l/hour)
Pressure range Vacuum applications : (-1) - 0 Bar
Pressure applications : 0 - (+1) Bar
*For other pressures, please consult our technical
sales department
Temperature range Fluid : -10º to 45ºC (no freezing)
Ambient : -10ºC to 45ºC
Materials In contact with media :
Valve body :
Standard : PVC (UV Protection)
Optional : According to customer demand or
application (e.g Stainless steel)

Diaphragm & seals : FPM (Viton®), EPDM
Not in contact with media :
Operator housing : PP (UV protection)
Manual override : Acetal (Manual override is standard)
Media Liquids & Gases
*Please consult our technical sales department for a
specific media
Application examples :
Irrigation fertilizing systems
Medical devices
Control signal 0-5V or 4-20mA
Valve stroke resolution < 0.01mm
Valve stroke accuracy < ± 0.01 mm
Full stroke duration 0.6 sec, each direction
Current consumption • Standby Mode (Holding position): 25 [mA]
• Active Control Mode: Up to 120 [mA]
• Full Open/Close Mode (starting current): Up to 600 [mA]
Supply voltage 12-24 [V] ±5% AC (50 or 60Hz) Or 12-24[V] ±10% DC
*For other supply voltages, please consult our
technical sales department
*Current and voltage spikes protections might be
required. Please consult our technical sales
department
Connection 5 wires cable (3m length) :
• Black & red : Supply voltage (polarity is not restricted)
• Green : 0-5 V analog control signal
• Blue : 4-20 mA analog control signal
• Yellow : Analog control signal common
Recommended control
signal resolution
Voltage : 20 mV | Current : 0.064 mA
Standard / Certification CE
EMC : EN55011 Group 1 - Class A | EN61000-6-1
CFR 47 FCC Class A

SAFETY : IEC/EN61010-1
Standard protection class IP67

GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve



GEM-CPR | Isolated Proportional Fertigation & Chemical Dosing Valve Plumbing Diagram

GEM-CPR-Isolated-Proportional-Fertigation-Chemical-Dosing-Valve
