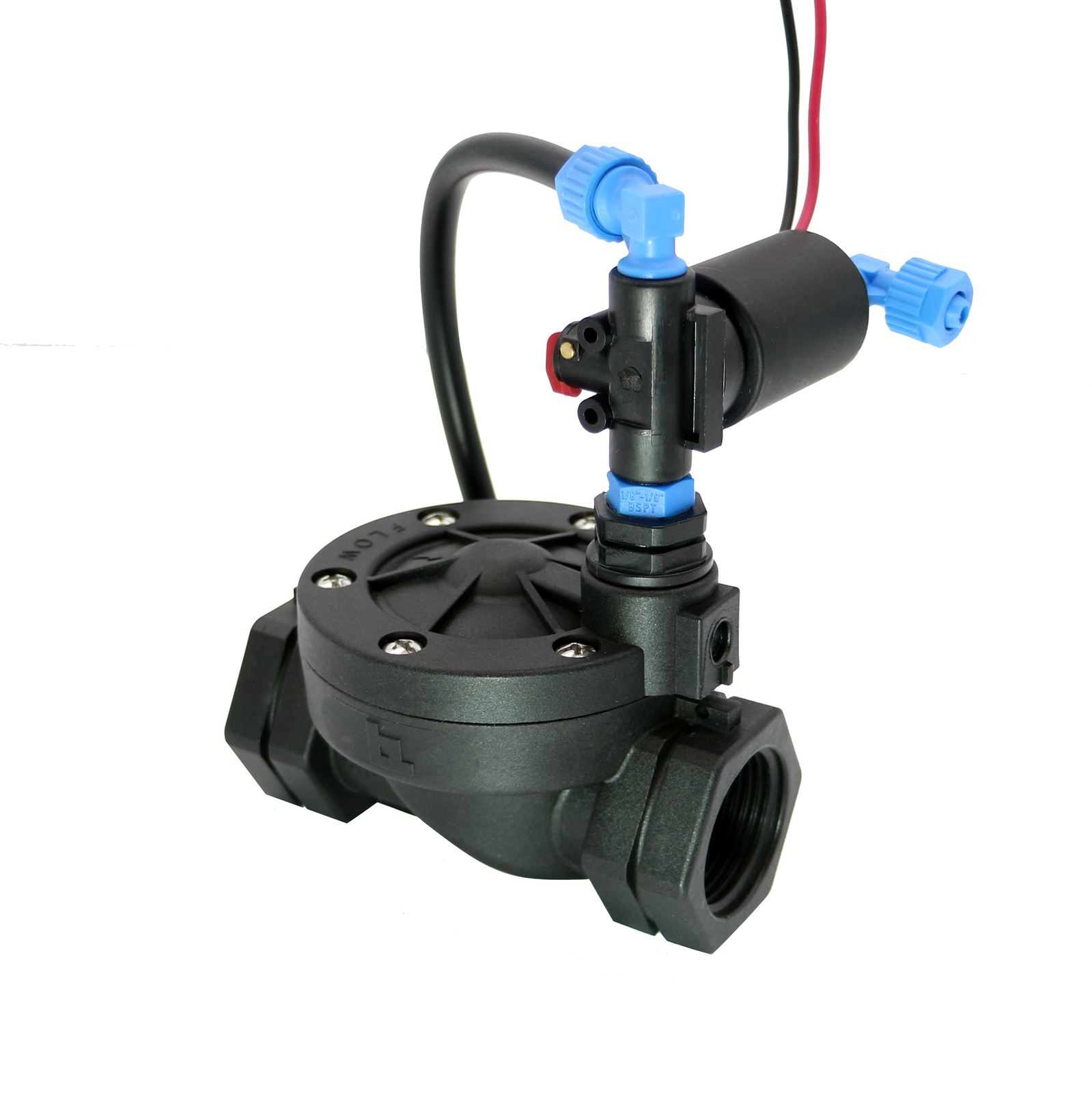

3 Way External Solenoid Pilot Control Irrigation Valve NC | G75-SE

Size
:
3/4", 1", 1 1/2", 2" BSP
Function
:
2 Way Normally Closed
Valve Operation
:
Body Material
:
Plastic
Seal
:
NBR
Pressure Range
:
0.3 - 10 bar
Media
:
¥766.00
制造商: Baccara
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
+ -
Solenoid Supplied with 3W 1.2mm G75 solenoid
Assembly Supplied with finger filter and accessories

Technical Data

Function 2 Way NC
Ports size 3/4", 1", 1-1/2", 2" BSPT
Pressure range 0.3 to 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Diaphragm:
NR
Seals:
NBR
Spring:
Stainless Steel AISI 300 series
Solenoid • G75, 2W NC solenoids, all voltages.
• AC, DC and Latch
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal

Voltage & Power Consumption

  AC (W)
50 Hz
DC (W)
V 2 4.5
12
24
110

* Available Options

Voltage & Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%

V
0.3 0.19
2W 60 Hz 0.2 0.14
3W 50/60 Hz 0.125 0.125
DC 4.5W

Coil Resistance vs Input Voltage Range

Resistance [ Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

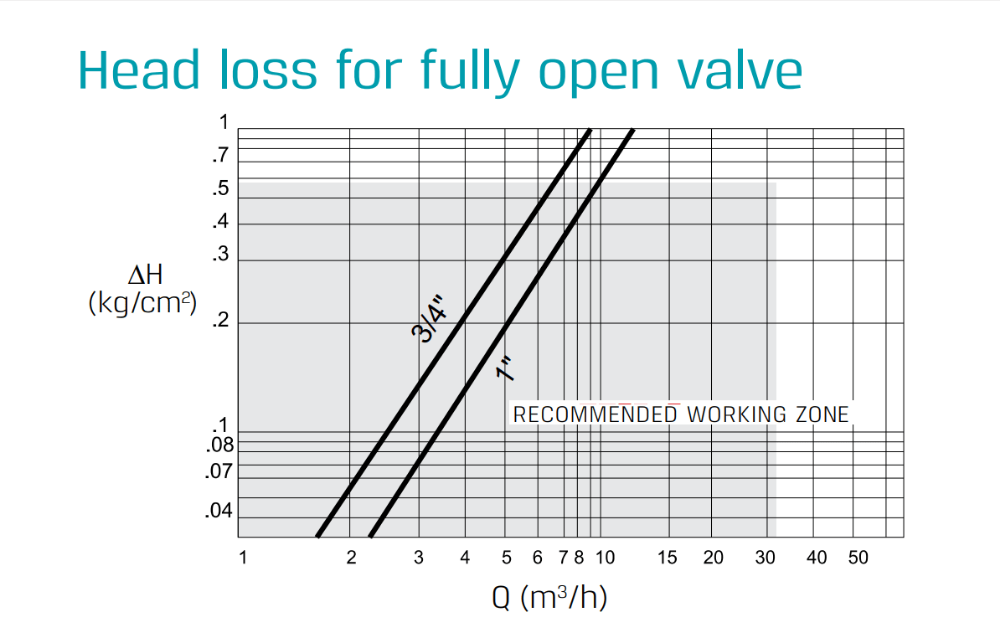

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss

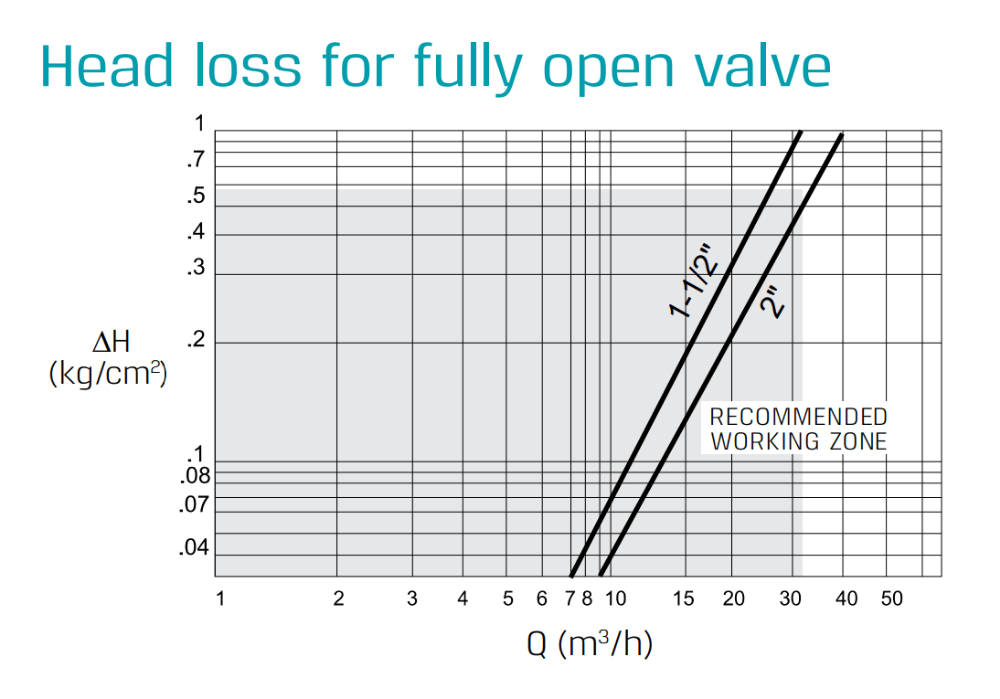

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss-for-fully-open-valve

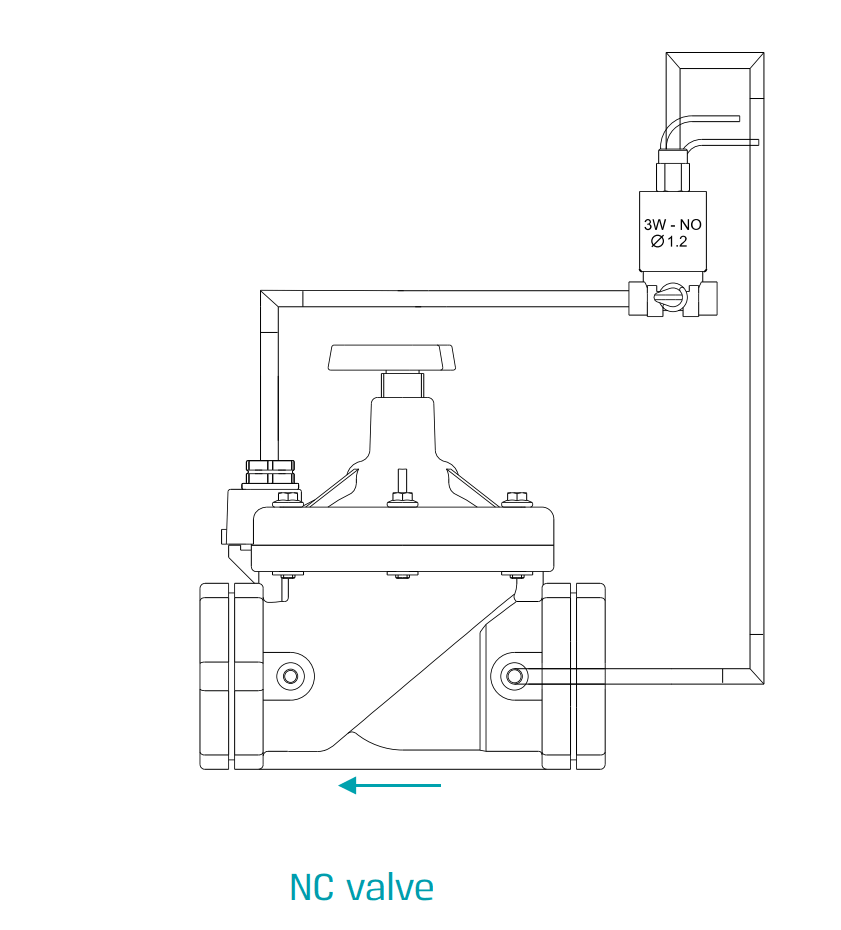

 3 Way External Solenoid Pilot Control Irrigation Valve NC | G75-SE Plumbing Diagram

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-plumbing-diagram

Solenoid Supplied with 3W 1.2mm G75 solenoid
Assembly Supplied with finger filter and accessories

Technical Data

Function 2 Way NC
Ports size 3/4", 1", 1-1/2", 2" BSPT
Pressure range 0.3 to 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Diaphragm:
NR
Seals:
NBR
Spring:
Stainless Steel AISI 300 series
Solenoid • G75, 2W NC solenoids, all voltages.
• AC, DC and Latch
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal

Voltage & Power Consumption

  AC (W)
50 Hz
DC (W)
V 2 4.5
12
24
110

* Available Options

Voltage & Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%

V
0.3 0.19
2W 60 Hz 0.2 0.14
3W 50/60 Hz 0.125 0.125
DC 4.5W

Coil Resistance vs Input Voltage Range

Resistance [ Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-head-loss-for-fully-open-valve

 3 Way External Solenoid Pilot Control Irrigation Valve NC | G75-SE Plumbing Diagram

3-Way-Externa- Solenoid-Pilot-Control-Irrigation-Valve-NC-G75-SE-plumbing-diagram
