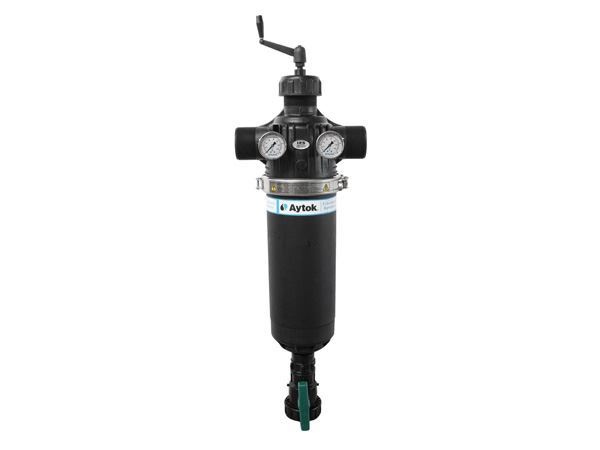

Plastic Vacuum Screen Filters

SKU: PVS
Delivery date: 2 to 3 weeks
Manufacturer: Aytok Filters
Body Material : Super Plastic
Cartridge Material : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°
The Filtration Sensitivity : Optional 20-50-100-125 micron
Cartridge : Screen
US $290.00
*

PLEASE SELECT A SIZE

Technical Specifications

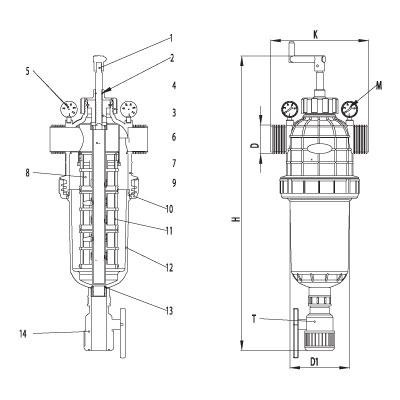

PV Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
PV 20 50 2" 190 600 340 1/4” 1 1/2” 30 726 8
PVS 20 50 2" 190 750 340 1/4” 1 1/2” 35 968 9
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9
PV 30 76 3" 190 600 340 1/4” 1 1/2” 50 726 8
PVS 30 76 3" 190 750 340 1/4” 1 1/2” 55 968 9



Working Principle

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.

Technical Specifications

PV Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
PV 20 50 2" 190 600 340 1/4” 1 1/2” 30 726 8
PVS 20 50 2" 190 750 340 1/4” 1 1/2” 35 968 9
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9
PV 30 76 3" 190 600 340 1/4” 1 1/2” 50 726 8
PVS 30 76 3" 190 750 340 1/4” 1 1/2” 55 968 9



Working Principle

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.
