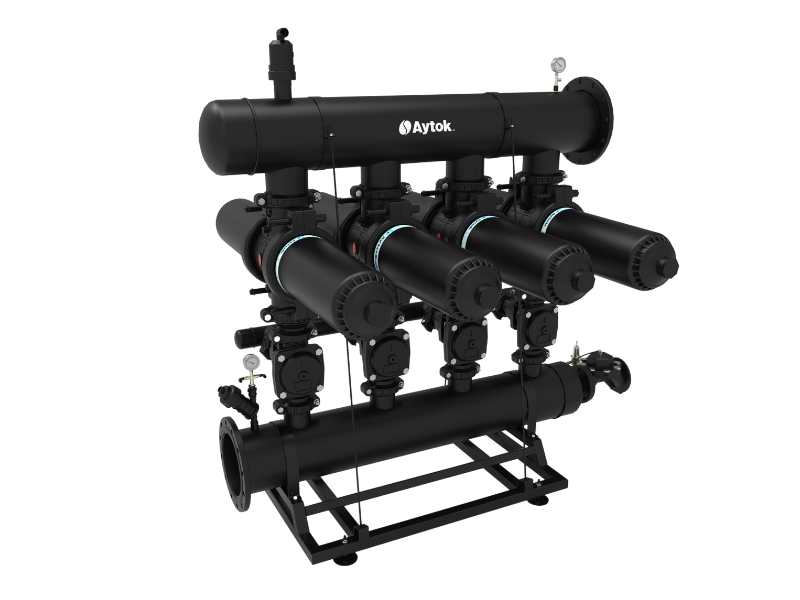

Aytok Plastic Automatic Double Disc Filter System

争取评论头条

Plastic automatic double disc filter system with steel manifold.

Body Material

PA6GFR30

Disc Material

Maximum Working Pressure

8 Bar (116 PSI)

Minimum Working Pressure

2 Bar (29 PSI)

Maximum Working Temperature

60 °C (140 °F)

Backwash Operation Criteria

Time interval or Pressure Differential

Backwash Controlling Unit

Electronic (AC/DC) Control

Filtration Degree

20-50-100-130 micron (µ)

Painting

Epoxy Polyester, Electrostatic Powder Coating

Made in

Turkey

电话报价

制造商: Aytok Filters

商品库存单位（SKU）: A534-644-836-846-1046-1056-1066-1276

Shipping

交货日期 2 to 3 weeks

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Filter Inlet/Outlet Size: *

5"3x4"DOUBLE PLASTIC DISC FILTER SYSTEM
6"4x4"DOUBLE PLASTIC DISC FILTER SYSTEM
8"3x6"DOUBLE PLASTIC DISC FILTER SYSTEM
8”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM
10”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM
10"5x6"DOUBLE PLASTIC DISC FILTER SYSTEM
10"6x6"DOUBLE PLASTIC DISC FILTER SYSTEM
12"7x6"DOUBLE PLASTIC DISC FILTER SYSTEM

数量:

+ -

Aytok Automatic Plastic Double Disc Filter System

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 8 Bar (116 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	SYSTEM	CAPACITY (m³/h)
A534	5"3x4"DOUBLE PLASTIC DISC FILTER SYSTEM	100 - 130
A644	6"4x4"DOUBLE PLASTIC DISC FILTER SYSTEM	130 - 200
A836	8"3x6"DOUBLE PLASTIC DISC FILTER SYSTEM	200 - 280
A846	8”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM	280 - 330
A1046	10”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM	330 - 380
A1056	10"5x6"DOUBLE PLASTIC DISC FILTER SYSTEM	380 - 480
A1066	10"6x6"DOUBLE PLASTIC DISC FILTER SYSTEM	480 - 570
A1276	12"7x6"DOUBLE PLASTIC DISC FILTER SYSTEM	570 -670

Aytok filtration system

Aytok Automatic Plastic Double Disc Filter System

Filter Body Material: PA6GFR30
Disc Material: PP
Maximum Working Pressure: 8 Bar (116 PSI)
Minimum Working Pressure: 2 Bar (29 PSI)
Maximum Working Temperature : 60 °C (140 °F)
Back Flush Operation Criteria: Time and/or Pressure Differential
Back Flush Controlling Unit : Electronic (AC/DC) Control
Filtration Degree: 20-50-100-130 micron (µ)
Manifold Material: Steel painted in red powder coated, steel grade S195T
Manifold Painting Method: Red powder coated
Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code	SYSTEM	CAPACITY (m³/h)
A534	5"3x4"DOUBLE PLASTIC DISC FILTER SYSTEM	100 - 130
A644	6"4x4"DOUBLE PLASTIC DISC FILTER SYSTEM	130 - 200
A836	8"3x6"DOUBLE PLASTIC DISC FILTER SYSTEM	200 - 280
A846	8”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM	280 - 330
A1046	10”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM	330 - 380
A1056	10"5x6"DOUBLE PLASTIC DISC FILTER SYSTEM	380 - 480
A1066	10"6x6"DOUBLE PLASTIC DISC FILTER SYSTEM	480 - 570
A1276	12"7x6"DOUBLE PLASTIC DISC FILTER SYSTEM	570 -670

Aytok filtration system
