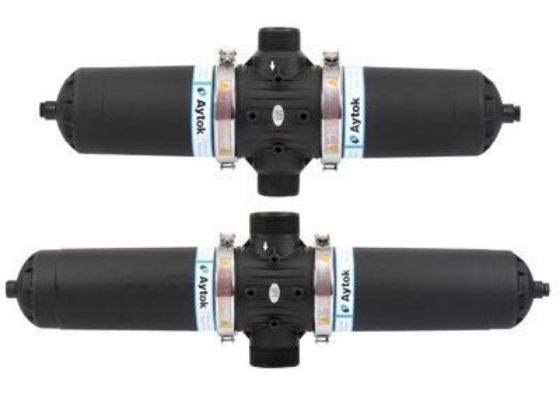

Double Plastic Screen Filters

Body Material : Super Plastic
Cartridge Material : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°
The Filtration Sensitivity : 20-50-100-125 micron
Cartridge : Screen
Made in : Turkey
¥1,485.00
制造商: Aytok Filters
商品库存单位(SKU): DES
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

PLEASE SELECT A SIZE

+ -
Technical Specifications

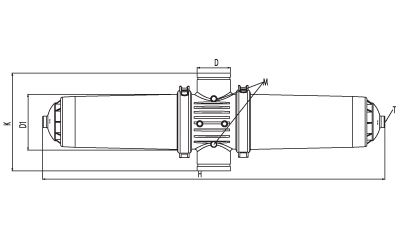

DD Double Plastic disc filter technical
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
  mm inch mm mm mm inch inch m3/h cm2 kg
DE 3 76 3" 190 960 340 1/4” 3/4” 50 1452 9
DES 3 76 3" 190 1200 340 1/4” 3/4” 60 1936 12.6
DE 4 101 4" 190 960 340 1/4” 3/4” 70 1452 8.7
DES 4 101 4" 190 1200 340 1/4” 3/4” 80 1936 10.2





Technical Specifications

DD Double Plastic disc filter technical
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
  mm inch mm mm mm inch inch m3/h cm2 kg
DE 3 76 3" 190 960 340 1/4” 3/4” 50 1452 9
DES 3 76 3" 190 1200 340 1/4” 3/4” 60 1936 12.6
DE 4 101 4" 190 960 340 1/4” 3/4” 70 1452 8.7
DES 4 101 4" 190 1200 340 1/4” 3/4” 80 1936 10.2
