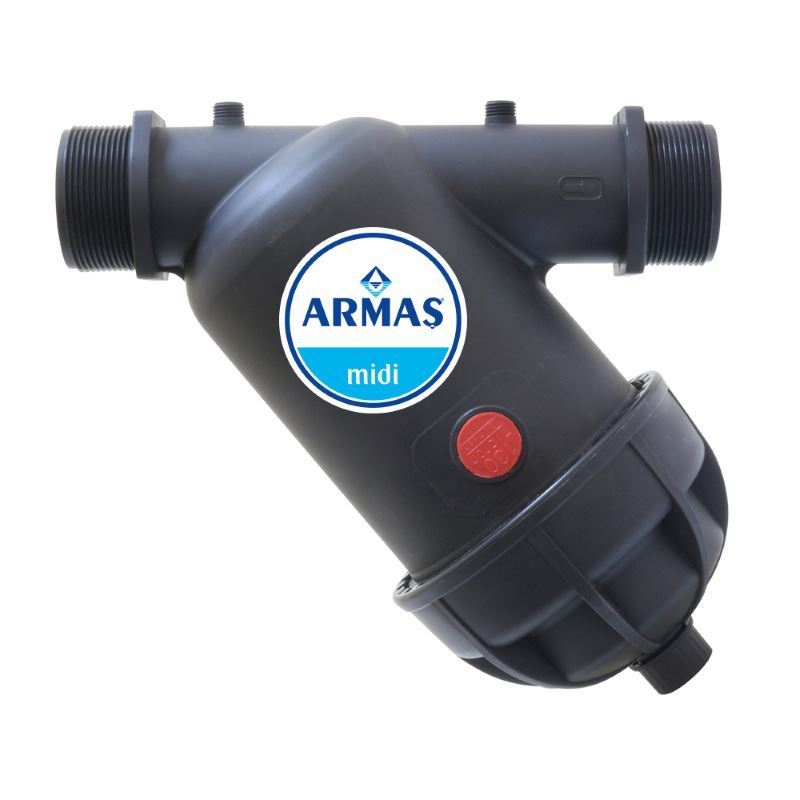

Mini Plastic Screen Filters

SKU: MSF
Availability: In stock
Delivery date: 2-3 business days
Manufacturer: Armas Valves & Filters
Body Material : Plastic
Internal Material : PP – PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60℃
The Filtration Sensitivity : 130 micron
Cartridge : Screen
US $09.00
US $13.00
*

PLEASE SELECT A SIZE

 Download Manual FIlters Catalogue



Technical Specifications

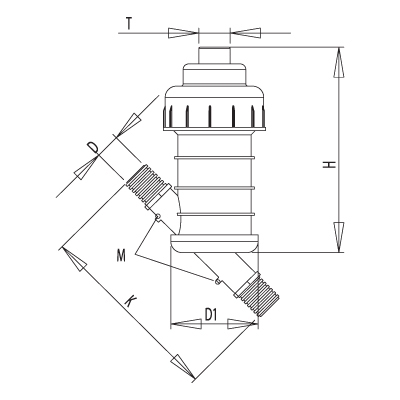

MPE Plastic screen filter technical Product Code D D1 H K M T Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
MSF 3/4 20 3/4" 95 165 340 1/4” 1/2” 3 116 0.25
MSF 1 25 1" 95 165 340 1/4” 1/2” 5 116 0.25
MSF 3 31 1 1/4" 145 250 340 1/4” 1/2” 8 280 0.86
MSF 4 38 1 1/2" 145 250 340 1/4” 1/2” 10 280 0.8
MSF 5 50 2" 145 250 340 1/4” 1/2” 12 280 0.836



Code Size
(Inch)
Filtr. Area
(cm²)
Capacity
(m³/h)

MSF1

¾"

115

3

MSF2

1"

115

5

MSF3

1¼"

275

8

MSF4

1½"

275

10

MSF5

2"

275

12

 Download Manual FIlters Catalogue



Technical Specifications

MPE Plastic screen filter technical Product Code D D1 H K M T Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
MSF 3/4 20 3/4" 95 165 340 1/4” 1/2” 3 116 0.25
MSF 1 25 1" 95 165 340 1/4” 1/2” 5 116 0.25
MSF 3 31 1 1/4" 145 250 340 1/4” 1/2” 8 280 0.86
MSF 4 38 1 1/2" 145 250 340 1/4” 1/2” 10 280 0.8
MSF 5 50 2" 145 250 340 1/4” 1/2” 12 280 0.836



Code Size
(Inch)
Filtr. Area
(cm²)
Capacity
(m³/h)

MSF1

¾"

115

3

MSF2

1"

115

5

MSF3

1¼"

275

8

MSF4

1½"

275

10

MSF5

2"

275

12
