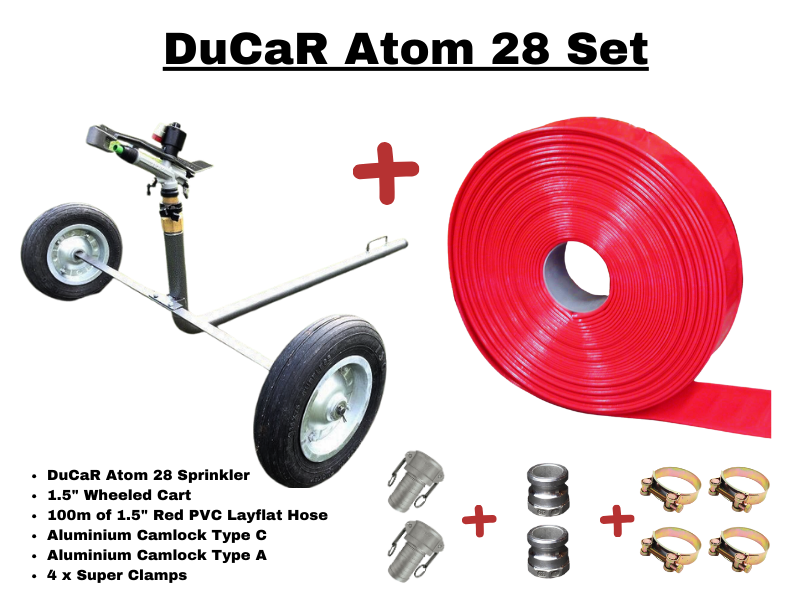

DuCaR Atom 28 SET with 1.5 inch wheeled cart , hose, and fittings

争取评论头条

Portable, double-nozzle, metal & brass irrigation sprinkler with 1.5 inch inlet/outlet wheeled cart.

Water Input

1.5" Female BSP

Working Pressure

29 - 70 psi

Water Flow

86 - 309 l/min

Shooting Radius

19 - 28 m

Free Nozzles

10, 12, 14 mm

Body Angle

30°

Sprayers

Material

Iron Cast, Aluminium & Brass

Made in

Turkey

¥5,337.00

制造商: DuCaR Sprinklers

商品库存单位（SKU）: Atom28SET--COMPLETE

Shipping

交货日期 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

数量:

+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

New Ducar ATOM 28 Metal Sprinkler with 1.5 inch Wheeled Cart is a great set for low water pressure and volume irrigation systems. 86 l/m volume at 29 psi pressure will be enough to start operating the sprinklerwith two nozzles. Heavy duty 1.5 inch inlet/outlet wheeled cart provides great mobility for perfect and easy irrigation.

Some unique benefits of DuCaR ATOM 28 Metal sprinkler:

Comes with 3 different METAL nozzles (10, 12, 14 mm)
2 Trajectories
Runs on pressure range between 91 to 70 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 56m diameter
Lays down 6.5 to 18.8 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	19	62	86,7	6,5	23	1134	0,28	4,6
10	.39	3	44	21	69	107	7,8	28	1385	0,34	4,6
10	.39	4	56	23	75	123	9,1	33	1661	0,41	4,5
10	.39	5	70	23,5	77	236	10,5	46	1734	0,43	5,2
12	.47	2	29	21,0	69	152	9,0	41	1385	0,34	6,7
12	.47	3	44	23,0	75	182	11,2	49	1661	0,41	6,7
12	.47	4	56	25,5	84	211	13,0	57	2042	0,50	6,4
12	.47	5	70	26,5	87	236	14,2	63	2205	0,54	5,2
14	.55	2	29	22,0	72	195	12,0	53	1520	0,38	8,4
14	.55	3	44	23,5	77	239	14,1	64	1734	0,43	8,4
14	.55	4	56	27,0	89	277	16,5	74	2289	0,57	7,4
14	.55	5	70	28,0	92	309	18,8	83	2462	0,61	7,7

Comes with 3 different METAL nozzles (10, 12, 14 mm)
2 Trajectories
Runs on pressure range between 91 to 70 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 56m diameter
Lays down 6.5 to 18.8 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	19	62	86,7	6,5	23	1134	0,28	4,6
10	.39	3	44	21	69	107	7,8	28	1385	0,34	4,6
10	.39	4	56	23	75	123	9,1	33	1661	0,41	4,5
10	.39	5	70	23,5	77	236	10,5	46	1734	0,43	5,2
12	.47	2	29	21,0	69	152	9,0	41	1385	0,34	6,7
12	.47	3	44	23,0	75	182	11,2	49	1661	0,41	6,7
12	.47	4	56	25,5	84	211	13,0	57	2042	0,50	6,4
12	.47	5	70	26,5	87	236	14,2	63	2205	0,54	5,2
14	.55	2	29	22,0	72	195	12,0	53	1520	0,38	8,4
14	.55	3	44	23,5	77	239	14,1	64	1734	0,43	8,4
14	.55	4	56	27,0	89	277	16,5	74	2289	0,57	7,4
14	.55	5	70	28,0	92	309	18,8	83	2462	0,61	7,7

商品规格

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	73 psi (5 bar)
Minimum Required Water Flow	85 l/min
Maximum Water Flow	300 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	26 - 30 m
Box Dimension	25x40x6 cm
Nozzles	10, 12, 14 mm
Weight	1.6
