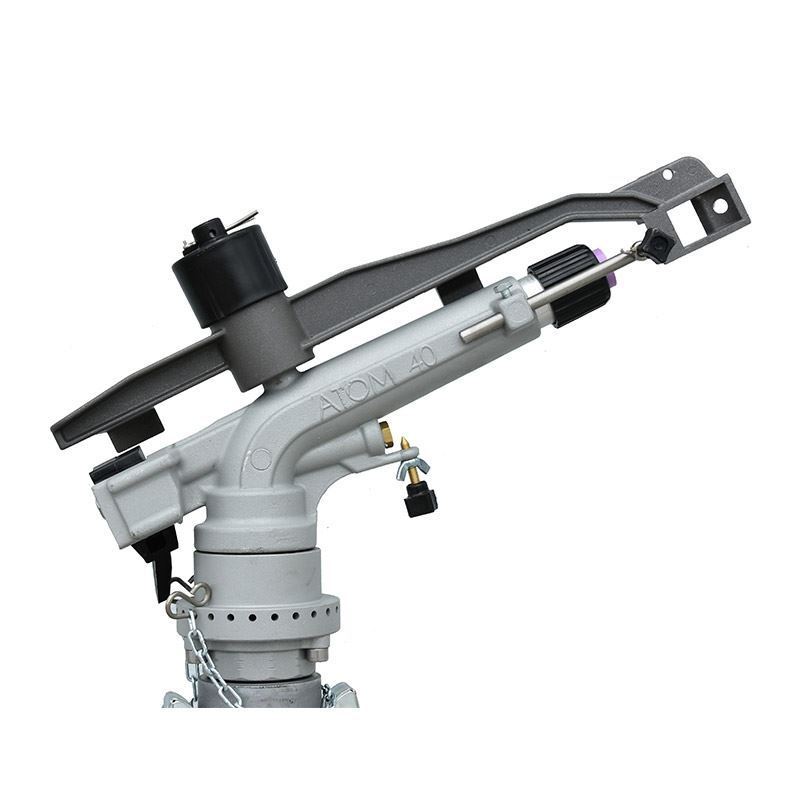

DuCaR Atom 40

High Volume - Long Throw (40 m radius) - Unique Water Distribution Impact Sprinkler. Perfect for agricultural irrigation and industrial applications!


Water Input
:
2" Female BSP

Working Pressure
:
29 - 70 psi

Water Flow
:
195 - 532 l/min

Shooting Radius
:
22 - 39 m

Nozzles
:
14, 16, 18, 20 mm

Body Angle
:
24°

Weight
:
2.5 kg

Operation
:
Full & Part Circle

Material
:
Cast-Iron, Aluminium, Brass

Made in
:
Turkey
¥1,826.00
制造商: DuCaR Sprinklers
商品库存单位(SKU): Atom40
交货日期 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

DuCar Atom 40 High Volume - Long Throw Impact sprinkler!

We guarantee 100% satisfaction!

This highly efficient sprinkler rotating in full or part circle, is an impact sprinkler operating at medium pressure (2.0 – 5 bar). Thanks to replaceable sprinkler nozzles and adjustable breaker, it ensures you to irrigate your field with minimum water and excellent uniform water distribution.

It is excellent for agricultural, mining, dust control, stationary and portable systems. This model has aluminium main body with rotating mechanism of lower body made of brass, Teflon and stainless steel. It is equipped with specially designed and adjustable breaker. Lower body is specially designed for sandy water. Also its specially designed breaker has licence certificate. It has a second nozzle outlet that can be plugged at low pressure.

With its specially designed low body angle made of Teflon and brass, this product may also operate with waste water.



Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch kg/cm2 lbs/inch m feet l/min m3/h G.P.M m2 acre mm/h
14 0.47 2 29 22,0 72 195 11.7 52 1520 0.38 7.7
14 0.47 3 44 27.0 89 239 14.3 63 2289 0.57 6.2
14 0.47 4 56 30.0 98 277 16.6 73 2826 0.70 5.9
14 0.47 5 70 33.0 108 309 18.5 81 3419 0.84 5.4
16 0.55 2 29 23.0 75 247 14.8 65 1661 0.41 8.9
16 0.55 3 44 29.0 95 303 18.2 80 2641 0.65 6.9
16 0.55 4 56 33.0 108 351 21.0 92 3419 0.84 6.1
16 0.55 5 70 35.0 115 391 23.4 103 3847 0.95 6.1
18 0.62 2 29 22.0 72 309 18.5 81 1520 0.38 12.2
18 0.62 3 44 30.0 98 378 22.7 100 2826 0.70 8.0
18 0.62 4 56 33.0 108 436 26.2 115 3419 0.84 7.7
18 0.62 5 70 36.0 118 487 29.2 129 4069 1.01 7.2
20 0.70 3 44 31.0 102 376 22.5 99 3018 0.75 7.5
20 0.70 4 56 35.0 115 460 27.6 122 3847 0.95 7.2
20 0.70 5 70 40.0 128 532 31.9 140 4776 1.18 6.7



DuCar Atom 40 High Volume - Long Throw Impact sprinkler!

We guarantee 100% satisfaction!

This highly efficient sprinkler rotating in full or part circle, is an impact sprinkler operating at medium pressure (2.0 – 5 bar). Thanks to replaceable sprinkler nozzles and adjustable breaker, it ensures you to irrigate your field with minimum water and excellent uniform water distribution.

It is excellent for agricultural, mining, dust control, stationary and portable systems. This model has aluminium main body with rotating mechanism of lower body made of brass, Teflon and stainless steel. It is equipped with specially designed and adjustable breaker. Lower body is specially designed for sandy water. Also its specially designed breaker has licence certificate. It has a second nozzle outlet that can be plugged at low pressure.

With its specially designed low body angle made of Teflon and brass, this product may also operate with waste water.



Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch kg/cm2 lbs/inch m feet l/min m3/h G.P.M m2 acre mm/h
14 0.47 2 29 22,0 72 195 11.7 52 1520 0.38 7.7
14 0.47 3 44 27.0 89 239 14.3 63 2289 0.57 6.2
14 0.47 4 56 30.0 98 277 16.6 73 2826 0.70 5.9
14 0.47 5 70 33.0 108 309 18.5 81 3419 0.84 5.4
16 0.55 2 29 23.0 75 247 14.8 65 1661 0.41 8.9
16 0.55 3 44 29.0 95 303 18.2 80 2641 0.65 6.9
16 0.55 4 56 33.0 108 351 21.0 92 3419 0.84 6.1
16 0.55 5 70 35.0 115 391 23.4 103 3847 0.95 6.1
18 0.62 2 29 22.0 72 309 18.5 81 1520 0.38 12.2
18 0.62 3 44 30.0 98 378 22.7 100 2826 0.70 8.0
18 0.62 4 56 33.0 108 436 26.2 115 3419 0.84 7.7
18 0.62 5 70 36.0 118 487 29.2 129 4069 1.01 7.2
20 0.70 3 44 31.0 102 376 22.5 99 3018 0.75 7.5
20 0.70 4 56 35.0 115 460 27.6 122 3847 0.95 7.2
20 0.70 5 70 40.0 128 532 31.9 140 4776 1.18 6.7



商品规格
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 73 psi (5 bar)
Minimum Required Water Flow 185 l/min
Maximum Water Flow 550 l/min
Minimum Shooting Range 21 - 25 m
Maximum Shooting Range 30 - 40 m
Nozzles 14, 16, 18, 20, 22, 24 mm
