Double Plastic Vacuum Screen Filters

Body Material : Super Plastic
Cartridge Material : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°
The Filtration Sensitivity : Optional 20-50-100-125 micron
Cartridge : Screen
¥3,061.00
制造商: Aytok Filters
商品库存单位(SKU): DDVS
交货日期 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

PLEASE SELECT A SIZE

+ -
Technical Specifications

PV Double Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DV 40 101 4" 190 1300 350 1/4” 1 1/2” 60 1452 15
DVS 40 101 4" 190 1300 350 1/4” 1 1/2” 80 1936 16
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9

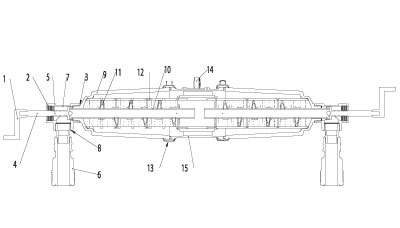

Working Principle

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.

Technical Specifications

PV Double Plastic Vacuum Screen Filter
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
DV 40 101 4" 190 1300 350 1/4” 1 1/2” 60 1452 15
DVS 40 101 4" 190 1300 350 1/4” 1 1/2” 80 1936 16
PV 25 63 2 1/2" 190 600 340 1/4” 1 1/2” 40 726 8
PVS 25 63 2 1/2" 190 750 340 1/4” 1 1/2” 45 968 9



Working Principle

When pressure differences between manometers are 1 bar (14), open the valve (6), firstly turn right six tour and then (1) six tour left manually. After that close the valve and check the manometers, if manometers show the same pressure, cleaning process is done.

P.S.:
The pressure in output must not be lower than 1 bar during the washing.
